YCM NTC-2000LSY

Q: How much does the YCM NTC-2000LSY cost?

The price estimate for the YCM NTC-2000LSY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-ntc-2000lsy#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

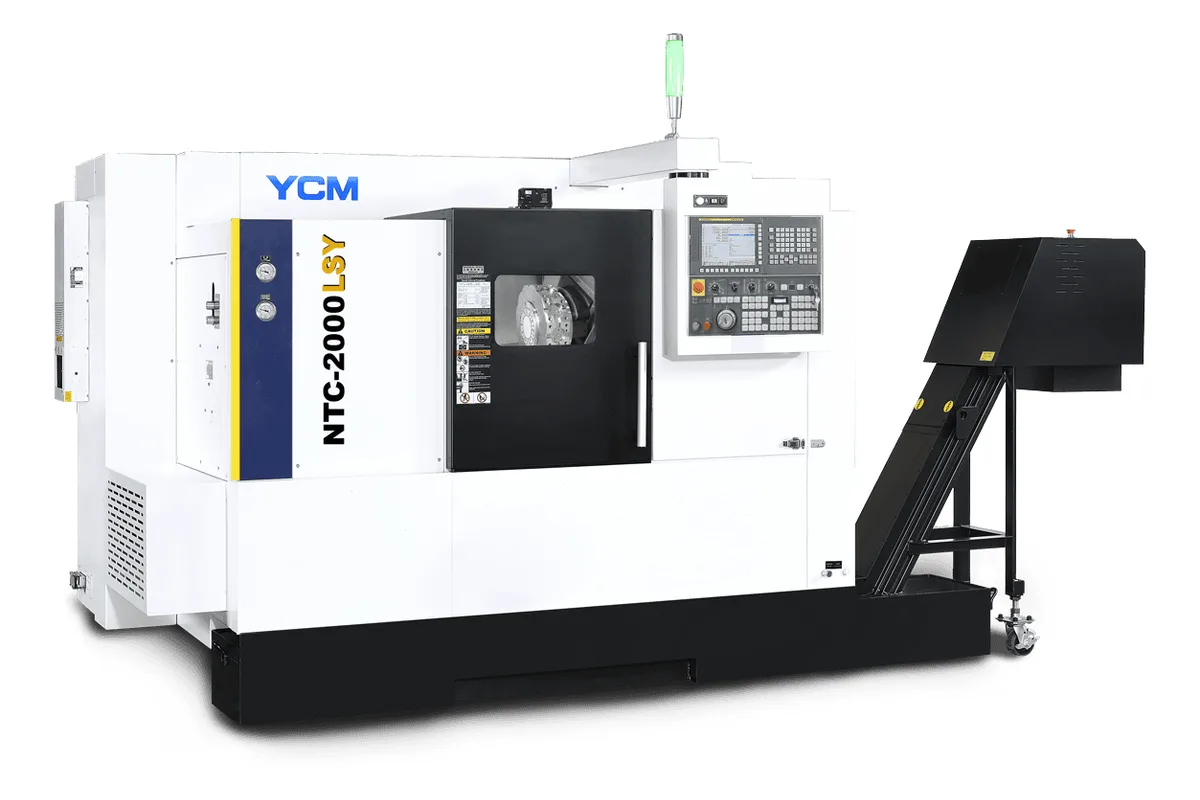

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

5,000 rpm

Spindle Power

18.5/22/30 kW (25/30/40 HP)

Max Turn Length

570 mm (22.44 in)

max turning diameter

ø310 mm (ø12.2 in)

chuck size

spindle nose

A2-6

How much does the YCM NTC-2000LSY cost?

Price estimate

Uncertain

We do not have a price for the YCM NTC-2000LSY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Sub-spindle plus Y axis on a fast 8" lathe: that is the YCM NTC-2000LSY. The main spindle turns 5,000 rpm on an A2-6 nose, the sub-spindle 6,000 rpm on an A2-5 nose with a 6" chuck, and one 12-station BMT55 power turret works on both.

The sub-spindle rides on a B axis with 650 mm (25.59 in) of travel and a 20 m/min (787.40 ipm) rapid. It comes forward, grips the part while both spindles turn in step, takes it after cut-off and presents the back face to the turret. Its motor is rated 7.5/11 kW (10/15 HP), with a ø55 mm (ø2.17 in) bore and ø45 mm (ø1.77 in) through the draw bar, so second-side work can include real turning cuts and not just a facing pass.

On the main side the motor row gives 18.5/22/30 kW (25/30/40 HP). Turning capacity is ø310 mm (ø12.2 in) by 570 mm (22.44 in), with ø66 mm (ø2.6 in) through the draw bar for bar-fed production. The Y axis covers 90 mm, from +50 to -40, and live tools run at 100~4,000 rpm with 3.57 kgf-m (25.82 lb-ft).

Axis speed keeps cycle times short: 30 m/min (1,181.10 ipm) in X and 36 m/min (1,417.32 ipm) in Z. The slides are boxways with wear-resistant pads on a one-piece 30° slant bed. With no tailstock in the table, long slender shafts are better suited to the NTC-2000LY. This model weighs 6,180 kg (13,624 lb).

Full Specifications

Parameter	Value
Max Turning Diameter	ø310 mm (ø12.2 in)
Max Turning Length	570 mm (22.44 in)
Chuck Size	8"
Spindle Nose	A2-6
Spindle Bore	ø80 mm (ø3.15 in)
Hole Through Draw Bar	ø66 mm (ø2.6 in)
Max Spindle Speed	5,000 rpm
Sub Spindle Chuck Size	6"
Sub Spindle Nose	A2-5
Sub Spindle Bore	ø55 mm (ø2.17 in)
Sub Spindle Hole Through Draw Bar	ø45 mm (ø1.77 in)
Sub Spindle Speed Max	6,000 rpm
X Axis Travel	160 (155+ 5) mm
Z Axis Travel	570 mm (22.44 in)
Y Axis Travel	90 (+ 50/-40) mm
B Axis Travel	650 mm (25.59 in)
X Axis Rapid Traverse	30 m/min (1,181.10 ipm)
X Axis Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Z Axis Rapid Traverse	36 m/min (1,417.32 ipm)
Z Axis Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Y Axis Rapid Traverse	10 m/min (393.70 ipm)
Y Axis Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
B Axis Rapid Traverse	20 m/min (787.40 ipm)
B Axis Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Spindle Motor Power	18.5/22/30 kW (25/30/40 HP)
Sub Spindle Power	7.5/11 kW (10/15 HP)
Turret Type	Radial Power Turret (Servo Rotation, Hydraulic Clamping)
Turret Stations	12 stations (BMT55)
Live Tool Speed	100~4,000 rpm
Live Tool Torque	3.57 kgf-m (25.82 lb-ft)
Swing Over Turret	ø615 mm (ø24.21 in)
Machine Weight	6,180 kg (13,624 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Sub-spindle with a 6" chuck, 6,000 rpm and a 7.5/11 kW (10/15 HP) motor
Y axis of 90 mm (+50/-40) for off-centre milling
12-station BMT55 radial power turret with live tools to 4,000 rpm
Rapids of 30 m/min (1,181.10 ipm) in X and 36 m/min (1,417.32 ipm) in Z
Main spindle motor of 18.5/22/30 kW (25/30/40 HP)

Limitations

No tailstock is listed for this model
One turret serves both spindles, so front and back operations run in sequence
Sub-spindle draw bar hole is ø45 mm (ø1.77 in)
Y travel is 40 mm below centre

Best For

Bar-fed parts up to ø66 mm (ø2.6 in) completed on both ends Turn-mill components with off-centre features on front and back Lights-out production where parts are transferred without an operator

Frequently Asked Questions

01 What are the sub-spindle specifications?

A 6" chuck on an A2-5 nose, 6,000 rpm and a 7.5/11 kW (10/15 HP) motor. The hole through the sub-spindle is ø55 mm (ø2.17 in) and through its draw bar ø45 mm (ø1.77 in). It travels 650 mm (25.59 in) on the B axis.

02 What is the turning capacity of the NTC-2000LSY?

Maximum turning diameter is ø310 mm (ø12.2 in) and maximum turning length is 570 mm (22.44 in). Swing over the turret is ø615 mm (ø24.21 in). The main spindle has an 8" chuck and a ø80 mm (ø3.15 in) bore.

03 How does it compare with the NT-2500SY?

Both have a sub-spindle and Y axis. The NT-2500SY is the larger machine, turning ø350 mm (ø13.78 in) over 686 mm (27.01 in) at 3,500 rpm and weighing 7,450 kg (16,424 lb). The NTC-2000LSY turns ø310 mm (ø12.2 in) at 5,000 rpm and weighs 6,180 kg (13,624 lb).

04 What live tool performance is listed?

Live tool motor speed is 100~4,000 rpm and torque is 3.57 kgf-m (25.82 lb-ft). The turret is a radial power turret with servo rotation, hydraulic clamping and 12 BMT55 stations.
