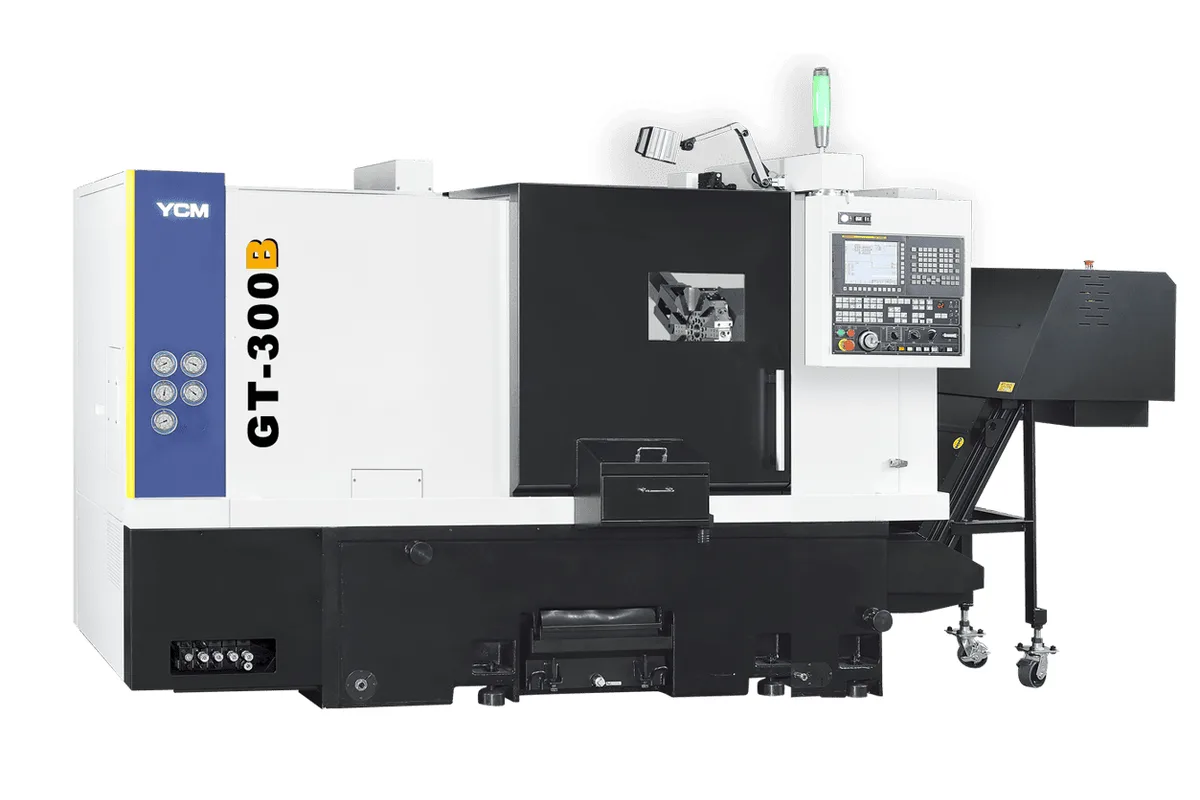

YCM GT-300B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle nose
How much does the YCM GT-300B cost?
Price estimate
We do not have a price for the YCM GT-300B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM GT-300B is the big-bore two-axis lathe of the GT series. Its spindle has a ø105 mm (ø4.13 in) through hole and a ø91 mm (ø3.58 in) draw bar hole, and it turns parts up to ø440 mm (ø17.32 in) in diameter and 700 mm (27.56 in) long at up to 3,000 rpm.
A through hole that size opens the machine to pipe, tube and large bar, as well as to chucked work. The chuck size row reads 12 and the nose is A2-8. The motor is listed at 11/18.5 kW in the low range and 15/18.5 kW in the high range, so the 18.5 kW peak is there at both ends of the speed range.
YCM fits an 8-station servo turret here, fewer stations than on the smaller models. Fewer, more widely spaced stations leave room for large boring bars and big-shank holders without neighbouring tools fouling a ø440 mm part. Shops that want more tools than that should look at the GT-300MA with its 12 stations.
Thermal measures are listed in detail for the GT-300 machines: a symmetrical headstock with ventilation, exhaust fans, a spindle motor placed outside the base, a piston pump with a radiator for the hydraulic oil and an isolated coolant tank. The tailstock quill has an MT-5 taper and 605 mm (23.82 in) of stroke. Rapids are 20 m/min (787 ipm) in X and 24 m/min (945 ipm) in Z. Machine weight is 6,950 kg (15,322 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | ø440 mm (ø17.32 in) |
| Max Turning Length | 700 mm (27.56 in) |
| Chuck Size | 12 |
| Spindle Nose | A2-8 |
| Spindle Bore | ø105 mm (ø4.13 in) |
| Hole Through Draw Bar | ø91 mm (ø3.58 in) |
| Max Spindle Speed | 3,000 rpm |
| X Axis Travel | 245 (220+25) mm |
| Z Axis Travel | 700 mm (27.56 in) |
| X Axis Rapid Traverse | 20 m/min (787 ipm) |
| X Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Z Axis Rapid Traverse | 24 m/min (945 ipm) |
| Z Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Spindle Motor Power | (L)11/18.5 (H)15/18.5 kW |
| Turret Type | Servo Turret (Hydraulic Clamping) |
| Turret Stations | 8 stations |
| Swing Over Turret | ø610 mm (ø24.02 in) |
| Tailstock Quill Taper | MT-5 |
| Tailstock Quill Stroke | 605 mm (23.82 in) |
| Machine Weight | 6,950 kg (15,322 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- ø105 mm (ø4.13 in) spindle bore and ø91 mm (ø3.58 in) draw bar hole
- Maximum turning diameter of ø440 mm (ø17.32 in)
- 18.5 kW peak in both motor ranges
- 605 mm (23.82 in) tailstock quill stroke with an MT-5 taper
- Spindle motor outside the base and isolated coolant tank to limit heat
Limitations
- The turret has 8 stations
- Top spindle speed is 3,000 rpm
- No live tooling on this model
- The chuck size row gives 12 without a unit
Best For
Frequently Asked Questions
01
The hole through the draw bar is ø91 mm (ø3.58 in) and the hole through the spindle is ø105 mm (ø4.13 in). The spindle nose is A2-8, and a bar feeder system is listed as an option.
02
Maximum turning diameter is ø440 mm (ø17.32 in) and maximum turning length is 700 mm (27.56 in). Swing over the turret is ø610 mm (ø24.02 in), and Z travel is 700 mm (27.56 in).
03
YCM does not give a reason. The table lists 8 stations for the GT-300B and 12 for the GT-300MA. On a large-diameter lathe, fewer stations give each tool more clearance from the workpiece and from its neighbours.
04
With a symmetrical, ventilated headstock, exhaust fans on the headstock, a spindle motor that sits outside the machine base, a piston pump and radiation system for the hydraulic oil, and isolated coolant tanks.
