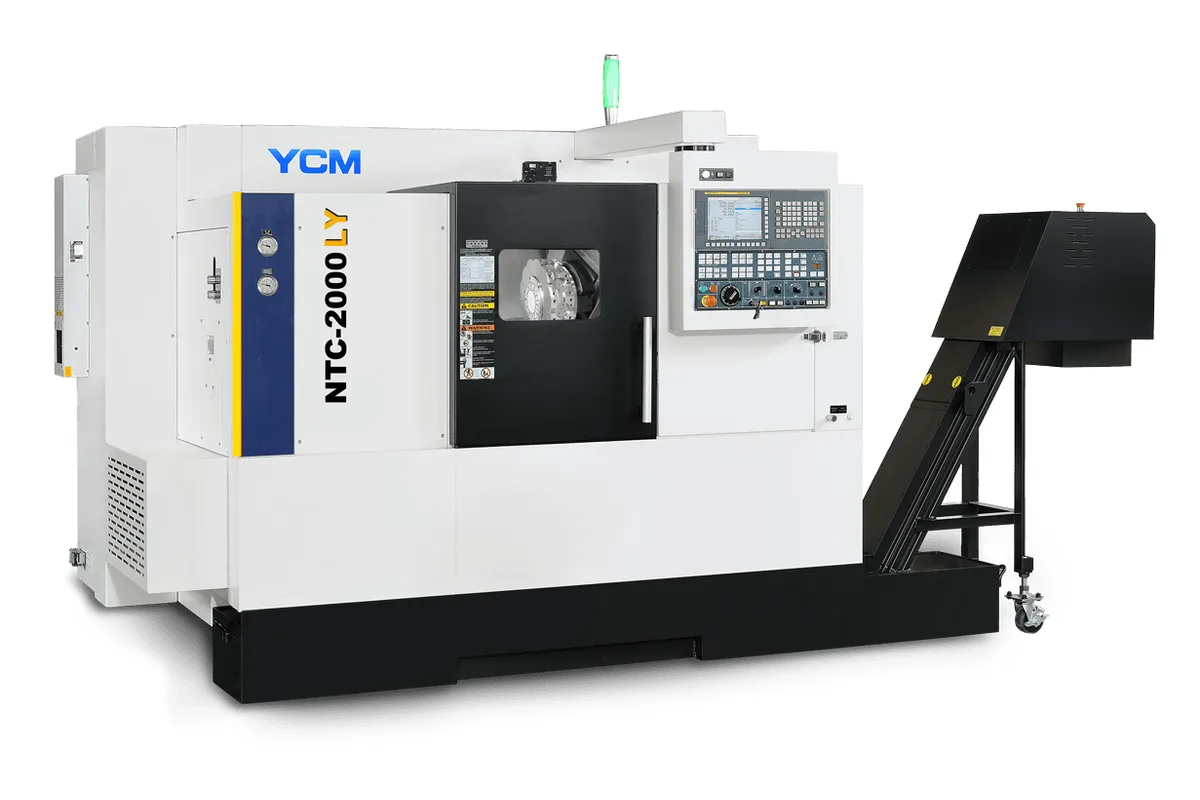

YCM NTC-2000LY
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle nose
How much does the YCM NTC-2000LY cost?
Price estimate
We do not have a price for the YCM NTC-2000LY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM NTC-2000LY is a Y-axis turning center with an 8" chuck, a 5,000 rpm spindle and a BMT55 live-tool turret. It turns parts up to ø320 mm (ø12.6 in) in diameter and 570 mm (22.44 in) in length, and its Y axis is listed as 90 mm, split 50 above and 40 below centre.
It is the single-spindle, tailstock version of the NTC-2000 pair. The sibling NTC-2000LSY replaces the tailstock with a sub-spindle; this model keeps an MT-4 quill for shaft work. YCM states that the standard tailstock is manual, with programmable and servo tailstocks available. The quill stroke row prints two values, 240/570 mm (9.45/22.44 in), and the weight row does the same, 5,020/5,420 kg (11,067/11,949 lb), without labelling the variants.
Speed is a feature of the design. Rapids are 30 m/min (1,181 ipm) in X and 36 m/min (1,417 ipm) in Z, quicker than YCM's GT lathes, although the X and Z slides are boxways with wear-resistant pads. The spindle motor row gives 18.5/22/30 kW (25/30/40 HP), strong for an 8" machine.
The radial power turret has 12 stations, servo rotation and hydraulic clamping. Live tools run from 100 to 4,000 rpm with 3.57 kgf-m (25.82 lb-ft). YCM gives the spindle indexing accuracy for milling as 0.001°. The bed is a one-piece 30° slant casting, the spindle bore is ø80 mm (ø3.15 in) and the draw bar hole ø66 mm (ø2.6 in).
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | ø320 mm (ø12.6 in) |
| Max Turning Length | 570 mm (22.44 in) |
| Chuck Size | 8" |
| Spindle Nose | A2-6 |
| Spindle Bore | ø80 mm (ø3.15 in) |
| Hole Through Draw Bar | ø66 mm (ø2.6 in) |
| Max Spindle Speed | 5,000 rpm |
| X Axis Travel | 175 (160+15) mm |
| Z Axis Travel | 570 mm (22.44 in) |
| Y Axis Travel | 90 (50/-40) mm |
| X Axis Rapid Traverse | 30 m/min (1,181 ipm) |
| X Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Z Axis Rapid Traverse | 36 m/min (1,417 ipm) |
| Z Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Y Axis Rapid Traverse | 10 m/min (394 ipm) |
| Y Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Spindle Motor Power | 18.5/22/30 kW (25/30/40 HP) |
| Turret Type | Radial Power Turret (Servo Rotation, Hydraulic Clamping) |
| Turret Stations | 12 stations (BMT55) |
| Live Tool Speed | 100~4,000 rpm |
| Live Tool Torque | 3.57 kgf-m (25.82 lb-ft) |
| Swing Over Turret | ø615 mm (ø24.21 in) |
| Tailstock Quill Taper | MT-4 |
| Tailstock Quill Stroke | 240/570 mm (9.45/22.44 in) |
| Machine Weight | 5,020/5,420 kg (11,067/11,949 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Y axis of 90 mm (50/-40) with a 12-station BMT55 power turret
- Rapids of 30 m/min (1,181 ipm) in X and 36 m/min (1,417 ipm) in Z
- Spindle motor of 18.5/22/30 kW (25/30/40 HP) at up to 5,000 rpm
- Live tools at 100~4,000 rpm with 3.57 kgf-m (25.82 lb-ft)
- Tailstock retained, with programmable and servo versions available
Limitations
- The standard tailstock is manual
- No sub-spindle; back-end work needs a second operation or the NTC-2000LSY
- Y travel below centre is 40 mm
- Two unlabelled values are printed for quill stroke and machine weight
Best For
Frequently Asked Questions
01
The table lists 90 mm, given as 50/-40. Y rapid traverse is 10 m/min (394 ipm) and Y cutting feed is 1~10,000 mm/min (0.04~394 ipm). YCM describes an orthogonal Y axis integrated with the live tooling turret.
02
A radial power turret with servo rotation and hydraulic clamping, 12 stations and BMT55 tooling. Live tool speed is 100~4,000 rpm and torque is 3.57 kgf-m (25.82 lb-ft).
03
The NTC-2000LSY adds a sub-spindle with a 6" chuck, 6,000 rpm and a 7.5/11 kW (10/15 HP) motor on a B axis with 650 mm (25.59 in) of travel, and weighs 6,180 kg (13,624 lb). The NTC-2000LY has a tailstock instead.
04
The spindle runs to 5,000 rpm on an A2-6 nose with an 8" chuck. The motor row reads 18.5/22/30 kW (25/30/40 HP). The spindle bore is ø80 mm (ø3.15 in) and the hole through the draw bar is ø66 mm (ø2.6 in).
