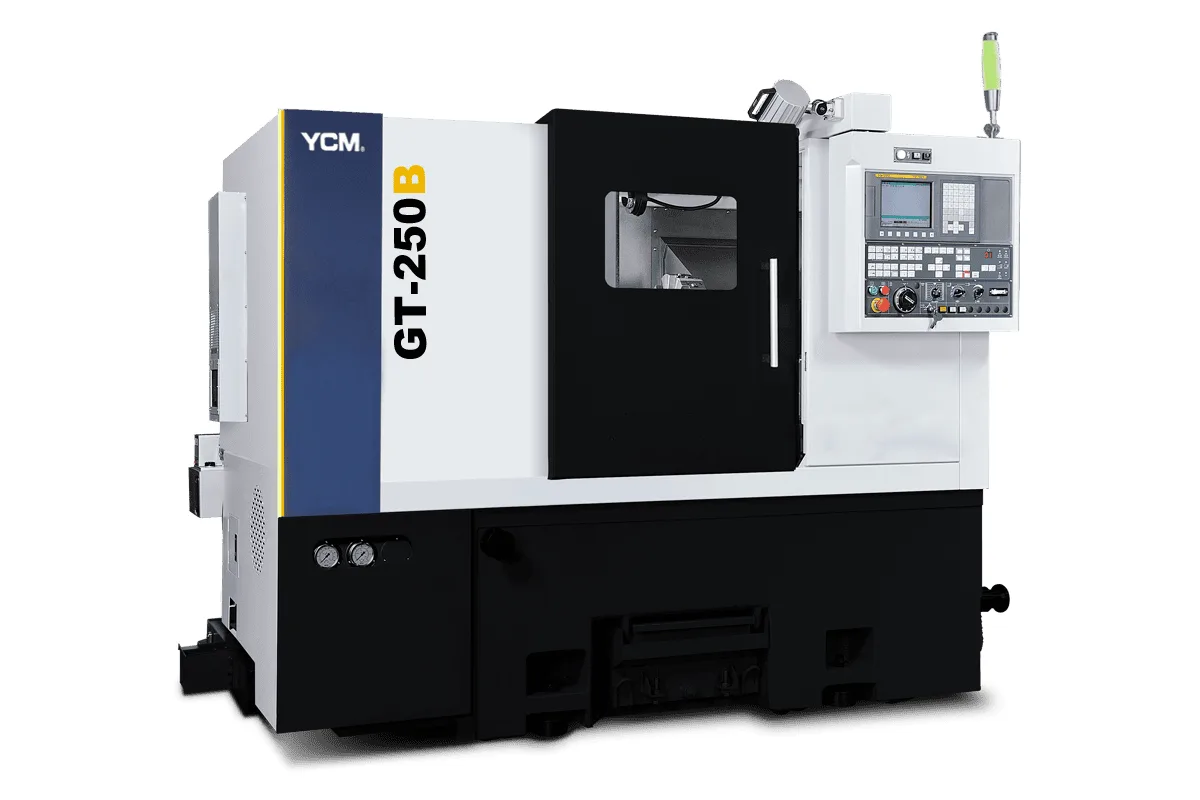

YCM GT-250B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle nose
How much does the YCM GT-250B cost?
Price estimate
We do not have a price for the YCM GT-250B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM GT-250B is a 10" chuck turning center for mid-size shaft and flange work: ø350 mm (ø13.78 in) maximum turning diameter, 515 mm (20.28 in) between the chuck and the end of the cut, and a 3,500 rpm spindle on an A2-8 nose.
The spindle is the strong point. It has a ø88 mm (ø3.46 in) bore and runs in oversize dual roller bearings at both the front and the rear, a bearing arrangement chosen for stiffness under heavy radial load. The motor is listed at 7.5/15 kW in the low range and 11/15 kW in the high range, so 15 kW is available in both. Combined with box ways under the slides, the machine is equipped to take deep roughing cuts on forgings and bar.
Bar capacity through the draw bar is printed as ø75 mm with ø78 mm in brackets; the page does not say which draw tube the larger figure belongs to. The turret is a 10-station servo type with hydraulic clamping. Rapids are 20 m/min (787 ipm) in X and 24 m/min (945 ipm) in Z, a step slower than the GT-200 machines, as expected from heavier slides.
The tailstock quill travels 415 mm (16.34 in) and has an MT-5 taper, with MT-4 in brackets, and a live quill is offered for high-speed production. The machine weighs 6,200 kg (13,669 lb). Options include a bar feeder, parts catcher and automatic tool length measurement.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | ø350 mm (ø13.78 in) |
| Max Turning Length | 515 mm (20.28 in) |
| Chuck Size | 10" |
| Spindle Nose | A2-8 |
| Spindle Bore | ø88 mm (ø3.46 in) |
| Hole Through Draw Bar | ø75 (ø78) mm |
| Max Spindle Speed | 3,500 rpm |
| X Axis Travel | 195 (175 + 20) mm |
| Z Axis Travel | 515 mm (20.28 in) |
| X Axis Rapid Traverse | 20 m/min (787 ipm) |
| X Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~393.7 ipm) |
| Z Axis Rapid Traverse | 24 m/min (945 ipm) |
| Z Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~393.7 ipm) |
| Spindle Motor Power | (L) 7.5/15, (H) 11/15 kW |
| Turret Type | Servo Turret (Hydraulic Clamping) |
| Turret Stations | 10 stations |
| Swing Over Turret | ø585 mm (ø23.03 in) |
| Tailstock Quill Taper | MT-5 (MT-4) |
| Tailstock Quill Stroke | 415 mm (16.34 in) |
| Machine Weight | 6,200 kg (13,669 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- ø88 mm (ø3.46 in) spindle bore on an A2-8 nose
- Oversize dual roller spindle bearings front and rear
- 15 kW available in both motor ranges
- Box way construction with a 415 mm (16.34 in) tailstock quill stroke
- Optional live quill for high-speed production
Limitations
- Top spindle speed is 3,500 rpm
- No driven tools; the GT-250MA is the live-tool version
- The turret has 10 stations
- The two draw bar figures, ø75 mm and ø78 mm, are not explained on the page
Best For
Frequently Asked Questions
01
Up to ø350 mm (ø13.78 in) in diameter and 515 mm (20.28 in) in length. Swing over the turret is ø585 mm (ø23.03 in). The chuck is 10" and the spindle nose is A2-8.
02
The hole through the spindle is ø88 mm (ø3.46 in). The hole through the draw bar is listed as ø75 mm, with ø78 mm in brackets. Ask YCM which chuck and draw tube combination gives the larger figure.
03
The main spindle motor is listed as (L) 7.5/15 and (H) 11/15 kW, and the top speed is 3,500 rpm. YCM describes the motor as a high torque type for roughing tough material at low spindle speed.
04
The GT-200B has an 8" chuck, ø260 mm (ø10.24 in) turning diameter, 345 mm (13.58 in) turning length and weighs 4,210 kg (9,281 lb). The GT-250B has a 10" chuck, ø350 mm (ø13.78 in), 515 mm (20.28 in) and 6,200 kg (13,669 lb).
