Kent CNC KTM-3VKF

Specs verified 2026-10-03 · kentusa.com Updated 2026-10-03

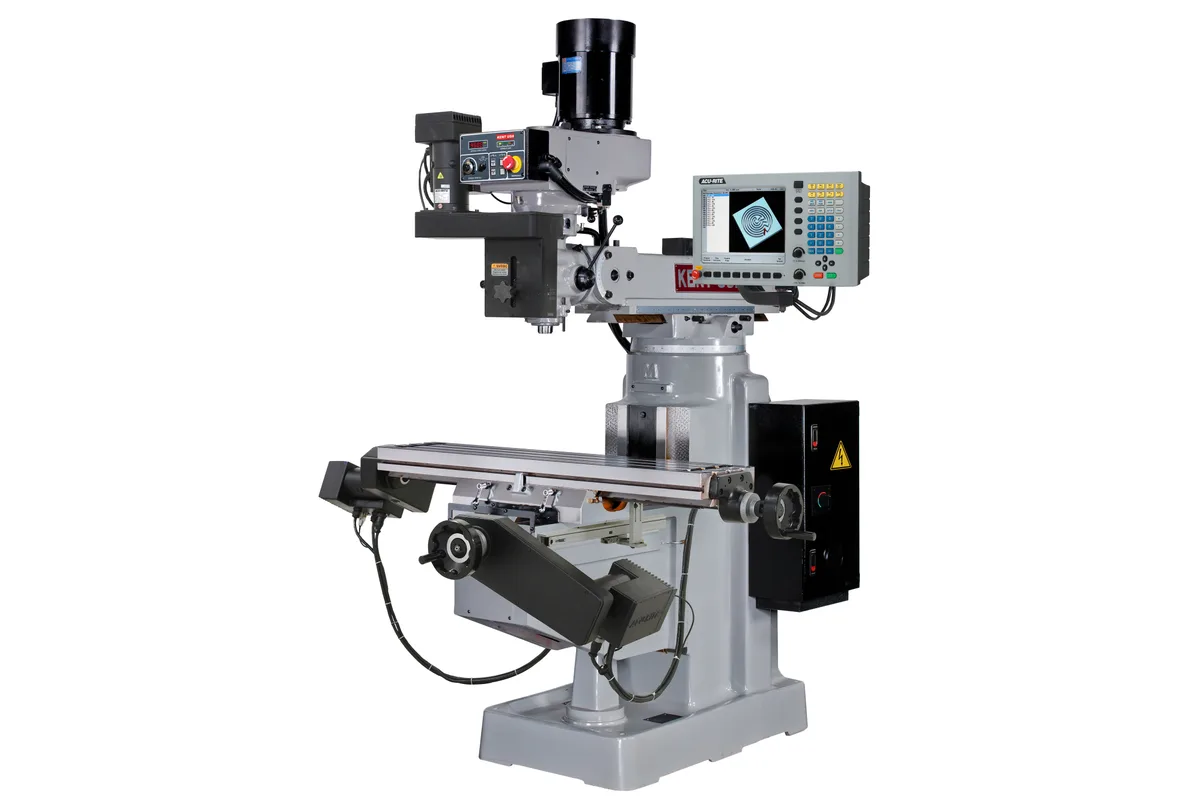

Image: kentusa.com, Kent CNC

Key Specifications

Max Spindle

4,500 rpm

Spindle Taper

R-8

Table Size

10 x 50 in (254 x 1,270 mm); opt. 10 x 54 in (254 x 1,372 mm)

Spindle Power

3 hp (2.2 kW)

x axis travel

32 in (813 mm)

y axis travel

14 in (356 mm)

How much does the Kent CNC KTM-3VKF cost?

Price estimate

Uncertain

We do not have a price for the Kent CNC KTM-3VKF that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Kent CNC KTM-3VKF is a CNC knee mill with the Acu-Rite MillPwr G2 control: 32 in (813 mm) of X travel, 14 in (356 mm) of Y, 15 in (381 mm) of knee travel in Z and a 3 hp (2.2 kW) R-8 spindle. It can be wired for a single-phase supply as well as three-phase.

That supply detail decides a lot of purchases. The table lists 220 V 3-phase at 10 A or 220 V 1-phase at 15 A, with 440 V at 5 A as an option. A garage shop, a school lab or a maintenance department without three-phase power can install it without a converter.

The frame is the familiar ram-and-knee layout. Ram travel is 22 in (559 mm), which moves the spindle center from 5 to 27 in (127 to 686 mm) away from the column, so the head can reach over a wide part or be pulled in close for rigidity. The quill is 3.375 in (86 mm) in diameter with 4 in (102 mm) of travel and feeds of 0.0015, 0.003 and 0.006 in/rev. The standard table is 10 x 50 in (254 x 1,270 mm); a 10 x 54 in (254 x 1,372 mm) table is optional.

The head uses an AC frequency drive, with a speed range listed as 60-550-4,500 rpm. Rated capacities are modest: 0.75 in (19 mm) for manual drilling, 0.37 in (9 mm) for power drilling, 6 in (152 mm) for boring and 2.0 in³/min (33 cm³/min) for milling. The BM-3, with the same spindle power and table size, is listed at 1,480 lb (671 kg) distributed table load and weighs 3,960 lb (1,796 kg). The KTM-3VKF carries 850 lb (386 kg) at the table center and weighs 3,100 lb (1,406 kg).

Position feedback comes from 3-axis absolute encoder glass scales, read out on a 12.1 in color LCD. Shipping weight is 3,300 lb (1,497 kg).

Full Specifications

Parameter	Value
X Axis Travel	32 in (813 mm)
Y Axis Travel	14 in (356 mm)
Z Axis Travel	15 in (381 mm) (knee)
Table Size	10 x 50 in (254 x 1,270 mm); opt. 10 x 54 in (254 x 1,372 mm)
Quill Travel	4 in (102 mm)
Ram Travel	22 in (559 mm)
Quill Diameter	3.375 in (86 mm)
Spindle Center to Column	5-27 in (127-686 mm)
Spindle Motor Power	3 hp (2.2 kW)
Spindle Speed Range	60-550-4,500 rpm (AC frequency drive head)
Max Spindle Speed	4,500 rpm
Spindle Taper	R-8
Quill Feed Rate	0.0015 / 0.003 / 0.006 in/rev
Drilling Capacity	0.75 in (19 mm) manual / 0.37 in (9 mm) power
Boring Capacity	6 in (152 mm) diameter
Milling Capacity	2.0 in³/min (33 cm³/min)
Max Table Load	850 lb (386 kg) (center)
CNC Control	Acu-Rite MillPwr G2
Position Feedback	3-axis absolute encoder glass scales
Display	12.1 in color LCD
Machine Weight	3,100 lb (1,406 kg)
Shipping Weight	3,300 lb (1,497 kg)
Power Requirement	220 V 3-phase 10 A or 220 V 1-phase 15 A (optional 440 V, 5 A)

Specifications sourced from kentusa.com — verified 2026-10-03

Strengths & Limitations

Strengths

Runs on 220 V 1-phase at 15 A as well as 220 V 3-phase at 10 A, with 440 V at 5 A optional
22 in (559 mm) of ram travel puts the spindle center 5-27 in (127-686 mm) from the column
3-axis absolute encoder glass scales for position feedback
Acu-Rite MillPwr G2 control with a 12.1 in color LCD
AC frequency drive head covering 60-550-4,500 rpm

Limitations

Table load is 850 lb (386 kg) at the center, against 1,480 lb (671 kg) distributed on the BM-3
Milling capacity is listed at 2.0 in³/min (33 cm³/min) from a 3 hp (2.2 kW) spindle
R-8 taper and a quill travel of 4 in (102 mm) limit tool size and drilling depth per stroke
Z is the knee, with 15 in (381 mm) of travel, so the workpiece moves up and down under the cut
The table lists no automatic tool changer

Best For

Shops with only single-phase 220 V power Toolroom, repair and one-off parts under 850 lb (386 kg) Work that needs the spindle reached out to 27 in (686 mm) from the column Training and prototype work on the Acu-Rite MillPwr G2 control

Frequently Asked Questions

01 Can the KTM-3VKF run on single-phase power?

Yes. The listed power requirement is 220 V 3-phase at 10 A or 220 V 1-phase at 15 A, with 440 V at 5 A as an option. Say which supply you have when ordering, so the machine arrives wired for it.

02 What are the travels of the KTM-3VKF?

X travel is 32 in (813 mm) and Y travel 14 in (356 mm). Z travel is 15 in (381 mm) and is the knee. In addition the quill travels 4 in (102 mm) and the ram 22 in (559 mm), giving a spindle center to column distance of 5-27 in (127-686 mm).

03 What table sizes are available on the KTM-3VKF?

The standard table is 10 x 50 in (254 x 1,270 mm). A 10 x 54 in (254 x 1,372 mm) table is listed as an option. Maximum table load is 850 lb (386 kg) at the center, so add the weight of the vise or fixture to the part before loading it.

04 What is the difference between the KTM-3VKF and the BM-3?

Both have a 3 hp (2.2 kW) spindle, a 4,500 rpm top speed and a 10 x 50 in (254 x 1,270 mm) table. The BM-3 weighs 3,960 lb (1,796 kg) and takes 1,480 lb (671 kg) distributed on its table. The KTM-3VKF is lighter at 3,100 lb (1,406 kg), with 850 lb (386 kg) allowed at the table center.

05 How does the KTM-3VKF measure position?

The table lists 3-axis absolute encoder glass scales as the position feedback, shown on the 12.1 in color LCD of the Acu-Rite MillPwr G2 control. Glass scales read the slide position directly, so the reading does not depend on the condition of the screw.
