Emco Emcomill 800

Q: How much does the Emco Emcomill 800 cost?

The price estimate for the Emco Emcomill 800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/emco-emcomill-800#price; the request is passed to Emco or an authorised dealer.

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

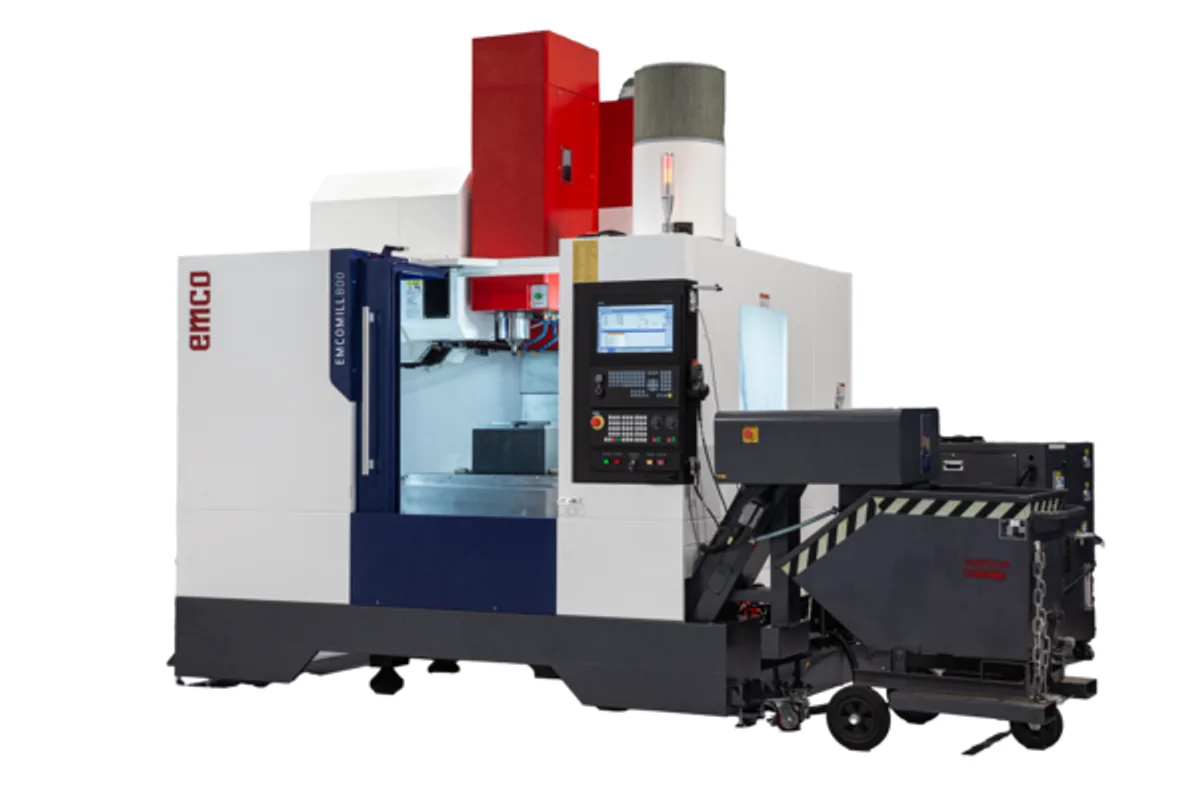

Emco Emcomill 800 vertical machining centre

Image: emco-world.com, Emco

Key Specifications

Spindle Taper

SK40 (DIN 69871)

Tool Capacity

Table Size

1000 x 550 mm

Spindle Power

13.6 kW (S6)

x axis travel

800 mm (31.5 in)

y axis travel

550 mm (21.7 in)

How much does the Emco Emcomill 800 cost?

Price estimate

Uncertain

We do not have a price for the Emco Emcomill 800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Emcomill 800 is a 3-axis vertical machining centre with 800 mm (31.5 in) of X travel and 550 mm (21.7 in) each in Y and Z. It has a 1000 x 550 mm table rated for 600 kg (1,323 lb), a 30-tool changer and a direct-drive spindle with an SK40 taper.

The spindle covers 50 – 12000 rpm and is rated 13.6 kW (S6) and 95 Nm (S6). Direct drive keeps it smooth at the top of the range, and the ratings place the machine in general-purpose territory: aluminium at speed, steel with sensible cutters, drilling and tapping throughout. It is not a heavy roughing spindle.

What stands out is the axis performance. Rapids are 42/42/42 m/min with acceleration of 5 m/s2, quicker than the larger Emcomill 1100, and feed force is 7,000 N (1,574 lbf). On parts with many short moves and tool changes of 2.5 s (tool to tool), that shortens the cycle more than spindle power would.

The magazine takes tools up to 76 mm (3.0 in) in diameter, or 150 mm (5.9 in) with the neighbouring station empty, 300 mm (11.8 in) long and 8 kg (18 lb) in weight. The control is the Siemens 828D with ShopMill on a 15-inch monitor. Installation needs 2600 x 2600 mm (W x D, without chip conveyor, with tank), 30 kVA and 6 bar of compressed air; the basic machine weighs 5,400 kg (11,905 lb).

Full Specifications

Parameter	Value
X Axis Travel	800 mm (31.5 in)
Y Axis Travel	550 mm (21.7 in)
Z Axis Travel	550 mm (21.7 in)
Distance Spindle Nose to Table	120 / 670 mm
Table Size	1000 x 550 mm
T-Slots	5 x 18 x 90 mm
Max Table Load	600 kg (1,323 lb)
Table Height Above Floor	945 mm (37.2 in)
Spindle Speed Range	50 – 12000 rpm
Spindle Torque	95 Nm (S6)
Spindle Motor Power	13.6 kW (S6)
Spindle Taper	SK40 (DIN 69871)
Spindle Drive	Direct drive
Tool Capacity	30
Tool Change Time	2.5 s (tool to tool)
Max Tool Diameter (full magazine)	76 mm (3.0 in)
Max Tool Diameter Empty Adjacent	150 mm (5.9 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	8 kg (18 lb)
Rapid Traverse Xyz	42/42/42 m/min
Feed Force Xyz	7,000 N (1,574 lbf)
Axis Acceleration	5 m/s2
Power Requirement	30 kVA
Machine Height	3,000 mm (118.1 in)
Installation Area	2600 x 2600 mm (W x D, without chip conveyor, with tank)
Machine Weight	5,400 kg (11,905 lb)
Compressed Air	6 bar

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Rapids of 42/42/42 m/min with 5 m/s2 acceleration
Direct-drive SK40 spindle, 50 – 12000 rpm
30-station tool changer with double gripper, 2.5 s (tool to tool)
1000 x 550 mm table with a 600 kg (1,323 lb) load rating
Siemens 828D with ShopMill

Limitations

Spindle is rated 13.6 kW (S6) and 95 Nm (S6), light for heavy steel roughing
Tools are limited to 8 kg (18 lb) and 76 mm (3.0 in) with a full magazine
Three axes only in the published table
High-pressure coolant through the spindle (30 bar) is described as optional

Best For

General 3-axis milling of parts up to 800 mm (31.5 in) long Aluminium and light steel work at up to 12000 rpm Job shops programming at the machine with ShopMill Workpieces and fixtures up to 600 kg (1,323 lb)

Frequently Asked Questions

01 What are the travels of the Emcomill 800?

X travel is 800 mm (31.5 in), Y 550 mm (21.7 in) and Z 550 mm (21.7 in). The distance from spindle nose to table is 120 / 670 mm, and the table measures 1000 x 550 mm with T-slots listed as 5 x 18 x 90 mm (number, width, spacing).

02 What spindle does the Emcomill 800 use?

A direct-drive spindle with an SK40 tool holder to DIN 69871. The speed range is 50 – 12000 rpm, with 13.6 kW (S6) and 95 Nm (S6).

03 What tool sizes fit the magazine?

The 30-station magazine accepts tools up to 76 mm (3.0 in) in diameter, 150 mm (5.9 in) with an empty station alongside, up to 300 mm (11.8 in) long and 8 kg (18 lb). Tool change takes 2.5 s (tool to tool).

04 What does the Emcomill 800 need for installation?

Emco lists an installation area of 2600 x 2600 mm (W x D, without chip conveyor, with tank), an overall height of 3,000 mm (118.1 in), a power supply of 30 kVA and compressed air at 6 bar. The basic machine weighs 5,400 kg (11,905 lb).
