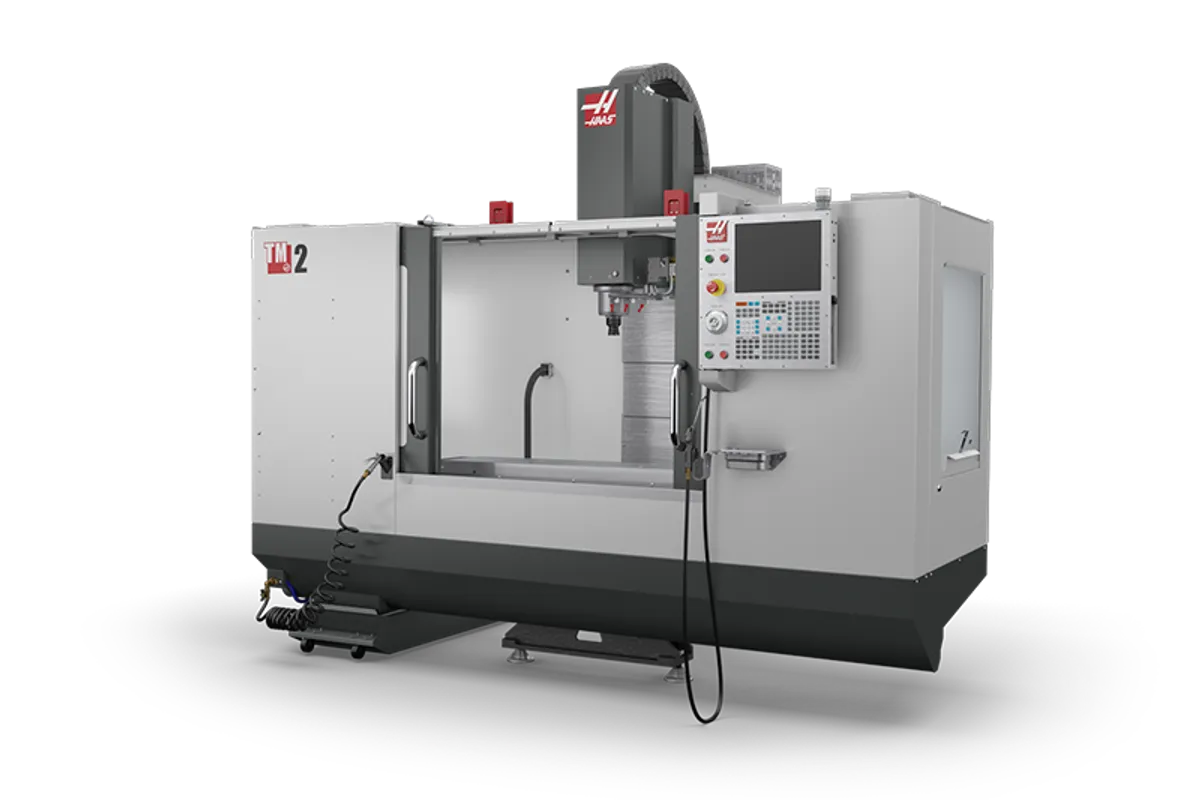

Haas TM-2
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Table Size
How much does the Haas TM-2 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas TM-2 is the long-travel toolroom mill: 40 in (1,016 mm) of X with 16 in (406 mm) each of Y and Z, on a table 57.8 × 10.5 in (1,467 × 267 mm). Its spindle is a 40-taper, 4,000 rpm, 7.5 hp (5.6 kW) unit, and the choice between this machine and the TM-1 comes down to X, because the TM-1 stops at 30 in (762 mm).
That length is useful in two ways. A single long part, such as a rail, a bar or a strip of plate, can be machined in one clamping across 40 in. Or several vises can be lined up along the table and worked in turn. The second approach is the usual way to get more from a machine whose table lists no tool changer, since every part receives the same tool before the next one is loaded by hand. Either way the load limit needs watching. The TM-2 is rated for 350 lb (159 kg) on the table, the same figure as the TM-0 with half the X travel, and a row of vises with parts can approach that before any cutting starts.
Motion is deliberate. Rapids and cutting feed are both 200 ipm (5.1 m/min), and with 40 in to cover, a move from one end of the table to the other takes twice as long as on the TM-2P at 400 ipm (10.2 m/min). All three axes are rated for 2,000 lbf (8,896 N) of thrust. Torque is 33 ft-lbf (45 N·m) at 1,200 rpm through a belt drive, in CT or BT 40.
Check the delivery details early. The shipping pallet is 127 × 78 × 100 in (323 × 198 × 254 cm) and the machine weighs 5,060 lb (2,295 kg). Power can be 220 VAC single-phase at 40 A, 220 VAC three-phase at 25 A or 440 VAC three-phase at 13 A, and air is 4 scfm at 100 psi (113 L/min at 6.9 bar) through a 3/8 in line. The starting price on Haas's site is US$52,995.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 40 in (1,016 mm) |
| Y-Axis Travel | 16 in (406 mm) |
| Z-Axis Travel | 16 in (406 mm) |
| Spindle Nose to Table (max) | 20 in (508 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 7.5 hp (5.6 kW) |
| Max Spindle Speed | 4,000 rpm |
| Spindle Torque | 33 ft-lbf @ 1,200 rpm (45 N·m @ 1,200 rpm) |
| Spindle Drive | Direct Speed, Belt Drive |
| Spindle Taper | CT or BT 40 |
| Spindle Bearing Lubrication | Grease Packed |
| Spindle Cooling | Air Cooled |
| Table Size | 57.8 × 10.5 in (1,467 × 267 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4 in (102 mm) |
| T-Slots | 3 |
| Max Table Load | 350 lb (159 kg) |
| Max Cutting Feedrate | 200 ipm (5.1 m/min) |
| Rapid Traverse Rate | 200 ipm (5.1 m/min) |
| Max Thrust X | 2,000 lbf (8,896 N) |
| Max Thrust Y | 2,000 lbf (8,896 N) |
| Max Thrust Z | 2,000 lbf (8,896 N) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Single Phase | 220 VAC 1-phase, 40 A |
| Electrical Service (low voltage) | 220 VAC 3-phase, 25 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 13 A |
| Shipping Domestic Pallet | 127 × 78 × 100 in (323 × 198 × 254 cm) |
| Shipping Export Pallet | 127 × 78 × 100 in (323 × 198 × 254 cm) |
| Machine Weight | 5,060 lb (2,295 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 40 in (1,016 mm) of X travel, against 30 in (762 mm) on the TM-1
- 57.8 in (1,467 mm) of table length for several vises in a row or one long part
- Same 16 in (406 mm) Y and Z travels as the TM-1, so nothing is given up for the extra X
- Works from 220 VAC single-phase at 40 A as well as from three-phase supplies
- 40-taper spindle in CT or BT 40 with 7.5 hp (5.6 kW)
Limitations
- 350 lb (159 kg) table load spread over a table 57.8 in (1,467 mm) long
- 200 ipm (5.1 m/min) rapids make end-to-end moves across 40 in (1,016 mm) slow
- Haas's table lists no tool changer; the TM-2P has a 10-tool carousel
- Spindle speed tops out at 4,000 rpm
- The shipping pallet is 127 in (323 cm) long, which matters for doorways and rigging
Best For
Frequently Asked Questions
01
X travel is 40 in (1,016 mm), so a feature up to that length can be cut in one clamping. The table itself is 57.8 in (1,467 mm) long and can support a longer workpiece, which then has to be repositioned to reach the ends. Y and Z travels are 16 in (406 mm) each.
02
It can be. The 350 lb (159 kg) rating covers everything bolted to the table. With several vises or a full-length fixture plate, the workholding alone uses a large part of the allowance, so weigh the setup before planning heavy steel parts. The table is 10.5 in (267 mm) wide with 3 T-slots on 4 in (102 mm) centres.
03
The TM-2P adds 10 tools, a 6,000 rpm spindle and 400 ipm (10.2 m/min) feed and rapid on the same 40 × 16 × 16 in (1,016 × 406 × 406 mm) travels. The TM-2 runs at 4,000 rpm and 200 ipm (5.1 m/min) with no tool changer in its table. For multi-vise work with frequent tool changes, the TM-2P removes the manual changes; for occasional long parts, the TM-2 does the same cuts.
04
Haas's shipping data gives 5,060 lb (2,295 kg) on a pallet of 127 × 78 × 100 in (323 × 198 × 254 cm), for domestic and export shipment alike. These are shipping dimensions, so ask Haas for the installed layout drawing before marking out the floor.
05
Yes. A 220 VAC single-phase supply at 40 A is listed alongside 220 VAC three-phase at 25 A and 440 VAC three-phase at 13 A. Compressed air is needed as well, with a minimum pressure of 80 psi (5.5 bar).
