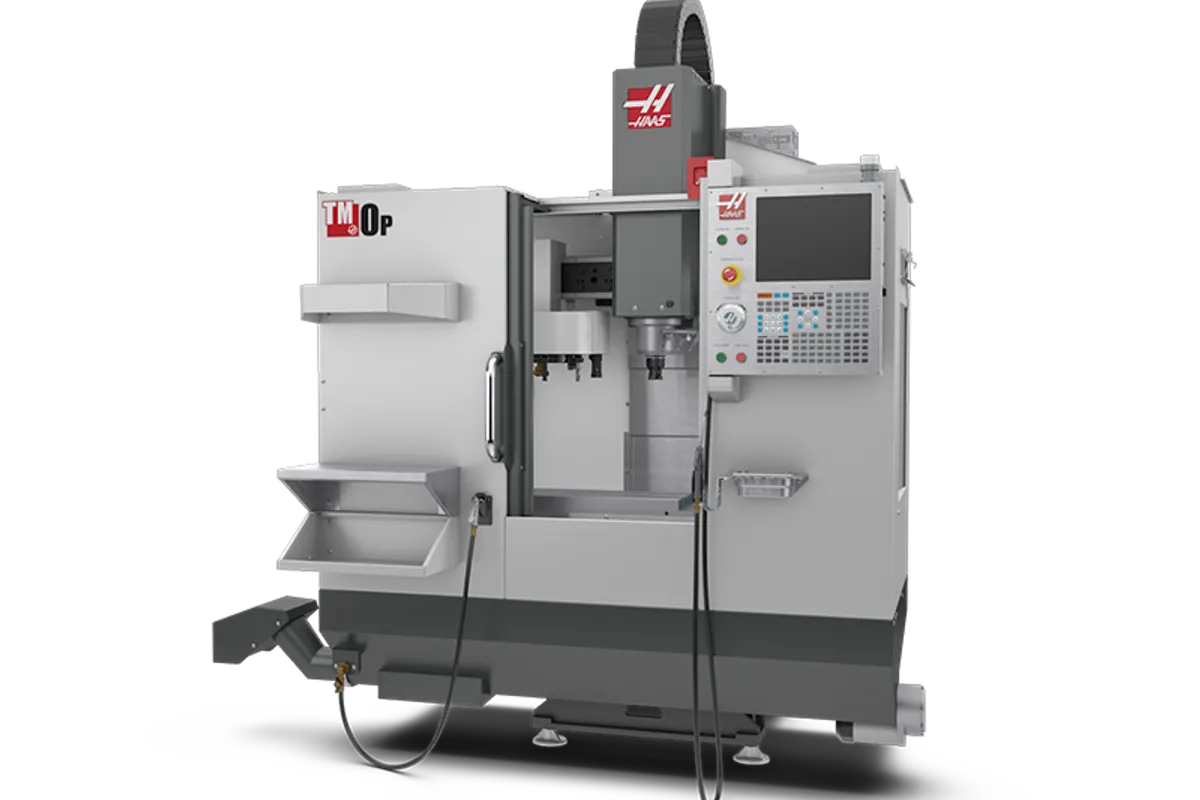

Haas TM-0P

$46,000 - $58,000 Updated 2026-03-19

Key Specifications

X Travel

406 mm (16 in)

Y Travel

305 mm (12 in)

Z Travel

254 mm (10 in)

Max Spindle

6,000 RPM

Spindle Taper

CT or BT 40

Tool Capacity

10-pocket carousel

Overview

The Haas TM-0P is the productivity-enhanced version of the TM-0, Haas's smallest toolroom mill. It shares the same compact 406 x 305 x 254 mm (16 x 12 x 10 in) travel envelope but adds the P-series enhancements that improve day-to-day usability and throughput: higher rapid traverse rates, improved servo response, and production-oriented software features.

The spindle remains the belt-drive CT/BT 40 taper unit at 6,000 RPM with 5.6 kW (7.5 hp) and 45 Nm (33 ft-lbf) of torque. The P designation does not change the spindle — the improvements are in axis motion and control features. Rapids increase to 15.2 m/min (600 ipm) from the standard TM-0's 10.2 m/min (400 ipm), a 50% improvement that noticeably reduces non-cutting time on multi-feature parts.

The 10-pocket carousel tool changer, table dimensions, and load capacity are identical to the TM-0. The table measures 762 x 267 mm (30 x 10.5 in) with 113 kg (250 lb) capacity. The machine accepts single-phase 220 VAC at 30 amps, maintaining the TM-0's installation flexibility.

At a base price around $46,000 — roughly $4,000 more than the standard TM-0 — the TM-0P makes sense for shops that will actually run parts on the machine rather than using it purely for training. The faster rapids and improved servo tuning reduce cycle times enough to justify the premium on any job beyond basic demonstrations. For training environments where students will also produce real parts, the TM-0P is the better investment. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	406 mm (16 in)
Y-Axis Travel	305 mm (12 in)
Z-Axis Travel	254 mm (10 in)
Spindle Nose To Table Max	356 mm (14 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	6,000 RPM
Spindle Taper	CT or BT 40
Spindle Motor Power	7.5 hp
Spindle Torque Max	45 Nm (33 ft-lbf) @ 1,200 RPM
Spindle Drive	Direct Speed, Belt Drive
Spindle Cooling	Air Cooled
Spindle Bearings	Grease Packed
Tool Capacity	10-pocket carousel
Tool To Tool	5.70 s
Chip To Chip	6.50 s
Max Tool Diameter	3.5 in
Max Tool Weight	12.0 lb
Table Size	762 x 267 mm (30 x 10.5 in)
Table Load Max	113 kg (250 lb)
T Slots	3 slots, 102 mm (4.0 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	15.2 m/min (600 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Max Thrust X	2000 lbf
Max Thrust Y	2000 lbf
Max Thrust Z	2000 lbf
Machine Weight	1,588 kg (3,500 lb)
CNC Control	Haas Next Generation Control (NGC)
Air Required	4 scfm @ 100 psi
Electrical Single Phase	220 VAC 1-phase, 30 A
Electrical Low	220 VAC 3-phase, 20 A
Electrical High	440 VAC 3-phase, 10 A
Travels	S.A.E
X Axis	20.00 in
Y Axis	12.00 in
Z Axis	16.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	7.5 hp
Max Speed	6000 rpm
Max Torque	33.0 ft-lbf @ 1200 rpm
Drive System	Direct Speed, Belt Drive
Taper	CT or BT 40
Bearing Lubrication	Grease Packed
Cooling	Air Cooled
Table	S.A.E
Length	30.50 in
Width	10.5 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.00 in
Number Of Std T Slots	3
Max Weight On Table	350 lb
Feedrates	S.A.E
Max Cutting	400 ipm
Rapids On X	400 ipm
Rapids On Y	400 ipm
Rapids On Z	400 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	Carousel
Capacity	10
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage	220 VAC
Full Load Amps	40 A
Input Ac Voltage Low	220 VAC
Full Load Amps Low	25 A
Input Ac Voltage High	440 VAC
Full Load Amps High	13 A
Dimensions Shipping	S.A.E
Domestic Pallet	100.0 in x 78.0 in x 99.5 in
Export Pallet	100.0 in x 78.0 in x 99.5 in
Machine Weight	3660 lb
Haas Rotary	HAAS MACHINE
Ha2ts	TM-0P
Ha5c	TM-0P
Ha5c T	TM-0P
Ha5cs	TM-0P
Hrt100	TM-0P
Hrt160	TM-0P
Hrt160 2	TM-0P
Hrt160sp	TM-0P
Hrt200hs	TM-0P
Hrt210sp	TM-0P
Th240	TM-0P
Trt100	TM-0P
Trt160	TM-0P
Trt70	TM-0P

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

50% faster rapids than the standard TM-0 (600 vs 400 ipm) noticeably reduce non-cutting time
Same single-phase 30-amp power requirement as the TM-0 — installs in any building
NGC control identical to production Haas machines for complete CNC skill transfer
Compact footprint and 3,500 lb weight fit the smallest shop spaces
Only ~$4K more than the standard TM-0 for meaningful productivity improvements
40-taper spindle accepts standard tooling shared with production Haas mills

Limitations

16x12x10-inch travel still severely limits workpiece size
6,000 RPM max and 7.5 hp remain toolroom-grade power
6.5-second chip-to-chip tool changes are slow by production standards
250 lb table load capacity limits fixture and workpiece weight
Belt-drive spindle with grease-packed bearings lacks production-grade precision

Best For

Training programs that also need to produce real parts between instruction sessions Small toolrooms making fixtures, gauges, and one-off parts on a compact platform Garage shops wanting the fastest TM-0 variant available on single-phase power R&D departments prototyping small components where faster rapids reduce iteration time Shops upgrading from a TM-0 that need better cycle times without changing their footprint

Frequently Asked Questions

01 What is the difference between the TM-0 and TM-0P?

The TM-0P adds faster rapid traverse rates (600 ipm vs 400 ipm), higher cutting feedrate capability (500 ipm vs 400 ipm), and improved servo tuning. The spindle, travel, tool changer, and electrical requirements are identical. The P costs approximately $4,000 more.

02 What does a Haas TM-0P cost?

Base price is approximately $46,000. With probing and basic options, expect $50,000-$58,000. The $4K premium over the standard TM-0 is easily justified if the machine will be used for actual part production.

03 Can the TM-0P run on single-phase?

Yes. Like the standard TM-0, it runs on 220 VAC single-phase at 30 amps. It also accepts 220V 3-phase at 20 amps or 440V 3-phase at 10 amps.

04 Should I buy the TM-0P or step up to the TM-1P?

The TM-1P adds 356 mm (14 in) of X travel and 101 mm (4 in) of Y travel, nearly doubling the work envelope. If your parts fit in the TM-0P's 16x12x10-inch envelope, save the money. If you routinely need more than 16 inches in any axis, the TM-1P at $52K is the better choice.
