Hwacheon Vertical Machining Centers (VMC)

Hwacheon HiT-360D

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

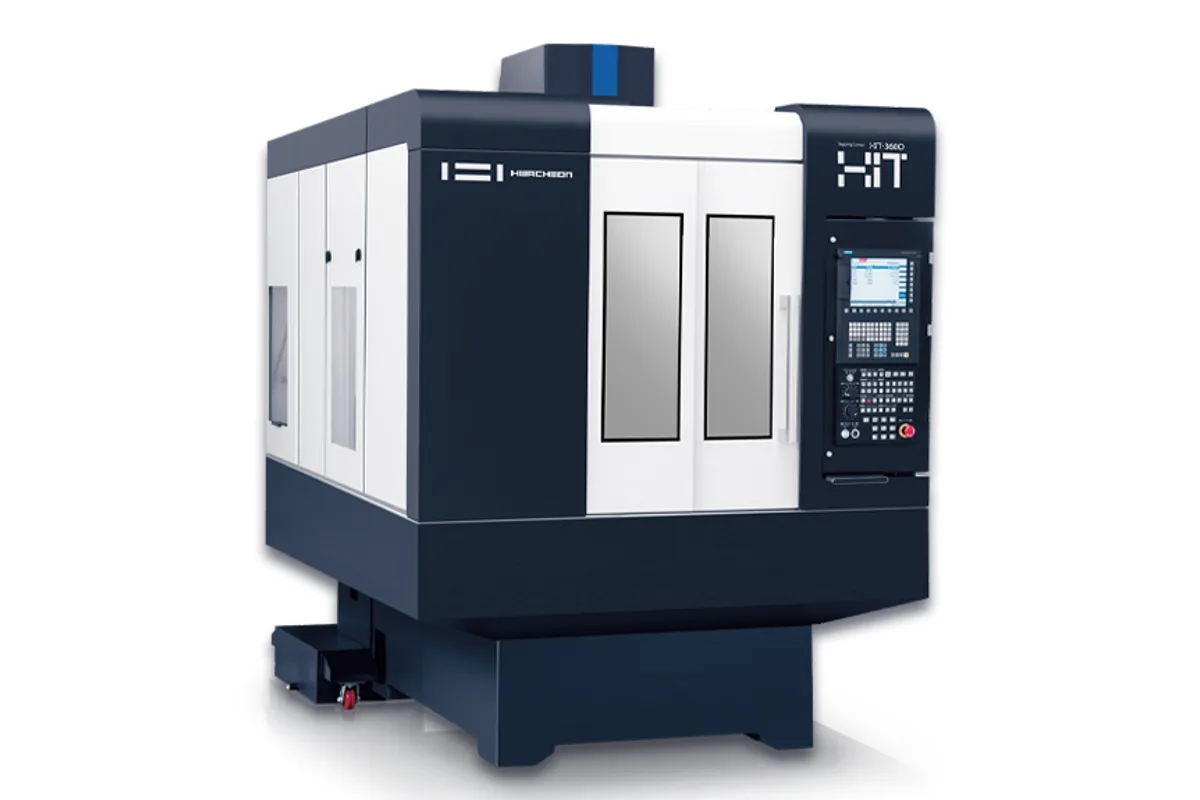

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

12,000 rpm (12K, FANUC) / 15,000 rpm (15K, SIEMENS) / 24,000 rpm (24K, FANUC or SIEMENS); CTS (opt.)

Spindle Taper

BBT-30

Tool Capacity

Table Size

650 x 400 mm (25.6 x 15.7 in), 2 tables

Spindle Power

FANUC versions: 7.5 / 5.5 kW (10.1 / 7.4 hp); SIEMENS versions: 7.2 / 4.8 kW (9.7 / 6.4 hp)

x axis travel

520 mm (20.5 in)

How much does the Hwacheon HiT-360D cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon HiT-360D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon HiT-360D is the twin-table model of Hwacheon's BBT-30 range: two 650 x 400 mm (25.6 x 15.7 in) tables, each rated 250 kg (551 lb), exchanged by an up / down change mechanism, under 520 mm (20.5 in) of X, 360 mm (14.2 in) of Y and 300 mm (11.8 in) of Z travel. While one table is in the work zone the operator unloads and reloads the other, so loading time moves out of the cycle.

That is the reason to choose it over the single-table HiT-400, whose one 600 x 400 mm (23.6 x 15.7 in) table is rated 200 kg (441 lb). The price paid is floor space: the HiT-360D occupies 2,977 x 1,884 mm (117.2 x 74.2 in), length by width, though it weighs the same 2,500 kg (5,512 lb). Y travel is 360 mm (14.2 in), and the spindle nose ranges 190 to 490 mm (7.5 to 19.3 in) above the table.

For a twin-table machine the tool length limit deserves attention. Tools may be Ø80 mm (Ø3.1 in) and 2.5 kg (5.5 lb), but no longer than 150 mm (5.9 in), so long drills and extended holders need checking before a job is promised to this machine. The magazine holds 21 tools on fixed addresses and changes in 1.6 sec chip to chip, and all three axes rapid at 60 m/min (2,362 ipm).

Spindle and control come as a pair: 12,000 rpm (12K) with FANUC 0i-MF, 15,000 rpm (15K) with SIEMENS-828D, or 24,000 rpm (24K) with either. FANUC versions are rated 7.5 / 5.5 kW (10.1 / 7.4 hp) and SIEMENS versions 7.2 / 4.8 kW (9.7 / 6.4 hp). The direct-coupled spindle is grease-lubricated, with an oil cooler on the 24K version and a fan cooler on the others, and through-spindle coolant is optional. The coolant tank holds 400 L (106 US gal). Power demand is 25 kVA at 220V, 60Hz for FANUC or 380V, 60Hz for SIEMENS.

Full Specifications

Parameter	Value
X Axis Travel	520 mm (20.5 in)
Y Axis Travel	360 mm (14.2 in)
Z Axis Travel	300 mm (11.8 in)
Distance Spindle Nose to Table	190 ~ 490 mm (7.5 ~ 19.3 in)
Distance Column to Spindle Center	454 mm (17.9 in)
Table Size	650 x 400 mm (25.6 x 15.7 in), 2 tables
Max Table Load	250 kg (551 lb) per table
Table Change Method	Up / Down Type
Max Spindle Speed	12,000 rpm (12K, FANUC) / 15,000 rpm (15K, SIEMENS) / 24,000 rpm (24K, FANUC or SIEMENS); CTS (opt.)
Spindle Motor Power	FANUC versions: 7.5 / 5.5 kW (10.1 / 7.4 hp); SIEMENS versions: 7.2 / 4.8 kW (9.7 / 6.4 hp)
Spindle Taper	BBT-30
Spindle Bearing Bore	Ø70 mm (Ø2.8 in)
Spindle Drive	Direct-coupled motor
Spindle Lubrication	Grease
Spindle Cooling	Jacket cooling (fan cooler on 12K / 15K; oil cooler on 24K)
Rapid Traverse Xyz	60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm)
Pull Stud	45°
Tool Capacity	21
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Weight	2.5 kg (5.5 lb)
Tool Selection	Fixed address
Tool Change Time	1.6 sec (C to C)
Power Requirement	25 kVA
Power Supply	FANUC versions: 220V, 60Hz; SIEMENS versions: 380V, 60Hz
Air Supply	5 kg/cm²
CNC Control	FANUC 0i-MF (12K, 24K) / SIEMENS-828D (15K, 24K)
Max Tool Length	150 mm (5.9 in)
Coolant Tank	400 L (106 US gal)
Machine Height	2,384 mm (93.9 in); with top cover 2,500 mm (98.4 in); with CTS 2,660 mm (104.7 in)
Machine Dimensions	2,977 x 1,884 mm (117.2 x 74.2 in) (length x width)
Machine Weight	2,500 kg (5,512 lb)

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Two 650 x 400 mm (25.6 x 15.7 in) tables with an up / down table change, so parts are loaded while the machine cuts
Each table is rated 250 kg (551 lb), more than the 200 kg (441 lb) of the single-table HiT-400
60 m/min (2,362 ipm) rapids on all axes and a 1.6 sec chip-to-chip tool change
Spindle options to 12,000, 15,000 or 24,000 rpm, with optional through-spindle coolant
400 L (106 US gal) coolant tank

Limitations

Tool length is limited to 150 mm (5.9 in), with Ø80 mm (Ø3.1 in) and 2.5 kg (5.5 lb) limits on a BBT-30 taper
Y travel is 360 mm (14.2 in) and Z travel 300 mm (11.8 in)
Floor area of 2,977 x 1,884 mm (117.2 x 74.2 in) for a machine with 520 mm (20.5 in) of X travel
Spindle power of 7.5 / 5.5 kW (10.1 / 7.4 hp) on FANUC or 7.2 / 4.8 kW (9.7 / 6.4 hp) on SIEMENS keeps cuts light

Best For

High-volume small parts where loading must happen during the cycle Drilling and tapping with short tools under 150 mm (5.9 in) Running two different fixtures on the two tables Light aluminium milling on the 24,000 rpm 24K spindle

Frequently Asked Questions

01 How does the table change on the HiT-360D work?

The machine has two 650 x 400 mm (25.6 x 15.7 in) tables and the table change is listed as an up / down type. One table sits in the work zone while the other is outside it for loading, so parts are changed during the cycle. Each table is rated 250 kg (551 lb).

02 What is the difference between the HiT-360D and the HiT-400?

The HiT-400 has one 600 x 400 mm (23.6 x 15.7 in) table rated 200 kg (441 lb) and the same 2,500 kg (5,512 lb) machine weight. The HiT-360D has two tables of 650 x 400 mm (25.6 x 15.7 in) rated 250 kg (551 lb) each, plus 360 mm (14.2 in) of Y travel. Both share the BBT-30 spindle options and a 21-tool magazine.

03 What tools can the HiT-360D carry?

21 tools in a BBT-30 taper with a 45° pull stud, selected by fixed address. The maximum tool is Ø80 mm (Ø3.1 in), 150 mm (5.9 in) long and 2.5 kg (5.5 lb). Tool change takes 1.6 sec chip to chip.

04 Which spindle should I choose on the HiT-360D?

The 12K version runs to 12,000 rpm with FANUC, the 15K to 15,000 rpm with SIEMENS, and the 24K to 24,000 rpm with either control. Power is 7.5 / 5.5 kW (10.1 / 7.4 hp) for FANUC versions and 7.2 / 4.8 kW (9.7 / 6.4 hp) for SIEMENS versions, so the faster spindles add speed for small tools rather than power.

05 What utilities does the HiT-360D need?

25 kVA of electrical supply at 220V, 60Hz with FANUC or 380V, 60Hz with SIEMENS, and air at 5 kg/cm². The machine height is 2,384 mm (93.9 in), 2,500 mm (98.4 in) with the top cover and 2,660 mm (104.7 in) with through-spindle coolant.
