Hyundai WIA CNC Lathes / Turning Centers

Hyundai WIA LM2500TTSY II

Est. $280,000 - $400,000 Specs verified 2026-10-03 · wiamachine.com Updated 2026-10-03

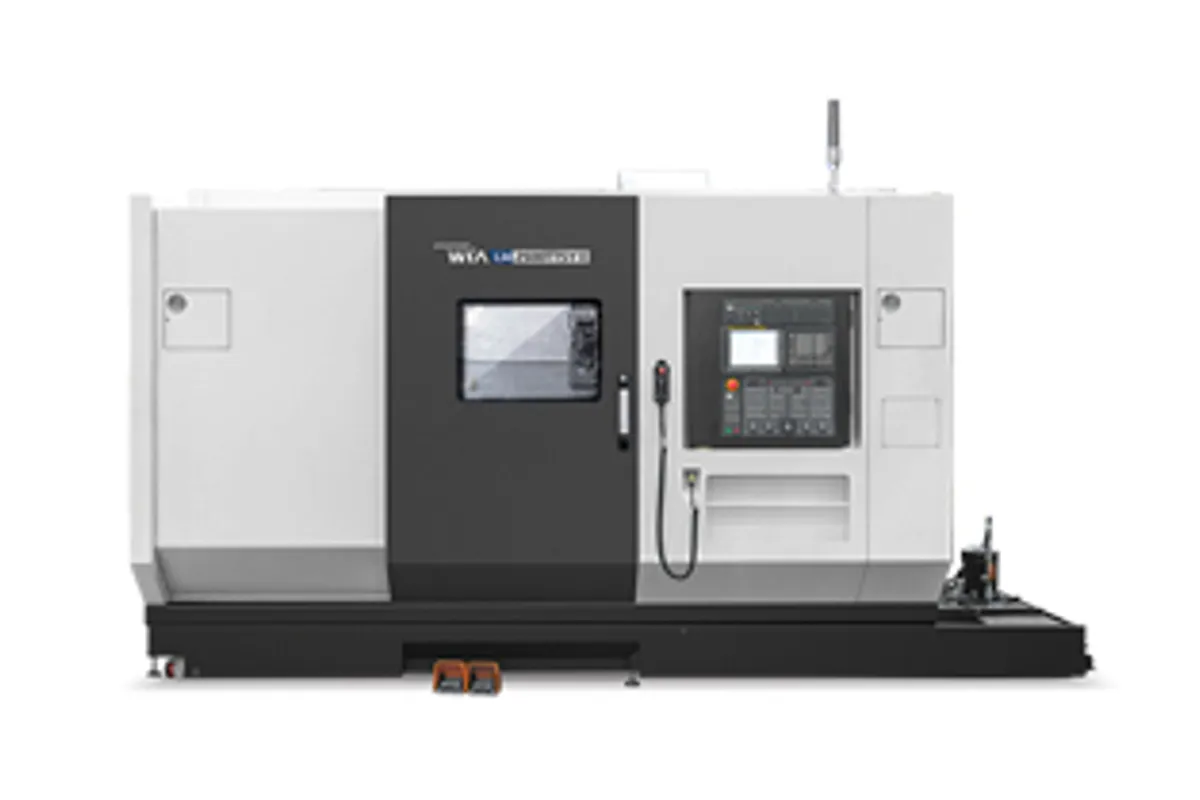

Image: wiamachine.com, Hyundai WIA

Key Specifications

Y Travel

120 mm (4.7 in)

Max Spindle

제1주축 : 4,000 | 제2주축 : 4,000

Tool Capacity

2×24 (BMT65) tools

Rapid Traverse

X1/Z1/Y/X2/Z2/A: 24 / 24 / 24 / 24 / 12 / 24 m/min (945 / 945 / 945 / 945 / 472 / 945 ipm)

Spindle Power

제1주축 : 30/22 | 제2주축 : 30/22

Max Turn Length

900 mm (35.4 in)

How much does the Hyundai WIA LM2500TTSY II cost?

Estimated price range

Est.$280,000 - $400,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA LM2500TTSY II is a twin-spindle, twin-turret turning center with a 10 in (254 mm) chuck, a 390 mm (15.4 in) maximum turning diameter and a 900 mm (35.4 in) maximum turning length. Its two spindles carry the same listing: 4,000 rpm, 30/22 kW and 724/410 N·m each, with a built-in drive.

Matched spindles are the point of this model. On many sub-spindle lathes the second spindle is the weaker one, and the heavy cuts have to be planned into the first operation. Here the first and second spindle are listed with identical speed, power and torque, so a part can be roughed hard on both sides and the cycle can be balanced on time alone.

Tooling capacity is large for the format. Each turret is listed with 24 stations, shown as 2×24 (BMT65), for 48 stations in total. Live tools run to 5,000 rpm and the Y axis has 120 mm (4.7 in) of travel, which covers flats, keyways and off-centre holes on parts well inside the 390 mm turning diameter.

Travel is listed as X1/Z1/Y/X2/Z2/A: 270 / 920 / 120 / 195 / 920 / 920 mm (10.6 / 36.2 / 4.7 / 7.7 / 36.2 / 36.2 in). X2 is the short axis, 195 mm against 270 mm on X1, so tools on that side reach less far across the part. The rapid row reads 24 / 24 / 24 / 24 / 12 / 24 m/min (945 / 945 / 945 / 945 / 472 / 945 ipm) for the same axes, which puts Z2 at half the rate of the rest. Next to the LM1800TTSY, with its 230 mm (9.1 in) turning diameter, 8 in (203 mm) chuck and 2 x 12 tools, this is the machine for bigger and longer parts with longer tool lists.

Full Specifications

Parameter	Value
Max Turning Diameter	390 mm (15.4 in)
Max Spindle Speed	제1주축 : 4,000 \| 제2주축 : 4,000
Spindle Motor Power	제1주축 : 30/22 \| 제2주축 : 30/22
Upper Turret	24 stations
Lower Turret	24 stations
Total Tool Stations	2 x 24 (48 total)
Travel X1	270 mm (10.6 in)
Travel X2	195 mm (7.7 in)
Travel Z1	920 mm (36.2 in)
Travel Z2	920 mm (36.2 in)
Travel Zb	920 mm (36.2 in)
Y-Axis Travel	120 mm (4.7 in)
Rapid Traverse Rate	X1/Z1/Y/X2/Z2/A: 24 / 24 / 24 / 24 / 12 / 24 m/min (945 / 945 / 945 / 945 / 472 / 945 ipm)
Live Tool Speed	5,000 rpm
Chuck Size	10 in (254 mm)
Max Turning Length	900 mm (35.4 in)
Travel Axes	X1/Z1/Y/X2/Z2/A: 270 / 920 / 120 / 195 / 920 / 920 mm (10.6 / 36.2 / 4.7 / 7.7 / 36.2 / 36.2 in)
Spindle Torque	제1주축 : 724/410 \| 제2주축 : 724/410
Spindle Drive	Built-in
Tool Capacity	2×24 (BMT65) tools

Specifications sourced from wiamachine.com — verified 2026-10-03

Strengths & Limitations

Strengths

Both spindles carry the same rating, 4,000 rpm with 30/22 kW and 724/410 N·m, so heavy cuts are not confined to the first operation
2×24 (BMT65) tool stations, 48 stations in total across the upper and lower turrets
390 mm (15.4 in) turning diameter and 900 mm (35.4 in) turning length on a 10 in (254 mm) chuck
120 mm (4.7 in) of Y travel with 5,000 rpm live tooling
920 mm (36.2 in) of travel on both Z1 and Z2

Limitations

Spindle speed is 4,000 rpm on both spindles, against 5,000 rpm on the LM1800TTSY, which limits surface speed on small diameters
X2 travel is 195 mm (7.7 in) against 270 mm (10.6 in) on X1, so one side has less radial reach
The rapid row gives Z2 12 m/min (472 ipm), half the 24 m/min (945 ipm) of the other axes
The table gives no bar capacity, machine weight or floor space, all of which need confirming before an installation is planned

Best For

Shafts and flanged parts up to 390 mm (15.4 in) in diameter and 900 mm (35.4 in) long Two-operation parts where both sides need heavy cuts at 724/410 N·m Long tool lists that fit within 2×24 stations without re-tooling between jobs Turned parts with off-centre milling inside 120 mm (4.7 in) of Y travel

Frequently Asked Questions

01 Are the two spindles of the LM2500TTSY II the same?

In the listed figures, yes. Hyundai WIA gives the first and the second spindle the same values: 4,000 rpm, 30/22 kW and 724/410 N·m, with a built-in drive. That lets heavy roughing be shared between both operations instead of being loaded onto the first.

02 How many tools does the LM2500TTSY II carry?

The upper and lower turret are each listed with 24 stations, shown as 2×24 (BMT65), for 48 stations in total. Live tools run to 5,000 rpm. The LM1800TTSY, by comparison, is listed with 2 x 12 tools.

03 What size of part fits the LM2500TTSY II?

Maximum turning diameter is 390 mm (15.4 in) and maximum turning length 900 mm (35.4 in), on a 10 in (254 mm) chuck. Z1 and Z2 each travel 920 mm (36.2 in). The table gives no bar capacity, so bar work needs that figure confirmed separately.

04 What are the axis travels and rapid rates of the LM2500TTSY II?

Travel on X1/Z1/Y/X2/Z2/A is 270 / 920 / 120 / 195 / 920 / 920 mm (10.6 / 36.2 / 4.7 / 7.7 / 36.2 / 36.2 in). The rapid row for the same axes reads 24 / 24 / 24 / 24 / 12 / 24 m/min (945 / 945 / 945 / 945 / 472 / 945 ipm).

05 How much Y-axis travel does the LM2500TTSY II have?

120 mm (4.7 in). With 5,000 rpm live tools that covers off-centre drilling, flats and keyways. Features further from the centreline than the Y stroke allows have to be reached by indexing the spindle instead.
