YCM GT-300MA

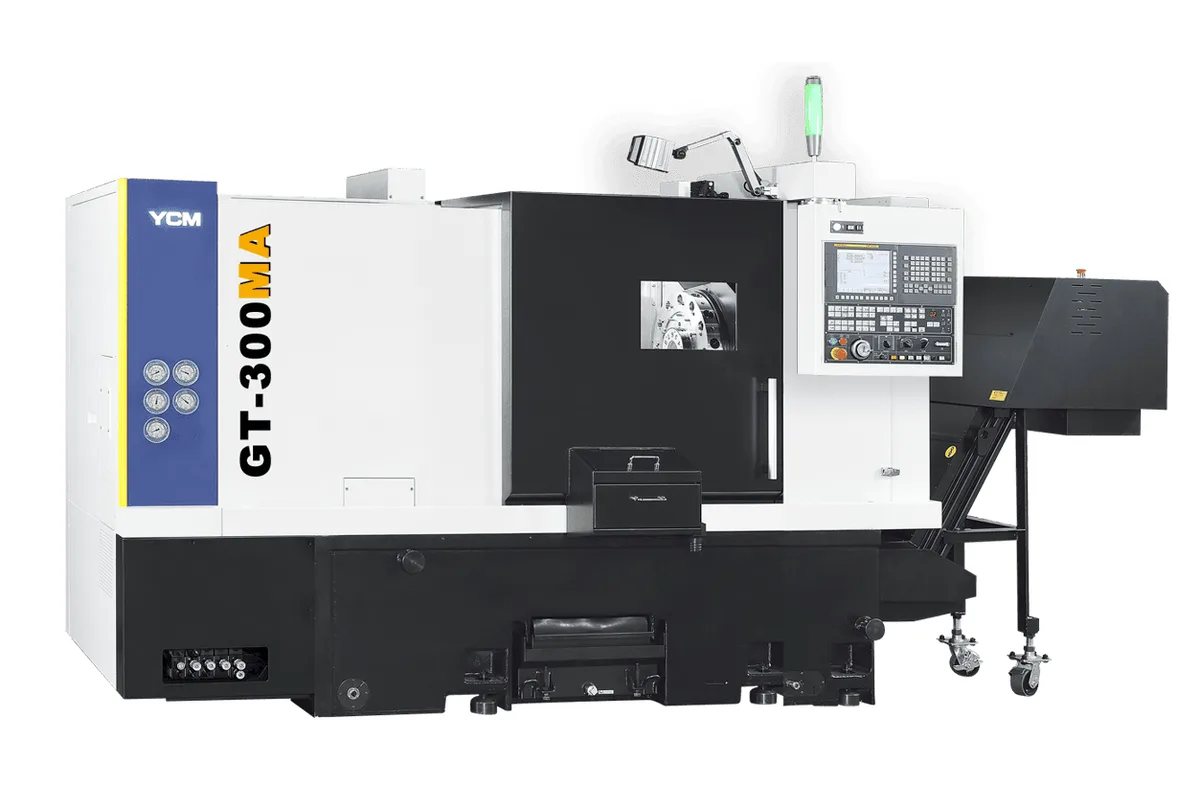

Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle nose
How much does the YCM GT-300MA cost?
Price estimate
We do not have a price for the YCM GT-300MA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM GT-300MA is a live-tool turning center on the GT-300 bed, with a 12-station radial power turret that is servo rotated and hydraulically clamped. It turns up to ø360 mm (ø14.17 in) in diameter and 742 mm (29.21 in) in length, with a spindle speed of 3,500 rpm.
Compared with the two-axis GT-300B it gives up some diameter and bore for versatility. The GT-300B turns ø440 mm (ø17.32 in) through a ø105 mm (ø4.13 in) spindle; this model has a ø88 mm (ø3.46 in) bore and a ø75 mm (ø2.95 in) draw bar hole. In return the turret holds half as many tools again and every operation that needs a rotating cutter can stay on the lathe.
Live tools reach 3,000 rpm with 3.57 kgf-m, the same drive as on the GT-250MA, but here it is paired with an 18.5 kW main motor and a heavier bed. That balance suits parts where turning removes most of the metal and milling adds features: flanges with bolt circles, shafts with keyways, valve bodies with cross ports.
X travel is 275 mm, printed as 180+95, and the swing over the turret is ø650 mm (ø25.59 in). The tailstock has an MT-5 quill with 605 mm (23.82 in) of stroke. Rapid traverse is 20 m/min (787 ipm) in X and 24 m/min (945 ipm) in Z. At 6,950 kg (15,322 lb) the machine weighs the same as the GT-300B.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | ø360 mm (ø14.17 in) |
| Max Turning Length | 742 mm (29.21 in) |
| Chuck Size | 10 |
| Spindle Nose | A2-8 |
| Spindle Bore | ø88 mm (ø3.46 in) |
| Hole Through Draw Bar | ø75 mm (ø2.95 in) |
| Max Spindle Speed | 3,500 rpm |
| X Axis Travel | 275 (180+95) mm |
| Z Axis Travel | 742 mm (29.21 in) |
| X Axis Rapid Traverse | 20 m/min (787 ipm) |
| X Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Z Axis Rapid Traverse | 24 m/min (945 ipm) |
| Z Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Spindle Motor Power | (L)11/18.5 (H)15/18.5 kW |
| Turret Type | Radial Power Turret (Servo Rotation, Hydraulic Clamping) |
| Turret Stations | 12 stations |
| Live Tool Speed | 3,000 rpm |
| Live Tool Torque | 3.57 kgf-m |
| Swing Over Turret | ø650 mm (ø25.59 in) |
| Tailstock Quill Taper | MT-5 |
| Tailstock Quill Stroke | 605 mm (23.82 in) |
| Machine Weight | 6,950 kg (15,322 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12-station radial power turret with servo rotation and hydraulic clamping
- Live tools at 3,000 rpm with 3.57 kgf-m
- 742 mm (29.21 in) turning length with tailstock support
- 18.5 kW peak spindle motor
- X travel of 275 mm (180+95)
Limitations
- Turning diameter is ø360 mm (ø14.17 in), below the ø440 mm (ø17.32 in) of the GT-300B
- Draw bar hole is ø75 mm (ø2.95 in)
- Live tool speed tops out at 3,000 rpm
- No Y axis or sub-spindle in the table
Best For
Frequently Asked Questions
01
A radial power turret with servo rotation and hydraulic clamping, with 12 stations. The live tool motor runs at 3,000 rpm and delivers 3.57 kgf-m of torque.
02
Maximum turning diameter is ø360 mm (ø14.17 in) and maximum turning length is 742 mm (29.21 in). The spindle bore is ø88 mm (ø3.46 in), the draw bar hole is ø75 mm (ø2.95 in) and the spindle nose is A2-8.
03
Yes. The GT-300LMB has the same ø360 mm (ø14.17 in) turning diameter with a 1,233 mm (48.54 in) turning length, a ø105 mm (ø4.13 in) spindle bore and a weight of 7,850 kg (17,306 lb).
04
The spindle runs to 3,500 rpm. The main spindle motor row reads (L) 11/18.5 and (H) 15/18.5 kW. The chuck size row gives 10, and the tailstock quill is MT-5.
