YCM TC-46M/3200

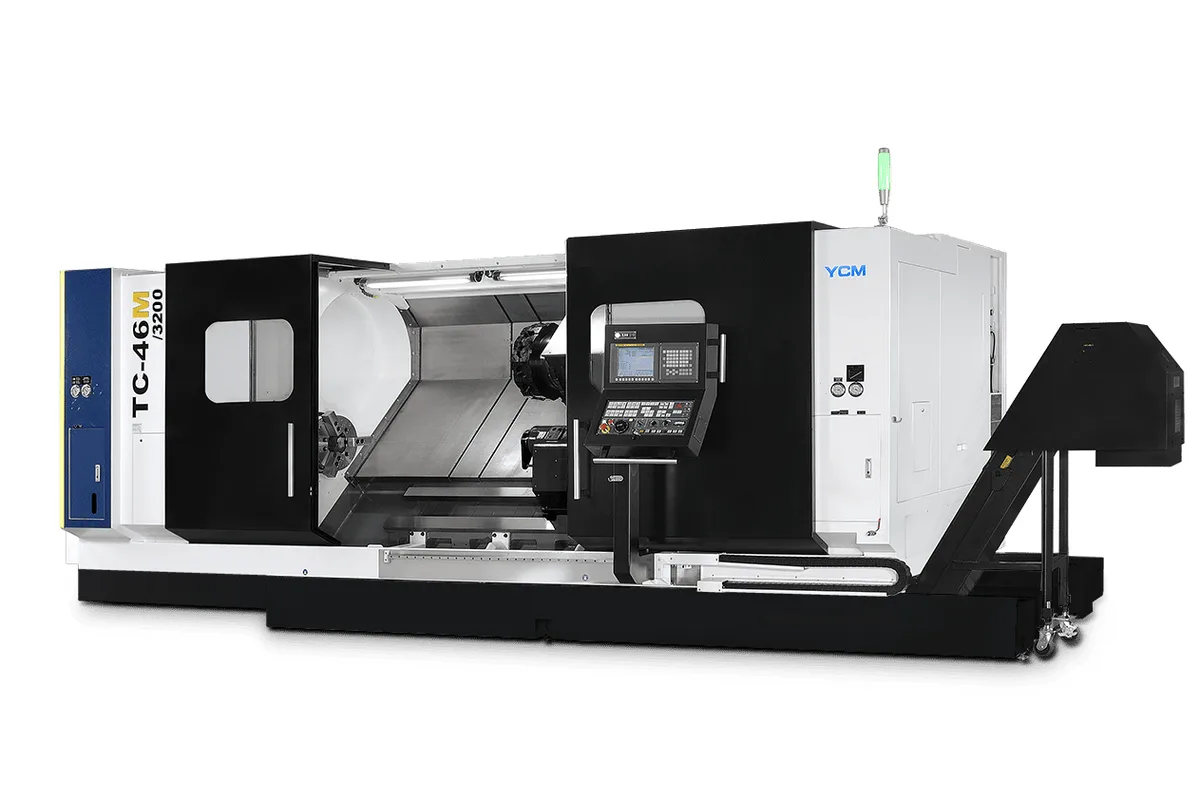

Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle nose
How much does the YCM TC-46M/3200 cost?
Price estimate
We do not have a price for the YCM TC-46M/3200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM TC-46M/3200 adds milling to YCM's longest heavy lathe. A 12-station radial power turret with BMT85 tooling and a C axis on the main spindle sit on a bed that turns ø730 mm (ø28.74 in) over 3,111 mm (122.48 in).
The live tool drive is in a different class from the small turn-mill lathes. Torque is 16.24 kgf-m (117.45 lb-ft) over a speed range of 100~3,000 rpm, and YCM gives the maximum live tool power as 15/18.5/22 kW. That is enough for real milling: keyways in large shafts, flats, splines by milling, and big cross-drilled and tapped holes. The C axis turns at 50 rpm for positioning and contouring.
On a part this size the gain is in handling. A three-metre shaft weighing a tonne or more is slow and risky to move to a boring mill for its keyways and bolt holes; doing them in the lathe removes a crane lift and a second alignment.
Mounting the power turret costs a little envelope against the two-axis TC-46/3200, which turns ø750 mm (ø29.53 in) over 3,200 mm (125.98 in). X travel is 415 mm, printed as 365+50, and the swing over the turret is ø890 mm (ø35.04 in). The gearhead spindle and its 30/37 kW (40/50 HP) motor are carried over, with the quill and gearbox oil-cooled. The tailstock quill stroke is 3,015 mm (118.7 in), rapids are 16 m/min (629.92 ipm) in X and 12 m/min (472.44 ipm) in Z, and the machine weighs 15,500 kg (34,171 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | ø730 mm (ø28.74 in) |
| Max Turning Length | 3,111 mm (122.48 in) |
| Chuck Size | 15" (18", 21") |
| Spindle Nose | A2-11 |
| Spindle Bore | ø130 mm (ø5.12 in) |
| Hole Through Draw Bar | ø117 mm (ø4.61 in) |
| Max Spindle Speed | 1,800 rpm (15") / 1,600 rpm (18") / 1,200 rpm (21") |
| C Axis Speed | 50 rpm |
| X Axis Travel | 415 (365+50) mm |
| Z Axis Travel | 3,200 mm (125.98 in) |
| X Axis Rapid Traverse | 16 m/min (629.92 ipm) |
| X Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~393.7 ipm) |
| Z Axis Rapid Traverse | 12 m/min (472.44 ipm) |
| Z Axis Cutting Feed Rate | 1~10,000 mm/min (0.04~393.7 ipm) |
| Spindle Motor Power | 30/37 kW (40/50 HP) |
| Turret Type | Radial Power Turret (Servo Rotation, Hydraulic Clamping) |
| Turret Stations | 12 stations (BMT85) |
| Live Tool Speed | 100~3,000 rpm |
| Live Tool Torque | 16.24 kgf-m (117.45 lb-ft) |
| Swing Over Turret | ø890 mm (ø35.04 in) |
| Tailstock Quill Taper | MT-5 |
| Tailstock Quill Stroke | 3,015 mm (118.7 in) |
| Machine Weight | 15,500 kg (34,171 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12-station radial power turret with BMT85 tooling
- Live tool torque of 16.24 kgf-m (117.45 lb-ft) at 100~3,000 rpm
- C axis on the main spindle at 50 rpm
- 3,111 mm (122.48 in) turning length with milling in the same setup
- 30/37 kW (40/50 HP) gearhead spindle with oil-cooled quill and gearbox
Limitations
- Turning diameter is ø730 mm (ø28.74 in), slightly less than the two-axis model
- No Y axis is listed, so milling is on the centreline or by C-axis interpolation
- Z rapid is 12 m/min (472.44 ipm)
- Machine weight is 15,500 kg (34,171 lb)
Best For
Frequently Asked Questions
01
A radial power turret with 12 stations and the BMT85 tooling system, servo rotated and hydraulically clamped. Live tool speed is 100~3,000 rpm and torque is 16.24 kgf-m (117.45 lb-ft). YCM gives the live tool power as 15/18.5/22 kW.
02
The TC-46/3200 is a two-axis lathe with a 10-station servo turret, ø750 mm (ø29.53 in) turning diameter and 3,200 mm (125.98 in) turning length. The TC-46M/3200 has a power turret and C axis, and turns ø730 mm (ø28.74 in) over 3,111 mm (122.48 in).
03
A gearhead spindle on an A2-11 nose with a 30/37 kW (40/50 HP) motor. Speed is 1,800 rpm with the 15" chuck, 1,600 rpm with 18" and 1,200 rpm with 21". The through hole is ø130 mm (ø5.12 in) and the C-axis speed is 50 rpm.
04
A programmable tailstock with an MT-5 quill and a stroke of 3,015 mm (118.7 in). In the TC-46 family the tailstock clamps to the guideways with dual cylinders so that it does not skid during machining.
