YCM UV650

Q: How much does the YCM UV650 cost?

The price estimate for the YCM UV650 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-uv650#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

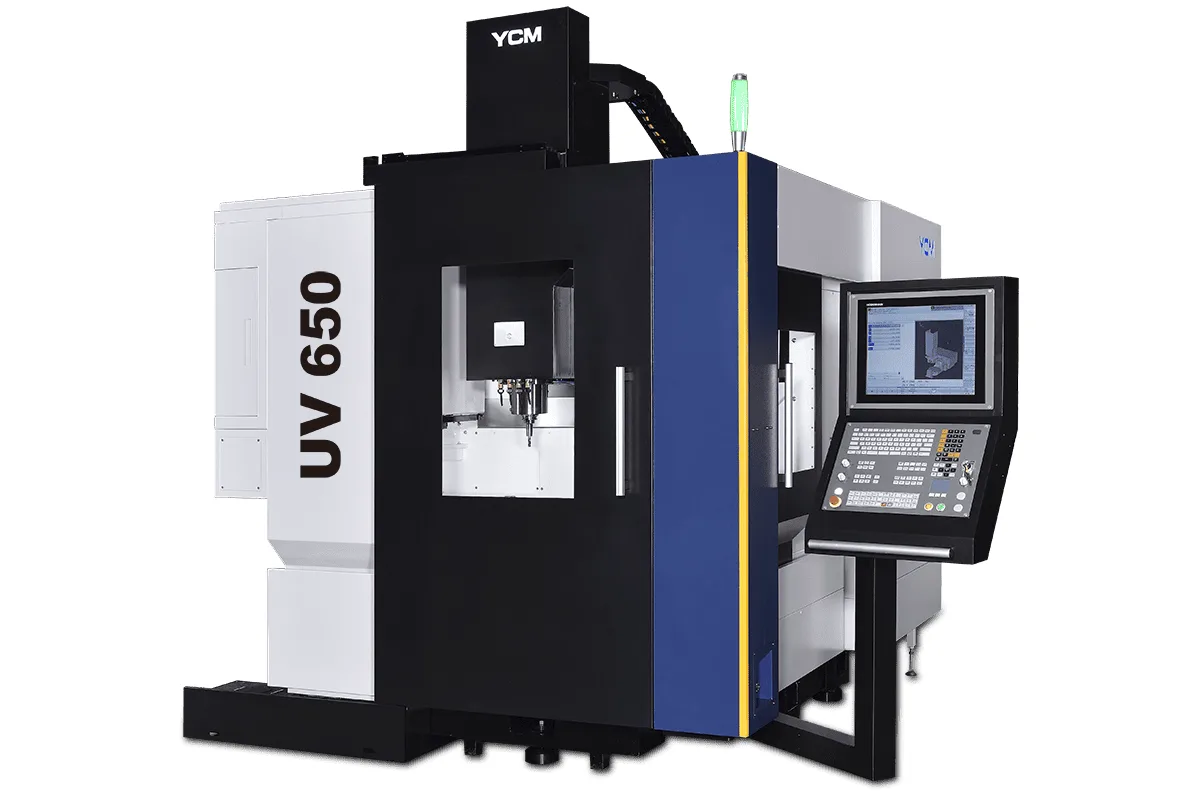

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

40 tools; opt. 60 tools

Table Size

ø650 mm (ø25.6 in)

Spindle Power

17 kW (22.8 HP); opt. 17 kW (22.8 HP)

x axis travel

620 mm (24.4 in)

How much does the YCM UV650 cost?

Price estimate

Uncertain

We do not have a price for the YCM UV650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

YCM describes the UV650 as a simultaneous 5-axis vertical machining center for complex parts. It carries a ø650 mm (ø25.6 in) tilt and rotary table on B and C axes, with linear travels of 620 mm (24.4 in) in X, 520 mm (20.5 in) in Y and 460 mm (18.1 in) in Z.

Measurement is taken at the axes themselves. Linear scales are mounted on X, Y and Z, and rotary encoders on B and C are standard. For 5-axis work this matters more than on a 3-axis machine, because an error in one rotary axis shows up as a position error across the whole part. The tilt range is 200°, from -90° to +110°, and a full circular hydraulic brake clamps both rotary axes for positioned, 3+2 cutting.

Table load depends on tilt angle: 300 kg (661.38 lb) between 0° and 45°, and 200 kg (440.92 lb) between 45° and 90°. Plan heavy parts around the lower figure if they will be machined on their side.

The IDD spindle has a 17 kW (22.8 HP) hollow shaft motor, ceramic bearings and a BBT40 taper, and runs at 12,000 rpm or 15,000 rpm as an option. The hollow shaft is what allows coolant through the spindle to be added. Tool-to-tool time is 1.8 sec from a 40-tool chain magazine, with larger magazines optional. Rapids are 36 m/min (1,417 ipm). A bellows roof can be unlatched and moved back for crane loading, and an optional automatic side door prepares the machine for a robot or pallet system. It weighs 10,000 kg (22,046 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	17 kW (22.8 HP); opt. 17 kW (22.8 HP)
Spindle Taper	BBT40
X Axis Travel	620 mm (24.4 in)
Y Axis Travel	520 mm (20.5 in)
Z Axis Travel	460 mm (18.1 in)
Distance Spindle Center to Table Top	150~610 mm (5.9~24 in)
B Axis Range	200° (-90°~+110°)
Table Size	ø650 mm (ø25.6 in)
T-Slots	5 x 18 x 100 mm
Max Table Load	Load-Horizontal (0°~45°): 300 kg (661.38 lb); Load-Tilting (45°~90°): 200 kg (440.92 lb)
Rapid Traverse Xyz	36/36/36 m/min (1,417/1,417/1,417 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787.40 ipm)
Tool Capacity	40 tools; opt. 60 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	40T: ø76 x 250 (ø125 x 250) (48T/60T: ø76 x 250 (ø125 x 250)) mm
Machine Weight	10,000 kg (22,046 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Linear scales on X, Y and Z and rotary encoders on B and C as standard
ø650 mm (ø25.6 in) tilt-rotary table with a 200° B-axis range
Full circular hydraulic braking on the B and C axes
40-tool chain magazine with a 1.8 sec tool-to-tool time
Roof section that moves back for overhead crane loading

Limitations

Table load falls to 200 kg (440.92 lb) when tilted between 45° and 90°
Spindle power is 17 kW (22.8 HP) on both the standard and optional spindle
Z travel is 460 mm (18.1 in)
The automatic side door for automation is an option

Best For

Simultaneous 5-axis machining of complex parts up to 300 kg (661.38 lb) Accuracy-critical parts that benefit from linear scales and rotary encoders Automated cells with a robot or pallet system through the optional side door

Frequently Asked Questions

01 How much weight can the UV650 table carry?

It depends on the tilt. With the table between 0° and 45° the load is 300 kg (661.38 lb). Tilted between 45° and 90° it is 200 kg (440.92 lb). The table is ø650 mm (ø25.6 in) with T-slots listed as 5 x 18 x 100 mm.

02 What feedback systems does the UV650 have?

Linear scales are mounted on the X, Y and Z axes and high precision rotary encoders on the B and C axes are standard. The linear axes run on roller guideways with pre-tensioned, double-nut, direct drive ball screws.

03 What are the axis travels and tilt range?

X travel is 620 mm (24.4 in), Y is 520 mm (20.5 in) and Z is 460 mm (18.1 in). The B axis covers 200°, from -90° to +110°. Rapid traverse is 36 m/min (1,417 ipm) on the linear axes.

04 What spindle and tool magazine are fitted?

A BBT40 IDD spindle with a 17 kW (22.8 HP) hollow shaft motor, 12,000 rpm as standard and 15,000 rpm as an option. The standard magazine is a 40-tool chain type; the table lists a 60-tool magazine as the option. Tool-to-tool time is 1.8 sec.
