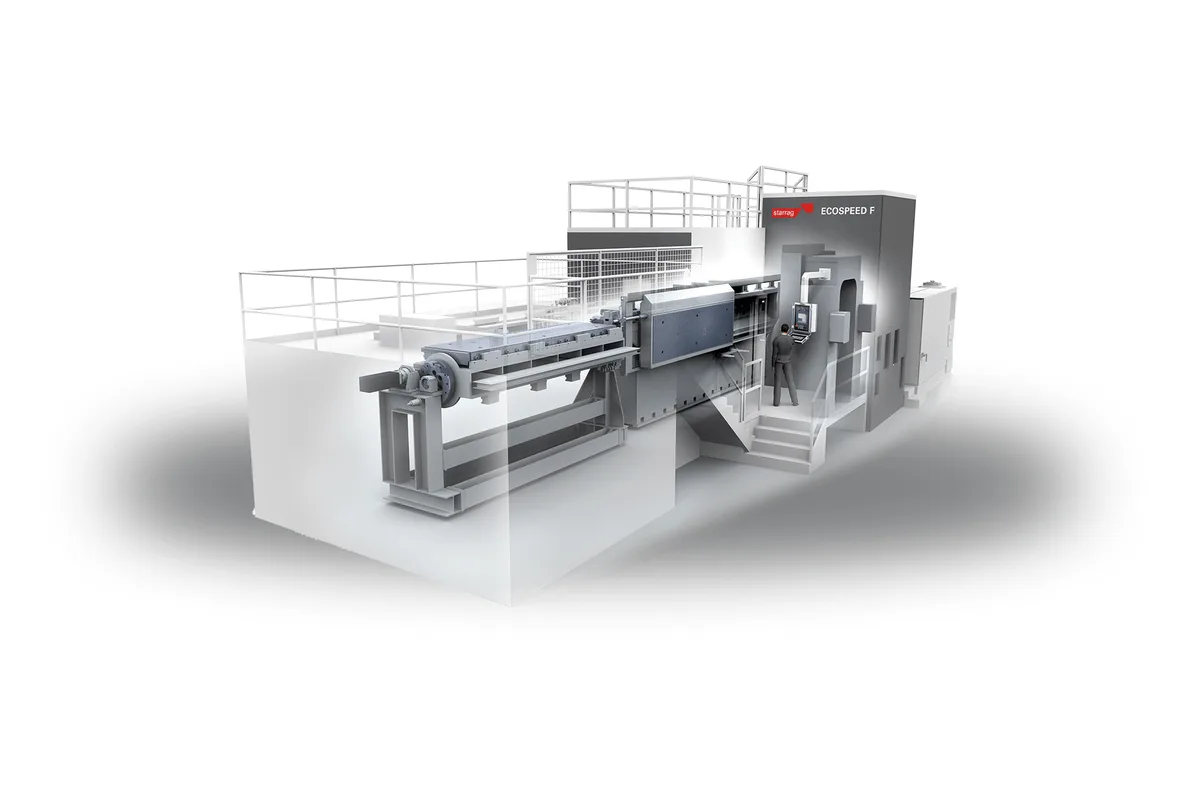

Starrag Ecospeed F 2040 FMS
Image: starrag.com, Starrag
Key Specifications
Spindle Taper
Table Size
Spindle Power
max workpiece weight
machining head
head angular range
How much does the Starrag Ecospeed F 2040 FMS cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Starrag. Configuration moves it a long way.
Overview
The Starrag Ecospeed F 2040 FMS is a 5-axis simultaneous machine for aluminum structural components that is listed with an integrated pallet handling system, the FMS capability its name refers to. The purpose of that arrangement is spindle utilisation. Parts are clamped on pallets away from the working area and exchanged automatically, so the 120 kW spindle is not standing still while an operator sets up.
Otherwise the listed figures match those of the Ecospeed F 1540 row for row. Both show a 4,000 x 1,500 mm (157.5 x 59.1 in) table, 120 kW of real sustained power and an HSK-A63 or HSK-A80 interface. Since the two models are listed with identical table sizes, anyone evaluating a specific machine should confirm its table and pallet dimensions.
Each pallet load is bounded by the listed maximum workpiece weight of 3,000 kg (6,614 lb). Whether that figure includes the fixture is not stated, and on a pallet system the fixture travels with the part, so it needs to be settled before workholding is designed.
Running without an operator also puts weight on the tool side. The WERO rack-type magazine is listed with 129 or 300 pockets and a maximum tool length of 250 mm; a cell working through several part numbers without intervention will usually want the larger rack. The Sprint Z3 parallel kinematic head tilts through ±45°.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 4,000 x 1,500 mm (157.5 x 59.1 in) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Machining Head | Sprint Z3 parallel kinematic |
| Head Angular Range | ±45° |
| Spindle Motor Power | 120 kW (real sustained power) |
| Spindle Taper | HSK-A63 / HSK-A80 |
| Tool Magazine | WERO rack-type, 129 or 300 pockets |
| Max Tool Length | 250 mm |
| Simultaneous Axes | 5-axis simultaneous |
| Fms Capability | Integrated pallet handling system |
| Primary Material | Aluminum structural components |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Integrated pallet handling system, so workpieces can be set up while the machine is cutting
- 120 kW of real sustained spindle power
- Up to 300 pockets in the WERO rack-type magazine, with 129 as the smaller choice
- Sprint Z3 parallel kinematic head for 5-axis simultaneous machining
Limitations
- The listed table size is identical to that of the Ecospeed F 1540, so the dimensions of a specific machine should be confirmed
- The 3,000 kg (6,614 lb) workpiece limit may have to cover whatever travels on the pallet
- Head tilt stops at ±45°, so features beyond that angle need a second setup
- No pallet count, pallet size or spindle speed is listed
Best For
Frequently Asked Questions
01
The table lists an FMS capability described as an integrated pallet handling system. In practice that means workpieces are loaded on pallets and moved to and from the machine automatically. The number of pallets and stations is not listed.
02
In the listed figures, only by the integrated pallet handling system. The Ecospeed F 1540 shows the same 4,000 x 1,500 mm (157.5 x 59.1 in) table, 120 kW spindle power and HSK-A63 or HSK-A80 interface. Since the two are listed with identical table sizes, confirm the actual dimensions of any Ecospeed F 2040 FMS on offer.
03
The listed maximum workpiece weight is 3,000 kg (6,614 lb). The table does not say whether the fixture counts toward it, which matters on a pallet system because fixture and part move together.
04
The spindle interface is listed as HSK-A63 or HSK-A80, and tools are stored in a WERO rack-type magazine with 129 or 300 pockets. Maximum tool length is 250 mm.
