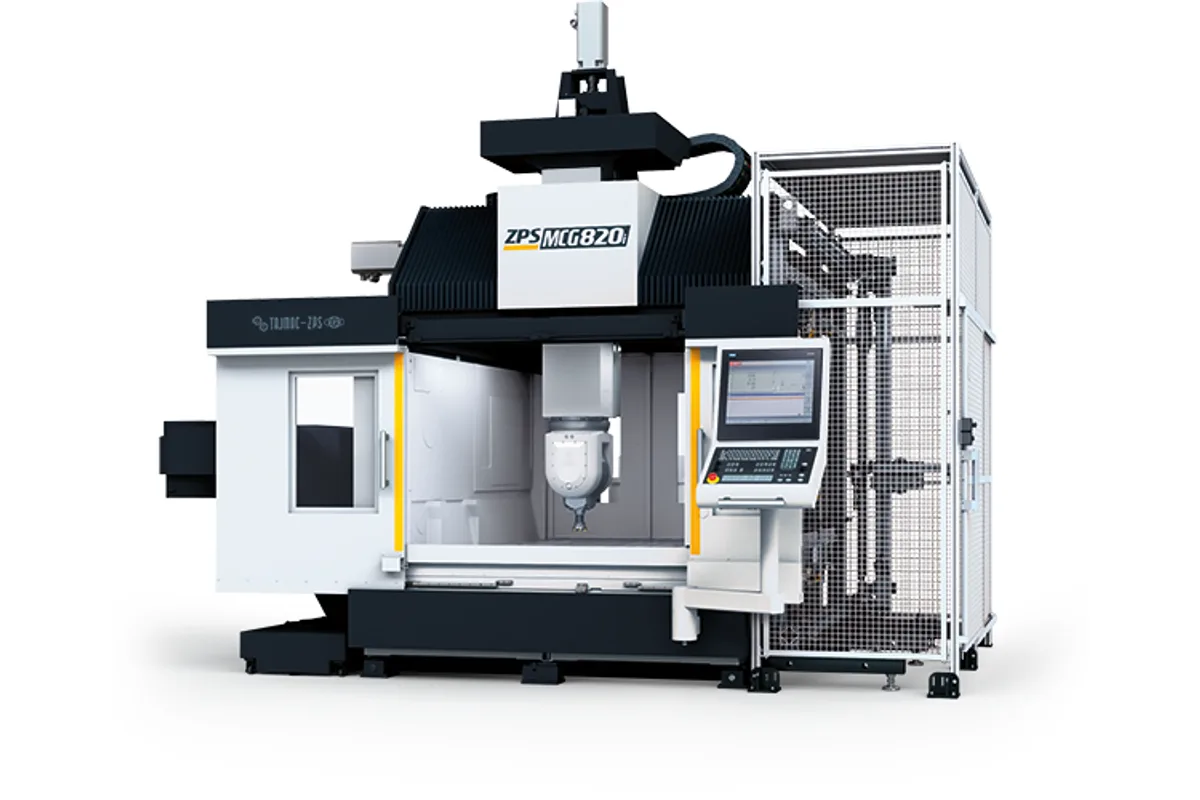

Tajmac-ZPS MCG820i
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
z axis travel
How much does the Tajmac-ZPS MCG820i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCG820i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two work tables under one gantry: the MCG820i stretches the Y axis of the ZPS small gantry to 1,800 mm (70.9 in) and puts a 1,200 × 2,000 mm clamping surface beneath it, made up of two fixed tables. X is 1,000 mm and Z is 600 mm.
The maker describes the arrangement as two separate removable tables, or one fixed and one rotary table, in a common or divided working space. Read that as three ways to use the machine. With the space divided, one side can be loaded while the other is cut. With the space common, a single long mould or plate spans both tables. With a fixed table on one side and the optional two-axis rotary table on the other, three-axis and five-axis jobs share one machine without re-rigging. Each fixed table is rated at 3,000 kg/m2.
Because the travelling parts are the same as on the MCG810i, the performance figures carry over: 40 m/min rapids and feedrate, 5 m/s2, a positioning error of 0.008 mm. So do the electrospindles, ISO-40 at 15,000 rpm, HSK-A63 at 18,000 rpm, HSK-A100 at 14,000 rpm and the HSK-T100 turning spindle at 12,000 rpm, and the optional CyTec two-axis head with its ±115° tilt.
Tool handling is different. Where the MCG810i has a 30-tool drum, this model comes with a rack-type tool changer for 50 tools, expandable to 130. The rack takes tools up to 110 mm in diameter, 8 kg in HSK63 and 15 kg in HSK100, but a change takes 8 s, so it favours long cuts over frequent swaps.
The machine weighs 14,500 kg without optional equipment and its clamping surface is 800 mm above the floor. Standard equipment includes chip conveyors with an integrated coolant tank and a fully enclosed work zone.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| A Axis Range CNC Head | ±115° (optional two-axis CNC head) |
| C Axis Range CNC Head | ±200° (optional two-axis CNC head) |
| A Axis Range Rotary Table | ±95° (optional two-axis rotary table) |
| C Axis Range Rotary Table | 360° (optional two-axis rotary table) |
| Cutting Feed Rate | 40 m/min |
| Rapid Traverse Xyz | 40 m/min |
| Acceleration | 5 m/s2 |
| Table Size | 1,200 × 2,000 mm (47.2 × 78.7 in) |
| Max Table Load | 3,000 + 3,000 kg/m2 |
| Table T Slots | 18H8 mm |
| Rotary Table Size | Ø 600 mm (23.6 in), Ø 800 mm (31.5 in) (optional two-axis rotary table) |
| Rotary Table Max Load | 650 kg (1,433 lb) at tilt ±15°, 450 kg (992 lb) at tilt ±90° (Ø 600 mm table); 560 kg (1,235 lb) and 360 kg (794 lb) with the Ø 800 mm clamping plate |
| Rotary Table Speed | 400 rpm (turning-milling table); 100 rpm (milling table) |
| Distance Spindle Nose to Table | 150 - 750 mm (5.9 - 29.5 in) |
| Distance Spindle Nose to Rotary Table | 25 - 625 mm (1.0 - 24.6 in) |
| Table Height From Floor | 800 mm (31.5 in) |
| Positioning Accuracy | 0.008 mm (ISO 230-2) |
| Repeatability | 0.0034 mm (ISO 230-2) |
| Spindle Unit Iso 40 15000 RPM | 15,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Spindle Unit HSK T100 12000 RPM | 12,000 rpm; 25 / 30 kW (33.5 / 40.2 hp); 119 / 143 Nm (87.8 / 105 lb-ft) |
| Spindle Unit Cytec S8 Head HSK A63 18000 RPM | 18,000 rpm; 17.5 / 23 kW (23.5 / 30.8 hp); 56 / 72 Nm (41.3 / 53.1 lb-ft) |
| Tool Capacity Rack Type Changer | 50 (130 option) |
| Max Tool Diameter Rack Type Changer | 110 mm (4.3 in); 160 mm (6.3 in) without adjacent tools |
| Max Tool Weight Rack Type Changer | 8 kg (18 lb) HSK63; 15 kg (33 lb) HSK100 |
| Tool Change Time Rack Type Changer | 8 s |
| Power Requirement | 3 × 400 V / 50 Hz or 3 × 480 V / 60 Hz |
| Power Input | 45 kVA |
| Full Load Current | 125 A |
| Air Pressure | 0.6 - 0.8 MPa |
| Through Spindle Coolant | 25 - 40 l/min at 55 - 70 bar, 5 µm filtration (optional spindle axial cooling) |
| Machine Weight | 14,500 kg (31,966 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,800 mm (70.9 in) of Y travel over a 1,200 × 2,000 mm (47.2 × 78.7 in) clamping surface
- Two fixed tables, usable as a common or a divided working space
- Rack-type tool changer for 50 tools as standard, with 130 as an option
- Electrospindles up to 18,000 rpm (HSK-A63) or 25 / 37 kW (HSK-A100)
- One table position can take the optional two-axis rotary table for five-axis work
- Direct linear measuring; 0.0034 mm repeatability to ISO 230-2
Limitations
- Rack-type tool change takes 8 s
- X travel is 1,000 mm (39.4 in) and Z 600 mm (23.6 in), the same as the smaller MCG810i
- Two-axis head, rotary table and turning capability are all optional equipment
- The automatic 30-tool changer with its 3.5 s change is listed only for the MCG810i
Best For
Frequently Asked Questions
01
Travels are 1,000 mm in X, 1,800 mm in Y and 600 mm in Z. The fixed clamping plate is 1,200 × 2,000 mm, formed by two fixed work tables, with a maximal load given as 3,000 + 3,000 kg/m2. The spindle nose stands 150 - 750 mm above the fixed table.
02
The maker's description is of a vertical milling centre of upper gantry type with two separate removable tables, or one fixed and one rotary table, in a common or divided working space. That allows one table to be set up while the other is in the cut, or both to carry one long part.
03
A rack-type tool changer with a capacity of 50 tools is standard on the MCG820i, and 130 tools are optional. Tool diameter is 110 mm, or 160 mm without adjacent tools; weight is 8 kg for HSK63 and 15 kg for HSK100. Tool change time is 8 s.
04
The MCG810i has 800 mm of Y travel, a single 1,200 × 1,000 mm table and weighs 11,500 kg. The MCG820i has 1,800 mm of Y, twice the clamping surface, and weighs 14,500 kg. X, Z, feeds, accuracy and the spindle list are common to both.
05
A two-axis CNC head with A ±115° and C ±200°, and a two-axis rotary table of Ø 600 or Ø 800 mm with A ±95° and C 360°. The rotary table carries 650 kg at ±15° of tilt. A turning option for the rotary table with an HSK-T100 spindle is also listed.
