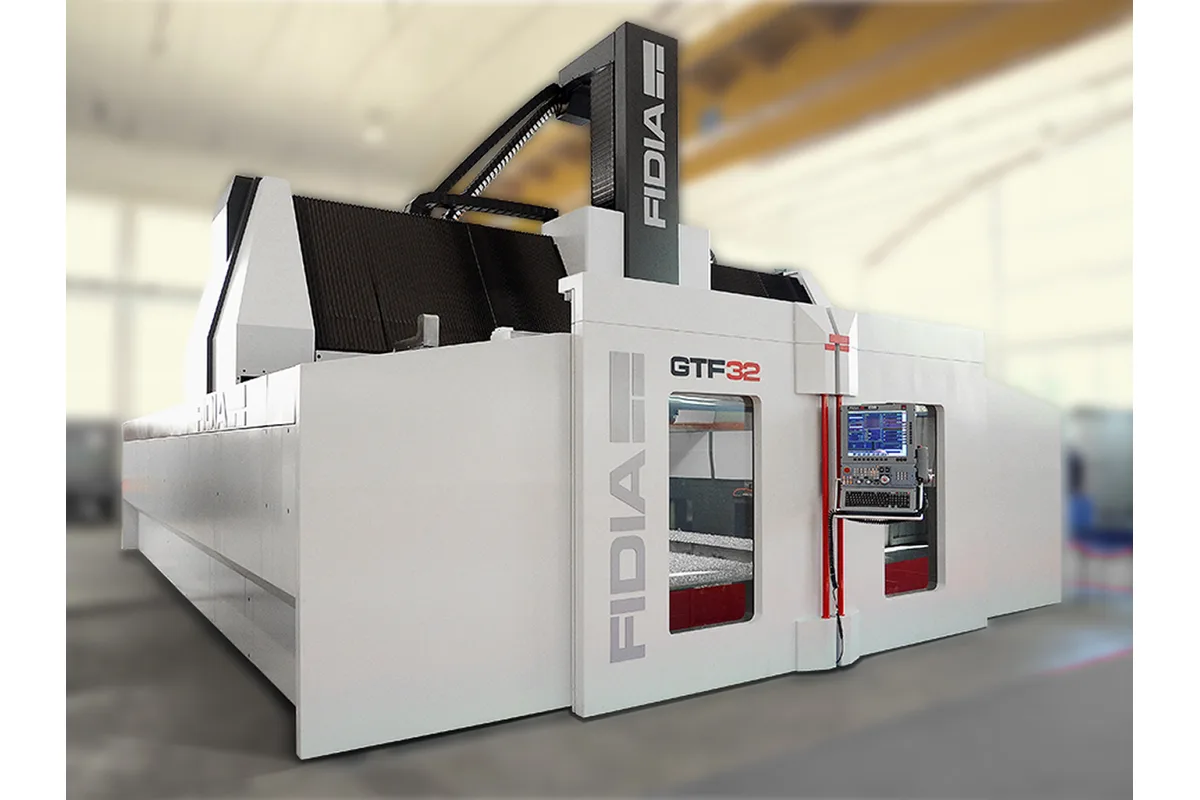

Fidia GTF/L

Specs verified 2026-10-05 · fidia.it Updated 2026-10-05

Image: fidia.it, Fidia

Key Specifications

Max Spindle

24,000 1/min

Spindle Taper

HSK63F or HSK63A

Spindle Power

23 kW (HSK63F) or 35 kW (HSK63A), max

x axis travel

6,000 mm (236 in), 7,500 mm (295 in), 12,000 mm (472 in) or 18,000 mm (709 in)

y axis travel

2,700 mm (106 in), 3,500 mm (138 in) or 4,000 mm (157 in)

z axis travel

1,000 mm (39 in) to 2,500 mm (99 in)

How much does the Fidia GTF/L cost?

Price estimate

Uncertain

We do not have a price for the Fidia GTF/L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Fidia GTF/L is the lightest member of the GTF gantry family, a 5-axis upper-gantry machine for aluminium, composites and full-size automotive styling models. X travel is offered at 6,000 mm (236 in), 7,500 mm (295 in), 12,000 mm (472 in) or 18,000 mm (709 in), with Y at 2,700 mm (106 in), 3,500 mm (138 in) or 4,000 mm (157 in).

Height is the unusual figure. Z travel is listed from 1,000 mm (39 in) to 2,500 mm (99 in), and Fidia builds the structure from welded steel and concrete walls specifically to give wide Z clearance. A full-scale car model or a deep composite lay-up tool needs that daylight far more than it needs cutting force.

The spindle figures confirm the light-duty brief. The bi-rotary continuous head runs at 24,000 1/min with a maximum of 23 kW on HSK63F or 35 kW on HSK63A. The two holder styles are not interchangeable, so decide which family the shop will stock. Fidia names the M5C, a symmetrical bi-rotary head for light alloy machining and finishing, as the head for this version.

Axes move at 60 m/min in X and Y and 40 m/min in Z, and table load capacity is 4,000 kg/m² (819 lbs/sqft). For steel dies and heavier heads, the GTF/R is the stiffer relative, with 9,000 kg/m² (1,843 lbs/sqft).

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236 in), 7,500 mm (295 in), 12,000 mm (472 in) or 18,000 mm (709 in)
Y Axis Travel	2,700 mm (106 in), 3,500 mm (138 in) or 4,000 mm (157 in)
Z Axis Travel	1,000 mm (39 in) to 2,500 mm (99 in)
Axes Speed	X, Y: 60 m/min - Z: 40 m/min
Milling Heads	bi-rotary continuous
Max Spindle Speed	24,000 1/min
Spindle Motor Power	23 kW (HSK63F) or 35 kW (HSK63A), max
Spindle Taper	HSK63F or HSK63A
Table Load Capacity	4,000 kg/m² (819 lbs/sqft)

Specifications sourced from fidia.it — verified 2026-10-05

Strengths & Limitations

Strengths

Z travel up to 2,500 mm (99 in) for tall models and tools
X travel options up to 18,000 mm (709 in)
60 m/min in X and Y and 40 m/min in Z
24,000 1/min bi-rotary continuous head with up to 35 kW
Welded steel structures and concrete walls built for wide Z clearance

Limitations

Maximum spindle power is 35 kW, so this is not a machine for steel roughing
Table load capacity of 4,000 kg/m² (819 lbs/sqft) is less than half that of the GTF/R, at 9,000 kg/m² (1,843 lbs/sqft)
The shortest X travel offered is 6,000 mm (236 in)
Concrete walls make the installation a building project

Best For

1:1 automotive styling models in clay and resin Large aluminium parts with complex 5-axis surfaces Composite parts and lay-up tools needing up to 2,500 mm (99 in) of Z

Frequently Asked Questions

01 What is the Fidia GTF/L used for?

Fidia describes it as particularly suitable for complex aluminum or composite parts and 1:1 automotive styling models. It is the lightest version of the GTF family, built with welded steel structures and concrete walls to give wide Z clearance.

02 What travels are available on the GTF/L?

X is 6,000 mm (236 in), 7,500 mm (295 in), 12,000 mm (472 in) or 18,000 mm (709 in). Y is 2,700 mm (106 in), 3,500 mm (138 in) or 4,000 mm (157 in). Z is from 1,000 mm (39 in) to 2,500 mm (99 in).

03 What spindle does the GTF/L have?

The bi-rotary continuous head is listed at 24,000 1/min with a maximum power of 23 kW on an HSK63F toolholder or 35 kW on HSK63A. Fidia names the M5C head for this version, a symmetrical bi-rotary head for light alloy machining and finishing.

04 How fast are the GTF/L axes?

X and Y move at 60 m/min and Z at 40 m/min. That is faster than the standard 30 m/min of the GTF/R, which fits the lighter structure and the lighter materials this version is meant for.
