Anderson DM-750
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Rapid Traverse
Repeatability
How much does the Anderson DM-750 cost?
Price estimate
We do not have a price for the Anderson DM-750 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anderson DM-750 is the 700 mm (27.6 in) X travel model of Anderson's DM production machining centers, built for fast drilling, tapping and light milling. Its table is 800 × 510 mm (31.5 × 20.1 in) and takes 250 kg (551 lb). Machine weight is 4,300 kg (9,480 lb).
It weighs barely more than the DM-550, which is listed at 4,200 kg (9,259 lb), so the two appear to share a frame and differ mainly in the table and X axis. The extra travel comes almost free in floor loading. What it buys is room for two fixtures side by side, or one long part such as a heat sink, a rail or a housing with features along its length.
Speed between features is the design priority. Rapid traverse is 48 m/min, 60 as an option, and Anderson says the high traverse rates are there to cut non-cutting time. The spindle is listed at 12,000-24,000 RPM on an ISO-40 taper, with ISO-30 as the alternative. Repeatability is ±0.004 mm, and Anderson attributes consistency across production runs to roller guideways.
Two tool changers appear in the table. The arm type changes in 2.5 sec and keeps the full 500 mm (19.7 in) of Z. The turret changes in 1.4 sec and limits Z to 400 mm (15.7 in). Capacity is 24 tools, with 30 as an option. Y travel is 520 mm (20.5 in), or 550 mm optionally.
Anderson publishes no detail page for the DM models, only a comparison table. Spindle power, tool dimensions, coolant and footprint are not given, and neither is the control model, beyond a list of four makes: FANUC, Mitsubishi, Heidenhain and Siemens.
Full Specifications
| Parameter | Value |
|---|---|
| Machine Type | 3-Axis VMC |
| Table Size | 800 × 510 mm (31.5 × 20.1 in) |
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 520 mm (20.5 in); 550 mm (21.7 in) opt |
| Z Axis Travel | 500 mm (19.7 in); 400 mm (15.7 in) Turret |
| Max Spindle Speed | 12,000-24,000 RPM |
| Spindle Taper | ISO-40 (ISO-30) |
| Tool Capacity | 24 tools (30 tools opt) |
| Tool Change Time | 2.5 sec Arm / 1.4 sec Turret |
| Max Table Load | 250 kg (551 lb) |
| Rapid Traverse Rate | 48 m/min (60 opt) |
| Repeatability | ±0.004 mm |
| Machine Weight | 4,300 kg (9,480 lb) |
Specifications sourced from andersonvmc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 700 mm (27.6 in) of X travel on an 800 × 510 mm (31.5 × 20.1 in) table
- Table load of 250 kg (551 lb)
- Choice of arm changer at 2.5 sec or turret at 1.4 sec tool-to-tool
- 48 m/min rapid traverse with a 60 option
- Four control makes offered: FANUC, Mitsubishi, Heidenhain or Siemens
Limitations
- Turret changer reduces Z travel to 400 mm (15.7 in)
- Magazine is 24 tools, 30 at most as an option
- No published spindle power or torque
- Y travel of 520 mm (20.5 in) is the same as on the DM-550
Best For
Frequently Asked Questions
01
The table is 800 × 510 mm (31.5 × 20.1 in). X travel is 700 mm (27.6 in), Y travel 520 mm (20.5 in) with 550 mm (21.7 in) optional, and Z travel 500 mm (19.7 in), or 400 mm (15.7 in) when the turret tool changer is fitted. Maximum table load is 250 kg (551 lb).
02
The turret is faster, 1.4 sec tool-to-tool against 2.5 sec for the arm, and suits cycles made of many short drilling and tapping operations. The arm type keeps 500 mm (19.7 in) of Z travel where the turret allows 400 mm (15.7 in). Choose by cycle content and by fixture height.
03
48 m/min, with 60 listed as an option. Anderson says the high-speed traverse rates minimize non-cutting time. Repeatability is listed as ±0.004 mm. The table does not give a positioning accuracy or a cutting feed rate.
04
Anderson lists FANUC, Mitsubishi, Heidenhain or Siemens for its production machining centers. The comparison table does not name the control model for the DM-750, so the control and its drilling and tapping cycles should be specified in the quotation.
More from Anderson
Other Vertical Machining Centers (VMC)

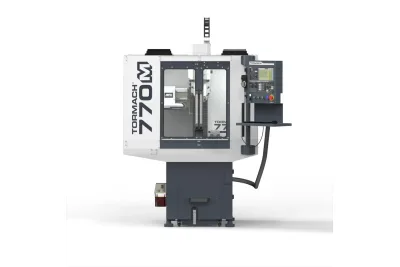

Tormach 770M
