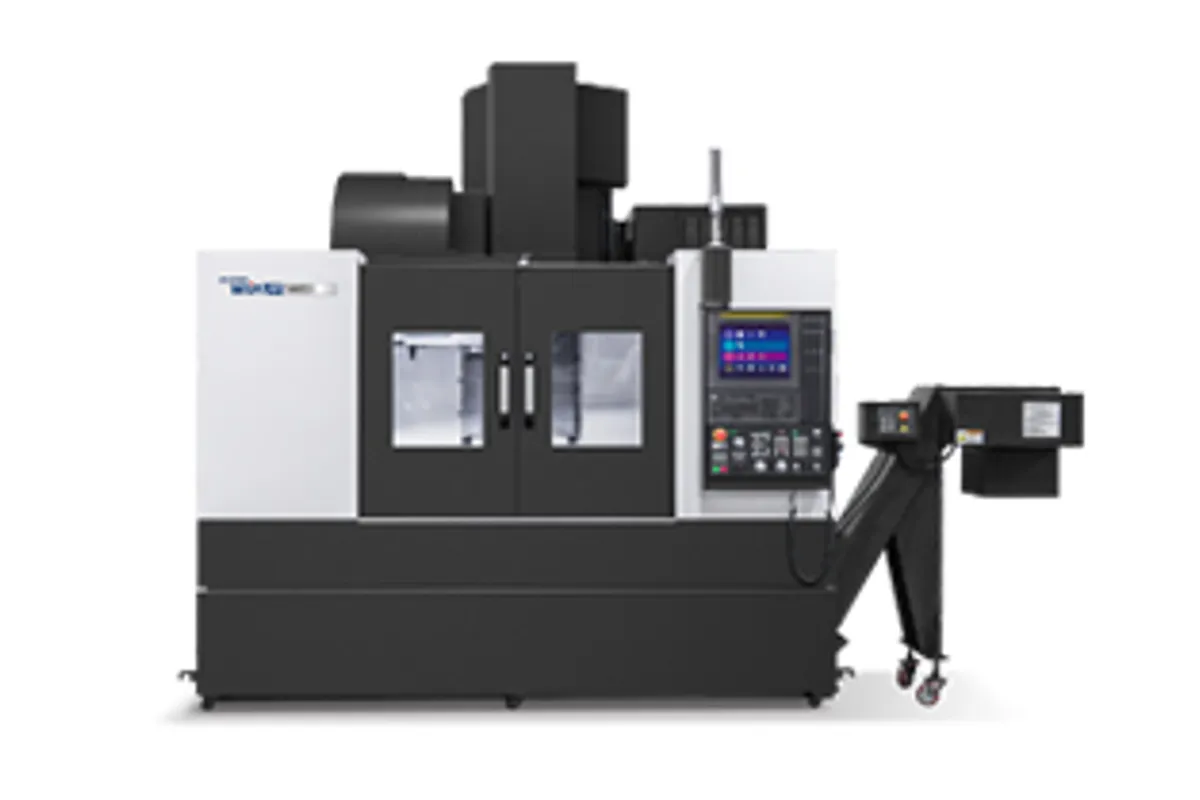

Hyundai WIA KF5600 II Standard Type
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Hyundai WIA KF5600 II Standard Type is the second-generation mid-size vertical machining center in the KF lineup, offering enhanced thermal management and structural improvements over the original KF5600. The Standard Type configuration features an HSK-A63 spindle at 12,000 RPM, positioned as the general-purpose workhorse for shops machining steel, aluminium, and cast iron across varied applications.
Travel is 1,100 x 560 x 520 mm (43.3 x 22.0 x 20.5 in) with a 1,250 x 560 mm (49.2 x 22.0 in) table rated for 1,000 kg (2,205 lb). The extended X-travel of 1,100 mm is a significant advantage over compact VMCs, accommodating longer parts and multi-fixture setups that exceed the reach of 600-800 mm X-travel machines. The HSK-A63 spindle delivers 118 / 52.5 Nm of torque with 18.5/15 kW (25/20 hp) through a direct-drive motor.
Rapid traverse rates of 36 m/min (1,417 ipm) in X and Y and 30 m/min (1,181 ipm) in Z maintain competitive non-cutting times across the expanded travel envelope. The 30-tool arm-type ATC (40-tool optional) provides adequate capacity for most production programs. Linear roller guideways on all axes deliver the combination of speed and accuracy that modern production machining demands.
The FANUC i-Series control is standard with nano-interpolation for smooth surface finishes. The II generation includes improved thermal compensation using strategically placed sensors, stiffer column and base castings, and enhanced coolant system design. At $95,000-$140,000 new, the KF5600 II Standard Type offers 1,100 mm X-travel with HSK-A63 rigidity at a price point that undercuts comparable Mazak, Okuma, and DMG Mori machines by 15-25%.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,100 mm (43.3 in) |
| Y-Axis Travel | 560 mm (22.0 in) |
| Z-Axis Travel | 520 mm (20.5 in) |
| Table Size | mm |
| Table Load Max | 1,000 kg (2,205 lb) |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | HSK-A63 |
| Spindle Torque | N.m |
| Spindle Motor Power | kW |
| Spindle Drive | Direct drive |
| Tool Capacity | 30 (40 optional) |
| Tool Changer Type | Servo-driven arm type |
| Rapid Traverse Xy | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Guideway Type | Linear roller guideways |
| CNC Control | FANUC i-Series |
| Coolant Options | Flood, through-spindle, MQL |
| Machine Weight | 9,500 kg (20,944 lb) approx. |
| Description | Unit |
| Max Load Capacity | kg |
| Spindle Rpm | r/min |
| Travel | mm |
| Rapid Feed Rate | m/min |
| No Of Tools | EA |
| Tool Change Time | sec |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,100 mm X-travel handles longer parts and multi-fixture setups that exceed the reach of compact 600-800 mm VMCs
- HSK-A63 spindle interface provides superior tool rigidity and repeatability versus BT40 at equivalent speeds
- Second-generation thermal compensation and stiffer castings improve accuracy during sustained production runs
- 118 Nm spindle torque delivers strong roughing performance in steel without sacrificing 12,000 RPM finishing capability
- 15-25% lower pricing than comparable Mazak, Okuma, and DMG Mori mid-size VMCs with HSK spindles
- Direct-drive spindle motor reduces vibration and maintenance compared to belt-driven alternatives
Limitations
- HSK-A63 tooling costs more than BT40, adding $3,000-$5,000+ when building a complete tool library from scratch
- 520 mm Z-travel may limit tall workpieces or deep-cavity mold work requiring extended tool reach
- Hyundai WIA brand recognition in North America still trails established names like Mazak, Haas, and Okuma
- 36 m/min rapids are competitive but slower than the 48 m/min the smaller KF4600 II achieves
Best For
Frequently Asked Questions
01
The KF5600 II features improved thermal compensation using additional temperature sensors, stiffer column and base castings for reduced deflection, enhanced chip and coolant management, and updated FANUC i-Series control with nano-interpolation. The travel envelope and spindle specifications remain similar, but production accuracy and long-term reliability are improved.
02
The Standard Type uses a 12,000 RPM HSK-A63 spindle balanced for general-purpose machining across multiple materials. The High Speed Type upgrades to 15,000-20,000 RPM for aluminium-dominant shops needing maximum surface speed. Both share the same frame, travel, and table. Choose Standard for mixed-material shops; choose High Speed for aluminium-focused production.
03
New KF5600 II Standard Type machines sell in the $95,000-$140,000 range depending on options. Through-spindle coolant, expanded ATC, probing, and chip conveyor options add $10,000-$25,000 to the base price. Used first-generation KF5600 machines are available from $55,000-$90,000.
04
Yes, the KF5600 II offers comparable or better X-travel (1,100 vs 1,016 mm), faster rapids (36 vs 25.4 m/min), and HSK-A63 spindle rigidity versus the VF-3 BT40. The Haas has a larger dealer network and lower tooling cost with BT40. For shops prioritising performance per dollar and willing to invest in HSK tooling, the KF5600 II is a strong alternative.
