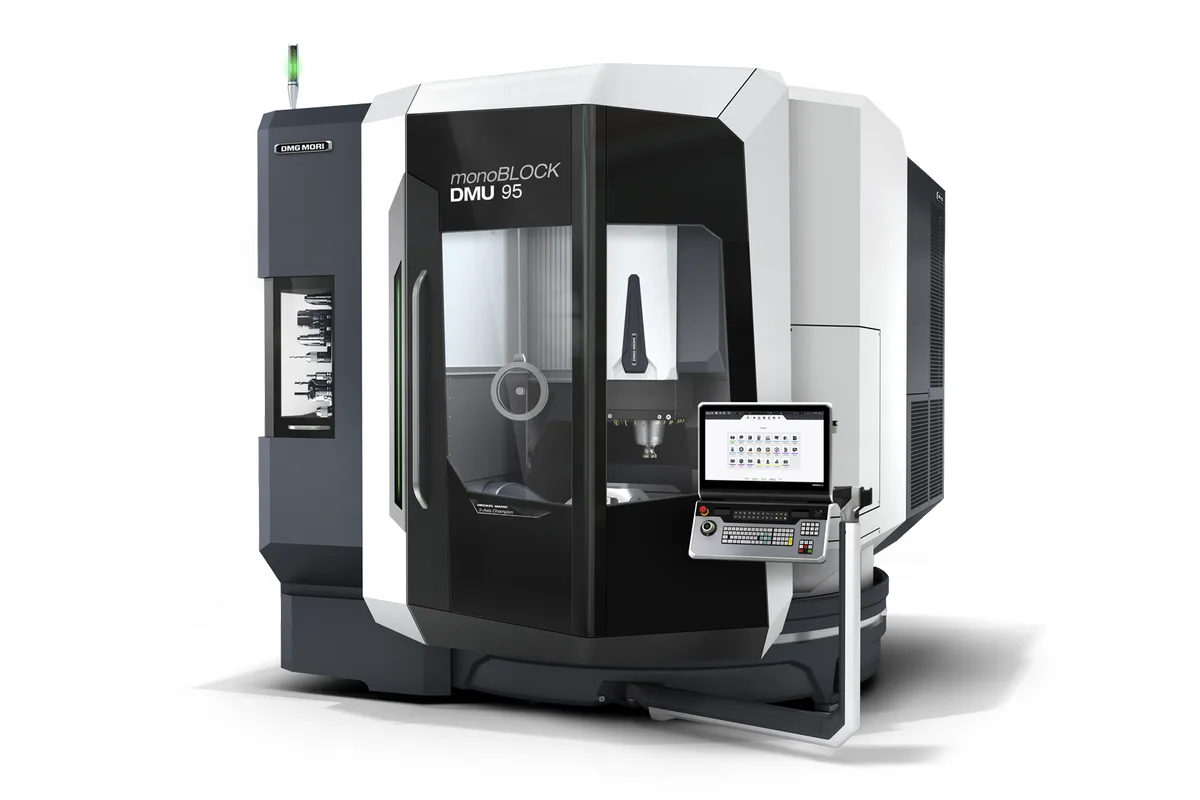

DMG Mori DMU 95 monoBlock

$420,000 – $650,000 Updated 2026-03-17

Key Specifications

Spindle Taper

HSK-A63

X axis travel mm

900

Y axis travel mm

800

Z axis travel mm

700

B axis swivel deg

-35 / +110

C axis rotation deg

360

Overview

The DMG Mori DMU 95 monoBlock is a high-rigidity 5-axis machining center built on DMG Mori's signature monolithic cast-iron base, which eliminates the jointed interfaces found in multi-component machine structures. This monoBLOCK construction delivers superior thermal stability and vibration damping, translating directly into tighter tolerances and better surface finish on demanding 5-axis work.

With a 950 mm diameter swiveling rotary table and a generous 700 kg maximum load capacity, the DMU 95 monoBlock handles larger aerospace structural parts, heavy mold inserts, and precision gear blanks that exceed the reach of compact 5-axis machines. The B-axis swivel range of −35° to +110° provides access to demanding undercut geometries and near-vertical surfaces in a single setup.

Spindle options range from a production-oriented 18,000 rpm motor spindle to a high-torque 15,000 rpm variant capable of sustained hard milling in die steels. The FD (FräsDreh) version adds turning functionality through a high-speed C-axis with up to 800 rpm, enabling complete prismatic-plus-rotational machining in one clamping — a significant cycle time advantage for complex components.

The DMU 95 monoBlock is controlled via CELOS with Heidenhain TNC 640 or Siemens 840D sl and supports integration with DMG Mori's PH Cell automated pallet handling systems. It occupies the productive mid-range of DMG Mori's monoBlock lineup, bridging the DMU 65 and the large-format DMU 125 monoBlock.

Full Specifications

Parameter	Value
X Axis Travel Mm	900
Y Axis Travel Mm	800
Z Axis Travel Mm	700
B Axis Swivel Deg	-35 / +110
C Axis Rotation Deg	360
Table Diameter Mm	950
Max Table Load Kg	700
Spindle Speed Rpm	18000
Spindle Power KW	35
Spindle Torque Nm	200
Spindle Taper	HSK-A63
Rapid Traverse M Min	40
Tool Storage Capacity	30
Max Tool Diameter Mm	160
Max Tool Length Mm	400
Max Tool Weight Kg	15
Fd C Axis Speed Rpm	800 (FD option)
Positioning Accuracy Mm	0.005
Repeatability Mm	0.003
CNC Control	Heidenhain TNC 640 / Siemens 840D sl (CELOS)
Machine Weight Kg	28000
Developer	Apple
Popularity	4.2\|3419Votes
37 In	950 mm
33 In	850 mm
26 In	650 mm
41 In	1,040 mm
23 In	590 mm
2205 Lbs	1,000 kg
Customer Benefits	MPC Graph: current and learned process values. / MPC Diagnostics: stock condition, number of impact and crash.

Specifications sourced from en.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

MonoBLOCK one-piece cast-iron base provides exceptional rigidity and thermal stability
950 mm table diameter and 700 kg load capacity handle large aerospace and mold work
Wide B-axis swivel range of −35° to +110° enables full undercut access in a single setup
FD mill-turn option adds turning capability without a second machine setup

Limitations

Higher price than eVo-series or standard VMCs of equivalent X/Y/Z travel
28,000 kg machine weight demands reinforced flooring and heavy-lift installation
HSK-A63 taper limits maximum torque for the heaviest roughing compared to HSK-A100 options

Best For

Aerospace structural components including frames, brackets, and engine mounts Large mold and die inserts requiring hard milling and 5-axis contouring Energy and power generation parts such as impellers, casings, and bearing housings

Frequently Asked Questions

01 What makes the monoBlock construction better than a standard frame design?

The monoBlock uses a single cast-iron structure rather than a bolted assembly, eliminating interface joints that can introduce micro-deflection under cutting forces or thermal gradients. This results in higher volumetric accuracy and better surface finish, particularly during extended 5-axis contouring cycles.

02 What is the B-axis swivel range on the DMU 95 monoBlock?

The B-axis swivels from −35° to +110°, one of the wider ranges in the monoBlock series. This allows the spindle to tilt past vertical for undercut machining and provides maximum flexibility for five-sided and full 5-axis simultaneous work.

03 Is the DMU 95 monoBlock available with an integrated turning function?

Yes. The FD variant adds a motorized C-axis with up to 800 rpm rotation, enabling the machine to perform turning and mill-turn operations in addition to 5-axis milling, eliminating the need to transfer parts to a separate lathe for rotational features.
