Mazak VCC-2000
This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak VCC-2000 cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak VCC-2000 is a large 50-taper vertical machining center with listed travels of 2,000 × 1,000 × 700 mm (78.7 × 39.4 × 27.6 in) and a 2,200 x 1,000 mm (86.6 x 39.4 in) table. It is not part of Mazak's current lineup. The figures here are the listed ones and should be checked against the documents of any machine on offer.
The standard spindle is listed at 6,000 RPM on a CAT 50 taper, with 22 kW (30 hp) and 550 Nm (406 ft-lb), both at 25% ED. That is a low-speed, high-torque combination for large cutters in steel and cast iron. The table also shows a 15,000 RPM option and an HSK-A100 taper option, which would make for a very different machine, so the first question about a used example is which spindle it has. No continuous rating is listed.
Y travel equals the table width at 1,000 mm (39.4 in), so the spindle covers the table front to back, and the table is slightly longer than the 2,000 mm (78.7 in) of X. Maximum workpiece weight is listed at 3,000 kg (6,614 lb). For a table of this area that is a modest figure, and on solid steel blocks it will be reached before the travels are.
Rapids are 24 m/min (945 ipm) on all three axes. The magazine holds 40 tools, with 80 optional. Through-spindle coolant is an option at 70 bar and not standard, so check whether it was fitted. Machine weight is listed at 30,000 kg (66,139 lb), which calls for a foundation and a rigging plan to match. The listed control is MAZATROL SmoothG.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 2,000 mm (78.7 in) |
| Y-Axis Travel | 1,000 mm (39.4 in) |
| Z-Axis Travel | 700 mm (27.6 in) |
| Max Spindle Speed | 6,000 RPM (15,000 RPM optional) |
| Spindle Taper | CAT 50 (HSK-A100 optional) |
| Spindle Motor Power | 22 kW (30 hp) at 25% ED |
| Spindle Torque | 550 Nm (406 ft-lb) at 25% ED |
| Table Size | 2,200 x 1,000 mm (86.6 x 39.4 in) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Rapid Traverse X | 24 m/min (945 ipm) |
| Rapid Traverse Yz | 24 m/min (945 ipm) |
| Tool Capacity | 40 tools standard (80 optional) |
| Through Spindle Coolant | Optional (70 bar) |
| Machine Weight | 30,000 kg (66,139 lb) |
| CNC Control | MAZATROL SmoothG CNC |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 550 Nm (406 ft-lb) of spindle torque at 25% ED on a CAT 50 taper
- Listed travels of 2,000 × 1,000 × 700 mm (78.7 × 39.4 × 27.6 in)
- Y travel of 1,000 mm (39.4 in) covers the full width of the 2,200 x 1,000 mm (86.6 x 39.4 in) table
- 40-tool magazine as standard, with 80 tools optional
- A 15,000 RPM spindle and an HSK-A100 taper are listed as options
Limitations
- Not in Mazak's current lineup, so the listed figures need confirming on the machine
- Standard spindle speed is 6,000 RPM, which limits small tools and aluminium work
- Maximum workpiece weight of 3,000 kg (6,614 lb) is low for a 2,200 x 1,000 mm (86.6 x 39.4 in) table
- Through-spindle coolant at 70 bar is optional, not standard
- Power and torque are given at 25% ED only; no continuous rating is listed
Best For
Frequently Asked Questions
01
It is not in Mazak's current lineup. For a used machine, confirm the spindle first: the listed table shows a 6,000 RPM CAT 50 spindle as standard, with a 15,000 RPM spindle and an HSK-A100 taper as options, and those are very different machines to own.
02
Listed travels are 2,000 mm (78.7 in) in X, 1,000 mm (39.4 in) in Y and 700 mm (27.6 in) in Z. The table is 2,200 x 1,000 mm (86.6 x 39.4 in) and the maximum workpiece weight is 3,000 kg (6,614 lb).
03
The listed figure is 550 Nm (406 ft-lb) at 25% ED, with 22 kW (30 hp) at 25% ED, on the 6,000 RPM CAT 50 spindle. Both are short-time ratings. No continuous power or torque is listed, so long roughing cuts should be planned with a margin.
04
Only as an option. The listed table gives through-spindle coolant as optional at 70 bar, so a given machine may or may not have it. Check for the pump and rotary union on the machine itself, since deep drilling with long 50-taper tools depends on it.
05
The FJV-35/80 has the same X travel, 78.74 in (2,000 mm), and the same load limit, 6,614 lb (3,000 kg), with 31.5 in (800 mm) of Y and 25.98 in (660 mm) of Z. The VCC-2000 is listed with 1,000 mm (39.4 in) of Y and 700 mm (27.6 in) of Z. The FJV-35/80 runs to 10,000 rpm, where the standard VCC-2000 spindle is listed at 6,000 RPM. Their torque figures are on different ratings and should not be set side by side.
More from Yamazaki Mazak
Other Vertical Machining Centers (VMC)
Haas VM-3
Vision Wide NF-8023 / NF-8030

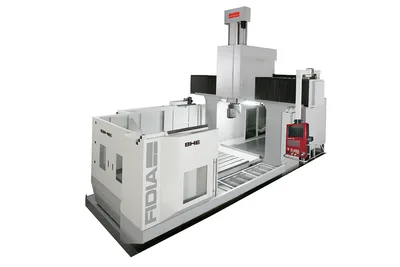

Fidia BHE
Okuma MA-550V

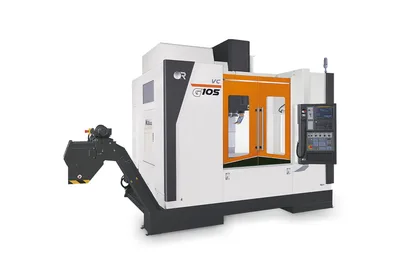

Victor Taichung Vcenter-G105
