Haas Automation Vertical Machining Centers (VMC)

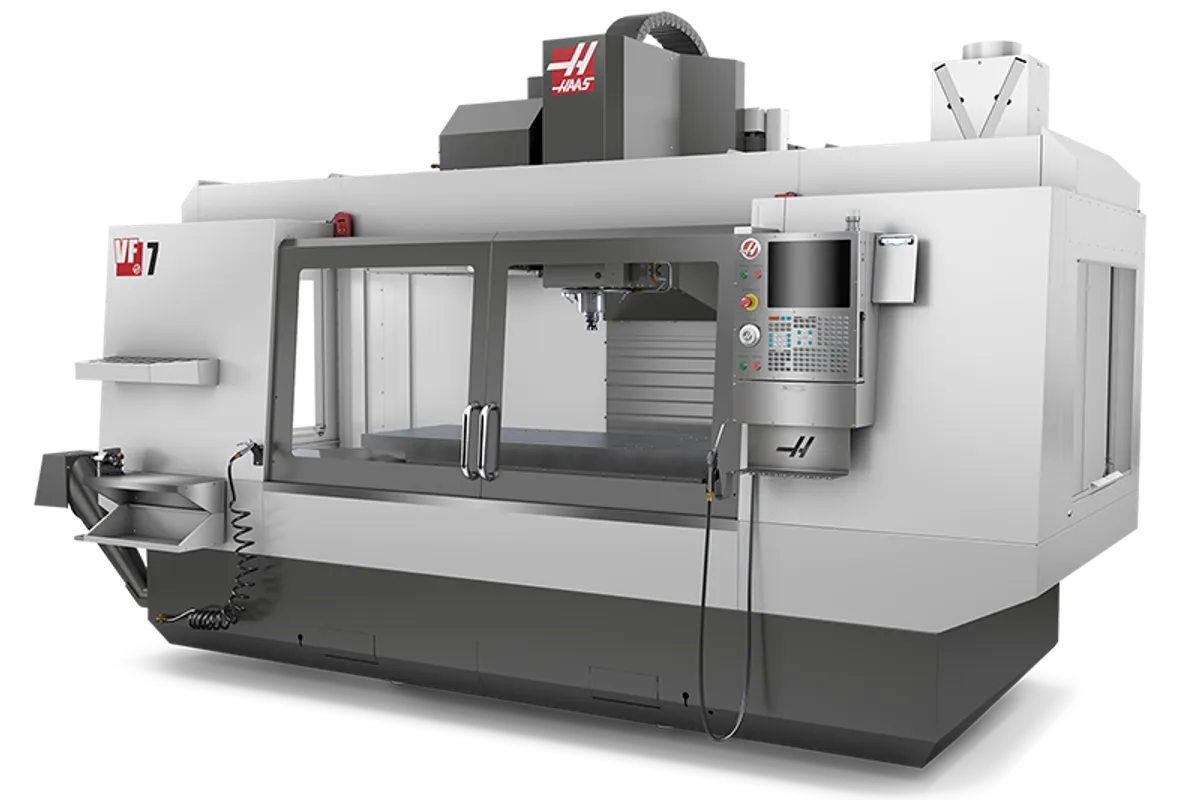

Haas VF-7/40

List US$188,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

84 in (2,134 mm)

Y Travel

32 in (813 mm)

Z Travel

30 in (762 mm)

Max Spindle

8,100 rpm

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1

How much does the Haas VF-7/40 cost?

Manufacturer list price

US$188,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

Length is what the Haas VF-7/40 sells. X travel is 84 in (2,134 mm) over an 84 × 28 in (2,134 × 711 mm) table, with 32 in (813 mm) of Y and 30 in (762 mm) of Z, under a 40-taper inline direct-drive spindle that runs to 8,100 rpm. That shape suits extrusions, rails, long plates and bar stock, or a line of vises worked as separate stations in one cycle.

The table is three times as long as it is wide, and that proportion decides how it gets used. Five T-slots on 4.92 in (125 mm) centres give the clamping pattern, and the load limit is 4,000 lb (1,814 kg). A long part sits along X with room to spare in Y; a square part that needs depth is better served by the VF-9/40, which keeps the 84 in X travel and adds a 40 in (1,016 mm) Y stroke over an 84 × 36 in (2,134 × 914 mm) table.

The spindle is rated 30 hp (22.4 kW) and 90 ft-lbf (122 N·m) at 2,000 rpm. For lower-speed work Haas lists an optional gearbox at 250 ft-lbf (339 N·m) at 450 rpm. Buyers who need more than that should look at the VF-7/50, with 340 ft-lbf (460 N·m) at 700 rpm through a CT or BT 50 taper, and buyers who need speed at the VF-7SS, with 12,000 rpm but a 2,000 lb (907 kg) table limit.

Rapids are 600 ipm (15.2 m/min) on every axis, so an end-to-end move along X is not instant, and programs that hop between stations at opposite ends of the table will show it. The side-mount changer holds 30+1 tools and swaps them in 2.8 s. Haas's starting price is US$188,995. Shipping weight is 25,600 lb (11,612 kg) on a pallet 214 × 102 × 128.5 in (544 × 260 × 326 cm).

Full Specifications

Parameter	Value
X-Axis Travel	84 in (2,134 mm)
Y-Axis Travel	32 in (813 mm)
Z-Axis Travel	30 in (762 mm)
Spindle Nose to Table (max)	34 in (864 mm)
Spindle Nose to Table (min)	4 in (102 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	8,100 rpm
Spindle Torque	90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm)
Spindle Torque (optional gearbox)	250 ft-lbf @ 450 rpm (339 N·m @ 450 rpm)
Spindle Drive	Inline Direct-Drive
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Table Size	84 × 28 in (2,134 × 711 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slot Center Distance	4.92 in (125 mm)
T-Slots	5
Max Table Load	4,000 lb (1,814 kg)
Max Cutting Feedrate	500 ipm (12.7 m/min)
Rapid Traverse Rate	600 ipm (15.2 m/min)
Max Thrust X	3,400 lbf (15,124 N)
Max Thrust Y	3,400 lbf (15,124 N)
Max Thrust Z	5,600 lbf (24,910 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	2.5 in (64 mm)
Max Tool Diameter (adjacent pockets empty)	5 in (127 mm)
Max Tool Diameter Extra Large Adjacent Empty	6 in (152 mm)
Max Tool Length	16 in (406 mm)
Max Tool Weight	12 lb (5.4 kg)
Tool Change (tool-to-tool)	2.8 s
Tool Change (chip-to-chip)	3.6 s
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	214 × 102 × 128.5 in (544 × 260 × 326 cm)
Shipping Export Crate	214 × 105.5 × 130 in (544 × 268 × 330 cm)
Machine Weight	25,600 lb (11,612 kg)
Shipping Domestic Pallet with Ec Option	214 × 102 × 138 in (544 × 260 × 351 cm)
Shipping Export Crate with Ec Option	214 × 106 × 139 in (544 × 270 × 352 cm)
Machine Weight with Ec Option	25,600 lb (11,612 kg)
Shipping Domestic Pallet with 50 plus 1 SMTC	214 × 102 × 134 in (544 × 260 × 339 cm)
Shipping Export Crate with 50 plus 1 SMTC	214 × 106 × 136 in (544 × 268 × 344 cm)
Machine Weight with 50 plus 1 SMTC	25,600 lb (11,612 kg)
Shipping Domestic Pallet with Ec Option 50 plus 1 SMTC	214 × 102 × 143 in (544 × 260 × 364 cm)
Shipping Export Crate with Ec Option 50 plus 1 SMTC	214 × 106 × 143 in (544 × 270 × 364 cm)
Machine Weight with Ec Option 50 plus 1 SMTC	25,600 lb (11,612 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

84 in (2,134 mm) of X travel on an 84 × 28 in (2,134 × 711 mm) table
4,000 lb (1,814 kg) table capacity, double the 2,000 lb (907 kg) of the VF-7SS
Optional gearbox figure of 250 ft-lbf (339 N·m) at 450 rpm in Haas's table
Choice of CT40, BT40 or HSK-A63 spindle taper
30 in (762 mm) of Z travel with the spindle nose 4 in (102 mm) to 34 in (864 mm) above the table

Limitations

Y travel is 32 in (813 mm); the VF-9/40 offers 40 in (1,016 mm) with equal X travel
Base spindle torque is 90 ft-lbf (122 N·m) at 2,000 rpm, well short of the 340 ft-lbf (460 N·m) at 700 rpm of the VF-7/50
600 ipm (15.2 m/min) rapids make long X repositioning moves slow
A full magazine restricts tools to 2.5 in (64 mm) in diameter and 12 lb (5.4 kg)

Best For

Long, narrow parts such as rails and extrusions up to 84 in (2,134 mm) Several vises or fixtures set in a row along the X axis General milling and drilling with 40-taper tooling at up to 8,100 rpm Long plates up to 4,000 lb (1,814 kg) with their workholding

Frequently Asked Questions

01 How long a part can the VF-7/40 machine in one setup?

X travel is 84 in (2,134 mm) and the table is 84 in long, so the spindle can cover the full length of the table. Y travel is 32 in (813 mm) over a 28 in (711 mm) table width, and Z travel is 30 in (762 mm).

02 VF-7/40 or VF-9/40: which one fits my parts?

Both have 84 in (2,134 mm) of X and 30 in (762 mm) of Z. The VF-7/40 has 32 in (813 mm) of Y on an 84 × 28 in (2,134 × 711 mm) table. The VF-9/40 has 40 in (1,016 mm) of Y on an 84 × 36 in (2,134 × 914 mm) table. Table load is 4,000 lb (1,814 kg) on each, and the spindles match at 8,100 rpm.

03 Can the VF-7/40 take heavier cuts with a gearbox?

Haas's table lists an optional gearbox at 250 ft-lbf (339 N·m) at 450 rpm, which is about 2.8 times the 90 ft-lbf (122 N·m) of the direct-drive spindle. It is an option, so it has to be specified on a new machine and confirmed on a used one.

04 What are the VF-7/40 shipping dimensions?

The domestic pallet is 214 × 102 × 128.5 in (544 × 260 × 326 cm) and the export crate is 214 × 105.5 × 130 in (544 × 268 × 330 cm). Shipping weight is 25,600 lb (11,612 kg). These describe the machine as shipped and are not the installed floor area.

05 How quickly does the VF-7/40 change tools?

Tool-to-tool time is 2.8 s and chip-to-chip time is 3.6 s. The side-mount changer holds 30+1 tools up to 16 in (406 mm) long. Diameter is limited to 2.5 in (64 mm) with neighbouring pockets filled and 5 in (127 mm) with them empty.
