Vision Wide Vertical Machining Centers (VMC)

Vision Wide VF-3026

Q: How much does the Vision Wide VF-3026 cost?

The price estimate for the Vision Wide VF-3026 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-vf-3026#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

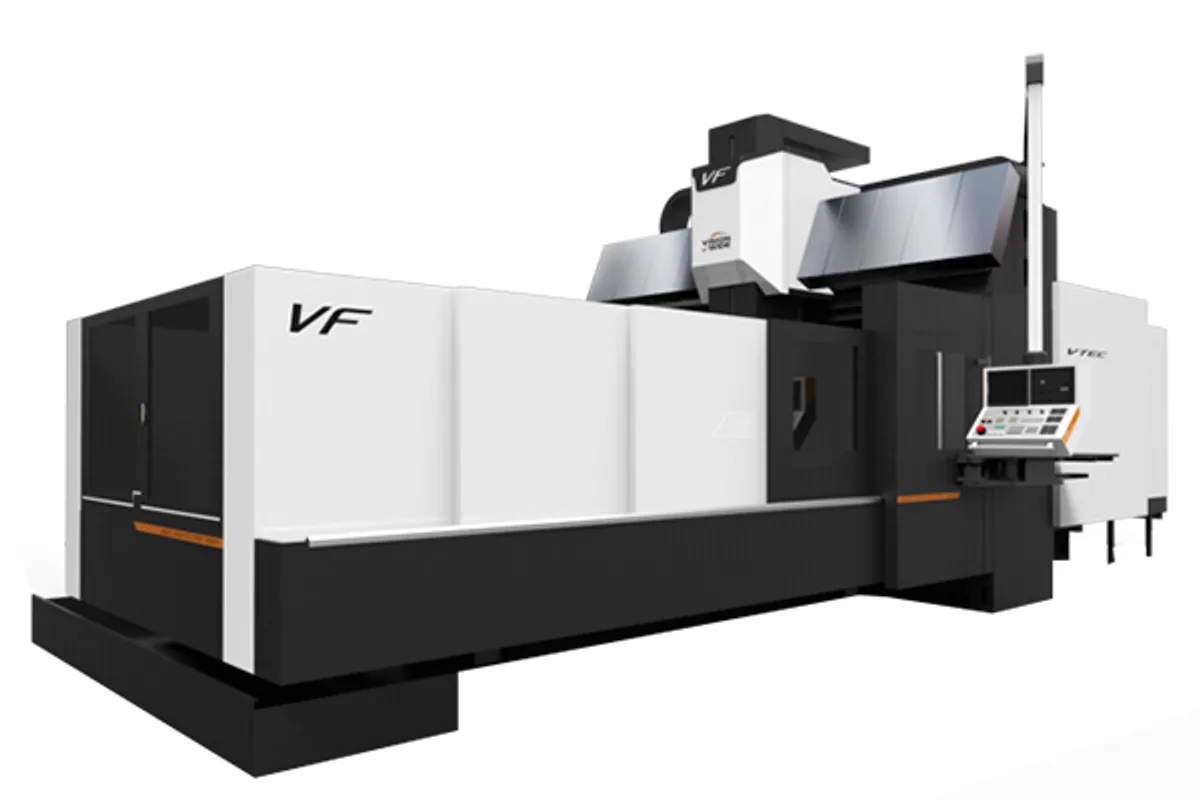

Image: visionwide-tech.com, Vision Wide

Key Specifications

Tool Capacity

40/60 pcs(Opt.)

Table Size

3,200×2,050 mm (126.0×80.7 in)

x axis travel

3,200 mm (126.0 in)

y axis travel

2,600 mm (102.4 in)

z axis travel

920/1,020 mm (36.2/40.2 in)(Opt.)

max table load

11,000 kg (24,250 lb)

How much does the Vision Wide VF-3026 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide VF-3026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide VF-3026 keeps the table of the VF-3000 and lengthens the cross travel. Y is 2,600 mm (102.4 in), where the VF-3000 has 2,300 mm (90.6 in); the table is still 3,200×2,050 mm (126.0×80.7 in) and still rated for 11,000 kg (24,250 lb).

So the added travel lies outside the table, and its use is access. The VF option list mentions a spindle ring cutting coolant device for machines with no head attachment, which tells us head attachments are part of how the series is used. A right-angle head hanging beside the spindle needs room to pass the edge of the part before it can cut a side face, and the wider beam provides it.

A buyer who only mills from above gains nothing from this version and can stay with the VF-3000. One who needs side faces machined on a part as wide as the table should choose this one.

X travel is 3,200 mm (126.0 in) and Z is 920 mm, or 1,020 mm as an option. Rapid traverse is 12 m/min on all three axes. The standard spindle is the 4,000 rpm two-step gear type with 18.5/22 kW (24.8/29.5 hp), and the control is a Fanuc 0iMF PLUS.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	2,600 mm (102.4 in)
Z Axis Travel	920/1,020 mm (36.2/40.2 in)(Opt.)
Table Size	3,200×2,050 mm (126.0×80.7 in)
Max Table Load	11,000 kg (24,250 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed 2 Step Gear	4,000/6,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xyz	X/Y/Z:12 m/min
Tool Capacity	40/60 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,600 mm (102.4 in) of Y travel over a 2,050 mm (80.7 in) wide table
Room beside the part for head attachment work
11,000 kg (24,250 lb) table load on box ways
12 m/min rapids on X, Y and Z

Limitations

Table and load are no larger than on the VF-3000
The page does not list the head attachments themselves
Cutting feed of 1-7,000 mm/min

Best For

Side-face machining of parts as wide as the table Heavy five-sided work on die blocks Parts up to 11,000 kg (24,250 lb)

Frequently Asked Questions

01 How does the Vision Wide VF-3026 differ from the VF-3000?

Only in Y travel: 2,600 mm (102.4 in) on the VF-3026 and 2,300 mm (90.6 in) on the VF-3000. X travel, table size, the 11,000 kg (24,250 lb) load, spindle and rapids are the same.

02 Can the VF-3026 use head attachments?

The option list includes a spindle ring cutting coolant device marked for machines with no head attachment, which implies attachments are offered. The VF page does not list them, so ask Vision Wide which heads fit.

03 What are the VF-3026 travels and table?

X 3,200 mm (126.0 in), Y 2,600 mm (102.4 in), Z 920 mm or optionally 1,020 mm. The table is 3,200×2,050 mm (126.0×80.7 in).

04 What control does the VF-3026 have?

A Fanuc 0iMF PLUS Controller is standard. Remote monitoring software in its professional version is optional and is noted as not available for a Siemens controller.
