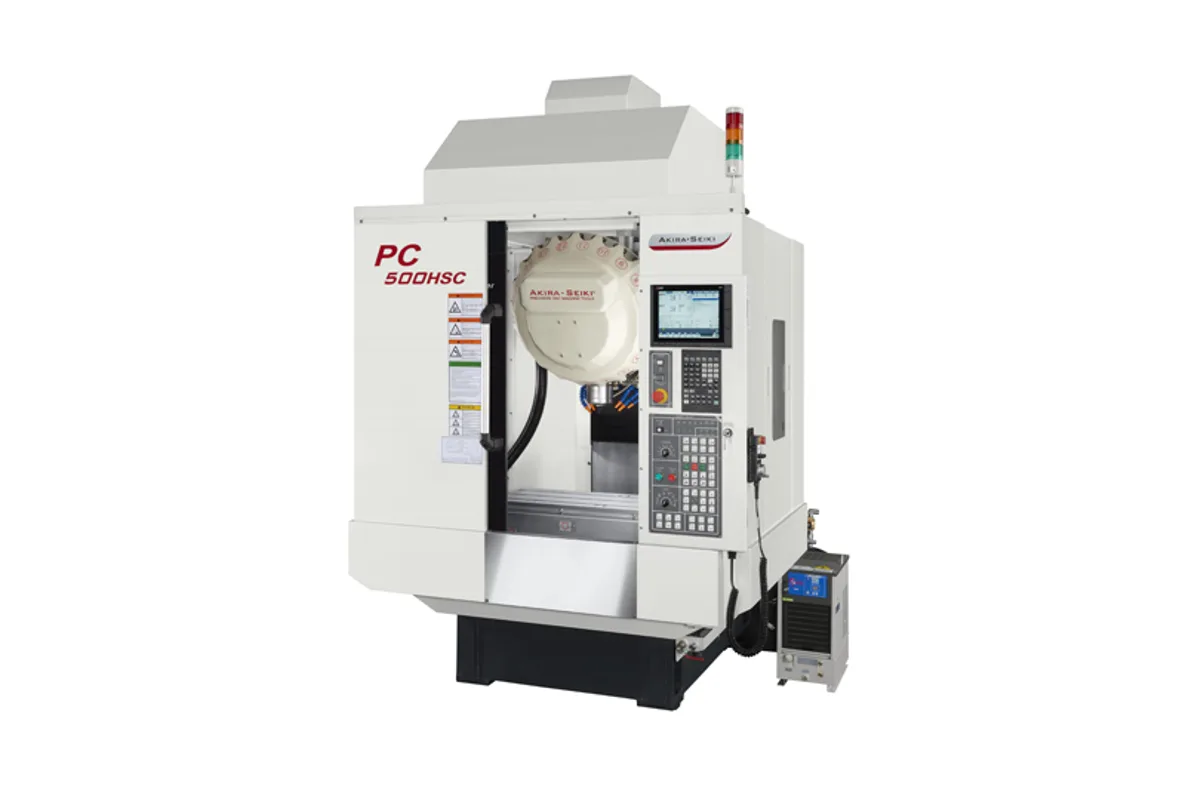

Akira Seiki PC500HSC
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki PC500HSC cost?
Price estimate
We do not have a price for the Akira Seiki PC500HSC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki PC500HSC is the high-torque version of the PC500 tapping center. Akira Seiki's claim for the HSC models is a rigid spindle that can cut hard materials and take over part of the work of larger-taper machines, and the maker calls them well suited to die-casting materials.
In the table that shows up as a 15,000 rpm BT30 spindle with 10 HP (7.5 kW) peak, in place of the 9 HP (6.7 kW), 12,000 rpm spindle of the PC500. Axis acceleration is stated, at 1.2 / 1.2 / 1.2 G. Rapid traverse is lower than on the standard machine, 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm), and the tool change is 1.6 s tool to tool.
The envelope is unchanged: 500 mm (19.7 in) in X, 400 mm (15.7 in) in Y and 330 mm (13.0 in) in Z, on a 650 x 400 mm (25.6 x 15.7 in) table that takes 250 kg (551 lb). The servo magazine holds 21T. Tools are limited to 50 mm (2.0 in) in diameter, 200 mm (7.9 in) in length and 3 kg (7 lb).
The machine weighs 2,400 kg (5,291 lb) and needs 15 kVA and air at 5 kgf/cm². Coolant capacity is 200 L (52.8 gal). The spindle is air cooled on this model; the two larger HSC machines are listed with oil cooling.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi845 |
| Spindle Motor Power | 10 HP (7.5 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT30 |
| Spindle Cooling | Air Cooling |
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 330 mm (13.0 in) |
| Distance Spindle Nose to Table | 180 - 480 mm (7.1 - 18.9 in) |
| Table Size | 650 x 400 mm (25.6 x 15.7 in) |
| Max Table Load | 250 kg (551 lb) |
| Rapid Traverse Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) |
| Axis Acceleration | 1.2 / 1.2 / 1.2 G |
| Positioning Accuracy | 0.01 mm |
| Repeatability | ±0.003 mm |
| Tool Capacity | Servo 21T (STD) |
| Max Tool Diameter (full magazine) | 50 mm (2.0 in) |
| Max Tool Length | 200 mm (7.9 in) |
| Max Tool Weight | 3 kg (7 lb) |
| Tool Change Time | T-T: 1.6 s |
| Coolant Tank Capacity | 200 L (52.8 gal) |
| Power Requirement | 15 kVA |
| Air Pressure Requirement | 5 kgf/cm² |
| Machine Weight | 2,400 kg (5,291 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 rpm BT30 spindle with 10 HP (7.5 kW) peak
- Axis acceleration of 1.2 / 1.2 / 1.2 G
- 1.6 s tool-to-tool change, 21T servo magazine
- 2,400 kg (5,291 lb) machine on a 15 kVA supply
Limitations
- Rapids of 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm), slower than the 60 m/min of the PC500
- Tool diameter limited to 50 mm (2.0 in)
- Air-cooled spindle, where the PC1000HSC has oil cooling
- The maker's floor-space row carries the wrong unit and is not shown
Best For
Frequently Asked Questions
01
The spindle and the axis speeds. The PC500 has 9 HP (6.7 kW) at 12,000 rpm and 60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm) rapids. The PC500HSC has 10 HP (7.5 kW) at 15,000 rpm and 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) rapids.
02
500 mm (19.7 in) in X, 400 mm (15.7 in) in Y and 330 mm (13.0 in) in Z. The table is 650 x 400 mm (25.6 x 15.7 in) with a maximum loading of 250 kg (551 lb).
03
The maker lists positioning accuracy of 0.01 mm and repeated positioning accuracy of ±0.003 mm, printed together in one row of the table.
04
Servo 21T as standard. Maximum tool diameter is 50 mm (2.0 in), maximum length 200 mm (7.9 in) and maximum weight 3 kg (7 lb). Tool-to-tool time is 1.6 s.
