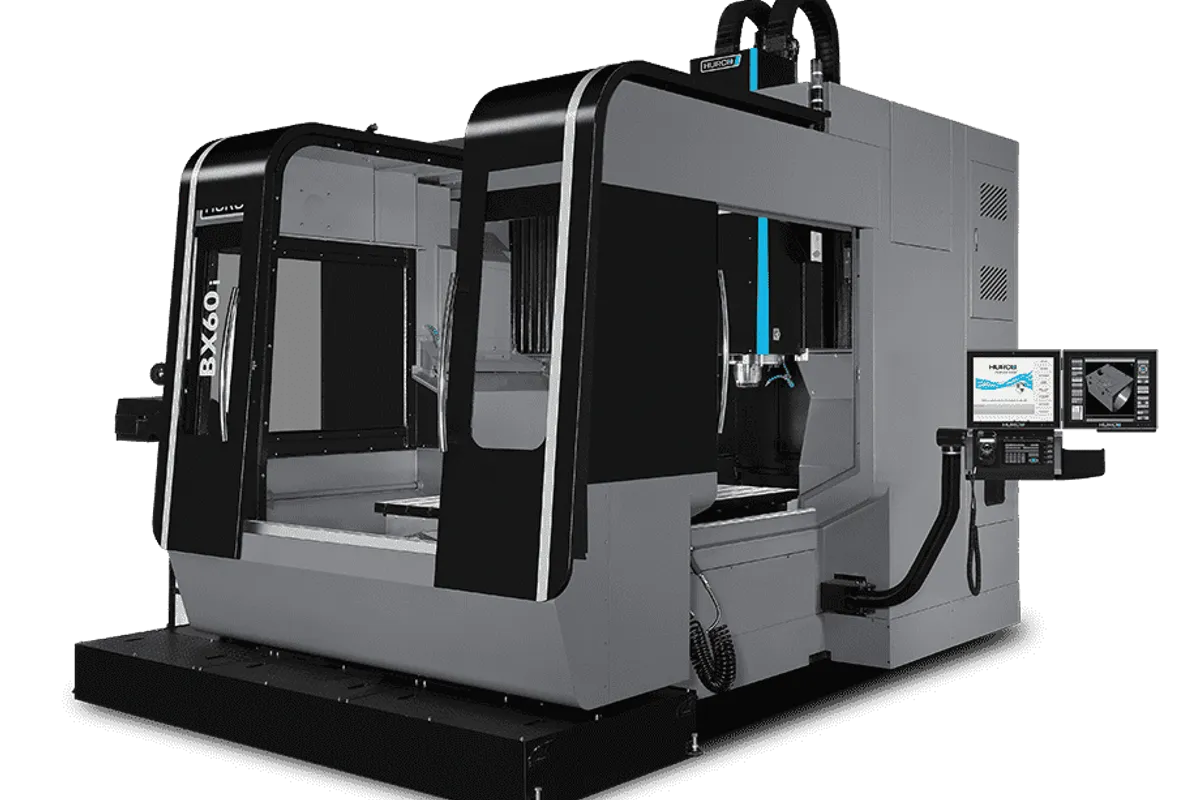

Hurco BX60i

$200,000 - $285,000 Updated 2025-03-15

Key Specifications

X Travel

1,524 mm (60 in)

Y Travel

660 mm (25.9 in)

Z Travel

508 mm (20 in)

Max Spindle

20,000 RPM

Spindle Taper

HSK-A63

Tool Capacity

Overview

The Hurco BX60i is a double-column bridge-style machining center that Hurco positions for high-speed machining of large workpieces, but its table size, spindle reach, and construction make it well-suited for boring operations on bigger parts that won't fit in a standard VMC. With a 1,524 x 660 mm (60 x 26 in) table, 20,000 RPM spindle, and HSK-A63 tooling, it delivers precision machining capability on a rigid bridge platform.

The double-column bridge design provides inherent rigidity that surpasses C-frame VMCs, especially on deep cuts and long-reach operations. The spindle sits between two columns, eliminating the overhang that limits single-column machines on wider parts. X-axis travel is 1,524 mm (60 in), Y-axis is 660 mm (25.9 in), and Z-axis is 508 mm (20 in), providing a generous work envelope for large plate work, mold bases, and structural components.

The 20,000 RPM direct-drive spindle with HSK-A63 taper delivers 26 kW (35 hp) for both high-speed finishing and aggressive roughing. The direct-drive design eliminates belt-induced vibration for better surface finishes at high speeds. The 30-tool automatic tool changer keeps a reasonable selection of tools available without excessive magazine complexity.

Rapid traverse rates reach 35 m/min (1,378 ipm) on all axes, with Hurco's UltiMotion motion control system optimizing acceleration and deceleration for smoother tool paths and faster cycle times. Linear scales on all axes provide direct position feedback for consistent accuracy across the full travel range.

The WinMax conversational control manages the full programming workflow, which is particularly valuable on larger parts where programming time can be significant. For mold shops, die shops, and structural component manufacturers, the BX60i provides a rigid platform with enough travel and spindle performance for precision boring and high-speed finishing. It competes with the Johnford DMC-2100, Okuma MCR-A5C, and similar double-column machines in the sub-$300,000 range.

Full Specifications

Parameter	Value
Table Size	74.8 x 51.2 in (1,900 x 1,300 mm)
X-Axis Travel	1,524 mm (60 in)
Y-Axis Travel	660 mm (25.9 in)
Z-Axis Travel	508 mm (20 in)
Max Spindle Speed	20,000 RPM
Spindle Motor Power	38.9 hp @ 2,870 rpm (29 kW@ 2,870 rpm)
Spindle Taper	HSK-A63
Tool Capacity	30
Rapid Traverse Rate	35 m/min (1,378 ipm)
Table Load Capacity	2,000 kg (4,409 lb)
Machine Type	Double-column bridge
Positioning Accuracy	0.005 mm (0.0002 in)
CNC Control	Hurco WinMax
Machine Weight	9,500 kg (20,944 lb)
Travels Capacityx Y Z Axis Travel	63 x 51.2 x 27.6 in (1,600 x 1,300 x 700 mm)
Spindle Nose To Table	7.1 / 34.6 in (180 / 880 mm)
Max Weight On Table	13,200 lbs (6,000 kg)
T Slot Size	8 x 0.87 in (8 x 22 mm)
Spindlemax Spindle Speed	20,000 rpm
Spindle Torque	73.2 ft. lbs @ 2,790 rpm (99.3 Nm @ 2,790 rpm)
Tool Changertool Type	HSK 63A
Max Tool Diameter	3.15 in (80 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb. (7 kg)
Feedratesrapid Traverse Xyz Axis	1,417 in/min (36 m/min)
Max Programmable Feedrate	1,417 in/min (36 m/min)
Sizemax Operating Floor Space	212.5 x 206.9 in (5,398 x 5,256 mm)
Machine Height	149.6 in (3,800 mm)
Machine Weight	44,000 lbs (20,000 kg)

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

Double-column bridge design provides superior rigidity over C-frame VMCs for heavy cuts and precision boring
1,524 mm X-travel accommodates large workpieces that won't fit in standard vertical machining centers
20,000 RPM direct-drive spindle with HSK-A63 delivers both high-speed finishing and moderate roughing capability
WinMax conversational control enables fast programming of large parts without CAM software for simpler geometries
UltiMotion motion control optimizes tool paths for faster cycle times and smoother surface finishes
Linear scales on all axes provide direct position feedback for consistent accuracy across full travel

Limitations

508 mm Z-travel is limited for deep boring operations compared to horizontal boring mills with 800+ mm W-axis
HSK-A63 taper limits heavy boring bar options compared to BT50 or ISO50 spindles on dedicated boring machines
30-tool magazine may not be sufficient for complex parts requiring many tool changes
Not a dedicated boring mill — shops needing true horizontal boring capability should look at the HBMx series
Large footprint requires significant floor space compared to standard VMCs

Best For

Mold and die shops machining large mold bases and die plates requiring bridge-style rigidity Structural component manufacturers processing large aluminum and steel plates with precision features Shops needing precision boring and finishing on workpieces too large for standard VMCs Aerospace subcontractors machining large structural panels and wing rib components Shops valuing WinMax programming for large-format machining with conversational control Pattern and fixture shops producing large jigs, fixtures, and tooling plates

Frequently Asked Questions

01 What does a Hurco BX60i cost?

A new Hurco BX60i typically sells between $200,000 and $285,000 depending on options including through-spindle coolant, probing, and chip management. Used examples trade between $100,000 and $175,000.

02 Is the BX60i a boring mill or a machining center?

The BX60i is technically a double-column bridge machining center, not a horizontal boring mill. It excels at precision machining of large, flat workpieces. For dedicated horizontal boring operations with W-axis quill feed and floor-plate mounting, Hurco's HBMx series is the appropriate choice.

03 How does the BX60i compare to a standard Hurco VMX?

The BX60i's double-column bridge design provides significantly more rigidity than the C-frame VMX machines, with a much larger table (60 x 26 in). The VMX machines are designed for smaller parts. The BX60i trades the VMX's smaller footprint and lower cost for larger part capacity and bridge rigidity.

04 What is UltiMotion?

UltiMotion is Hurco's proprietary motion control technology that looks ahead in the tool path and optimizes acceleration, deceleration, and cornering speed in real time. It produces faster cycle times and smoother surface finishes compared to standard look-ahead systems, especially on complex contoured parts.

05 Can the BX60i handle heavy roughing?

The 35 hp spindle and double-column construction support moderate roughing operations. The HSK-A63 taper is the limiting factor for very heavy roughing compared to BT50 or ISO50 spindles. For heavy material removal on large workpieces, consider the BX60i for finishing and a horizontal boring mill for roughing.
