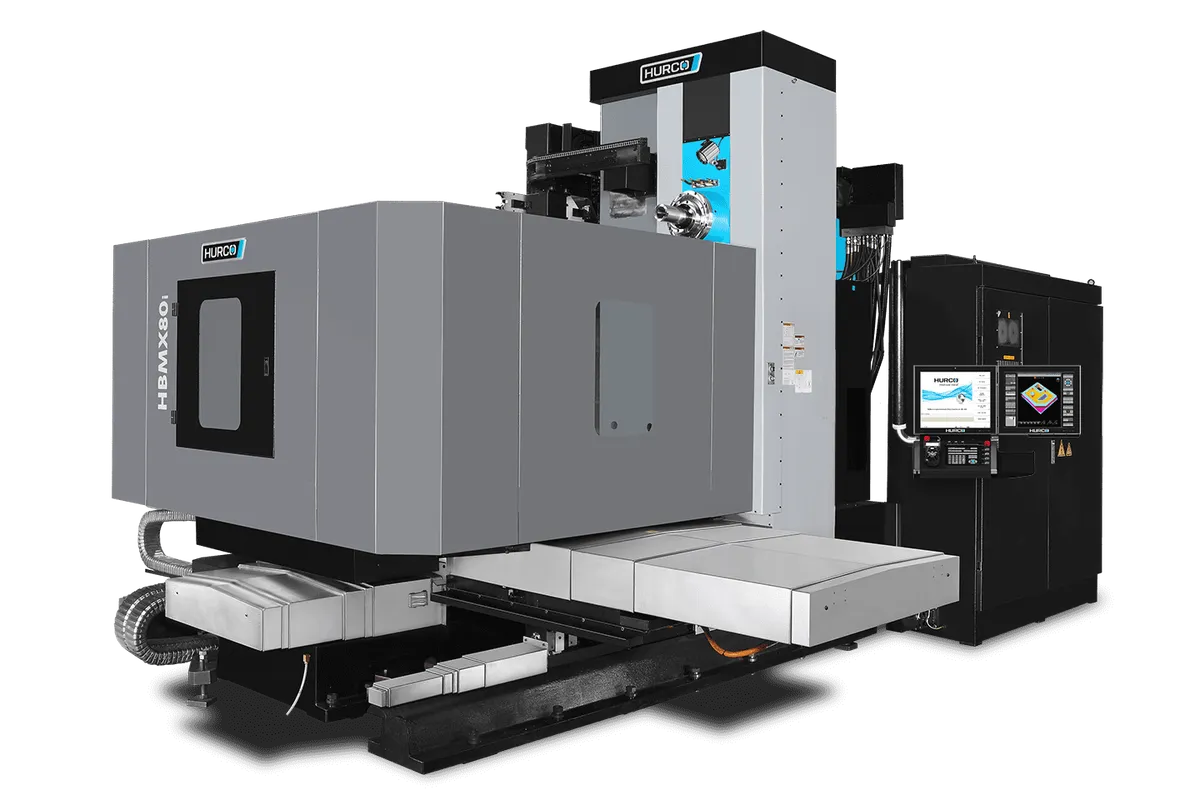

Hurco HBMx80i

$475,000 - $625,000 Updated 2025-03-15

Key Specifications

X Travel

1,800 mm (70.9 in)

Y Travel

1,400 mm (55.1 in)

Z Travel

1,100 mm (43.3 in)

Max Spindle

2,500 RPM

Spindle Taper

BT50 / ISO50

Tool Capacity

60 (90 optional)

Overview

The Hurco HBMx80i is the mid-range horizontal boring mill in Hurco's HBMx lineup, stepping up from the HBMx55i with a larger table, more axis travel, and additional spindle power for shops machining bigger castings and weldments. With a 1,800 x 1,500 mm (70.9 x 59.1 in) table, 63 kW (84 hp) spindle, and expanded W-axis quill travel, it handles the larger workpieces that smaller boring mills can't accommodate.

The horizontal spindle delivers 63 kW (84 hp) at up to 2,500 RPM through a BT50 taper, providing substantial torque for large boring bars, heavy face mills, and aggressive roughing on castings. The W-axis quill extends 600 mm (23.6 in) from the spindle face, reaching deeper into workpieces than the HBMx55i for boring operations on larger castings and housings.

X-axis travel is 1,800 mm (70.9 in), Y-axis is 1,400 mm (55.1 in), and Z-axis is 1,100 mm (43.3 in). The rotary B-axis table indexes for multi-face machining, and the table supports up to 6,000 kg (13,228 lb) of workpiece weight. This load capacity accommodates the heavy castings and weldments common in energy, mining, and heavy equipment manufacturing.

The 40-tool automatic tool changer handles complex jobs with multiple boring, milling, drilling, and tapping operations. Rapid traverse runs at 18 m/min on linear axes. Machine weight is approximately 24,000 kg (52,911 lb), providing the mass needed for vibration-free heavy cutting.

The WinMax conversational control provides the same programming advantage found across the Hurco lineup, which is even more impactful on boring mill work where parts are large, complex, and often one-off. Programming a multi-face boring mill job in G-code can take a full shift; WinMax can cut that to hours. The HBMx80i competes with the Kuraki KBT-13A, TOS WHN 110, and Doosan DBC 160.

Full Specifications

Parameter	Value
Table Size	56.7 x 63 in (1,440 x 1,600 mm)
X-Axis Travel	1,800 mm (70.9 in)
Y-Axis Travel	1,400 mm (55.1 in)
Z-Axis Travel	1,100 mm (43.3 in)
Travel W	600 mm (23.6 in) quill
Max Spindle Speed	2,500 RPM
Spindle Motor Power	63 kW (84 hp)
Spindle Taper	BT50 / ISO50
Tool Capacity	60 (90 optional)
Table Rotation	360-degree B-axis indexing
Table Load Capacity	6,000 kg (13,228 lb)
Rapid Traverse Rate	18 m/min (709 ipm)
CNC Control	Hurco WinMax
Machine Weight	24,000 kg (52,911 lb)
Travels Capacityx Y Z W Axis Travel	78.7 x 70.1 x 66.9 x 19.7 in (2,000 x 1,780 x 1,700 x 500 mm)
B Axis Travel	Continuous
Max Weight On Table	13,889 lbs (6,299 kg)
Spindle Nose To Table Center	22.8 / 89.8 in (579 / 2,280 mm)
T Slot Size	9 x 0.9 in (228 x 22 mm)
Spindlemax Spindle Speed	8-2,500 (high), 8-454 (low) rpm
Peak Spindle Motor Power	40.2 hp (30 kW)
Max Spindle Motor Torque	303.9 (high), 1,106.3 (low) ft lbs @ 695.5 rpm (412 (high), 1,500 (low) Nm @ 695.5 rpm)
Tool Changertool Type	CAT 50 (CAT/BT 50)
Spindle Quill Diameter	4.3 in (110 mm)
Max Tool Diameter	4.7 in (120 mm)
Max Tool Length	15.7 in (400 mm)
Max Tool Weight	55.1 lbs (25 kg)
Feedratesrapid Traverse Xyzw Axis	393.7, 393.7, 393.7, 157.5 in/min (10, 10, 10, 4 m/min)
Max Programmable Feedrate Xyzw Axis	393.7 in/min (10 m/min)
B Axis Max Rpm	1 rpm
Sizemax Operating Floor Space	212.97 x 254.22 in (6,711 x 5.781 mm)
Machine Height	148.23 in (3,765 mm)
Machine Weight	52,808 lb (23,500 kg)
Electricalpower Rating Full Load Kva	86 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

Larger table and 6,000 kg load capacity handle heavier castings and weldments than the HBMx55i
84 hp spindle with 600 mm W-axis quill provides power and reach for deep boring on larger workpieces
B-axis rotary table enables multi-face machining of large parts without refixturing
WinMax conversational control saves hours of programming time on complex large-part boring mill jobs
1,800 mm X-travel and 1,400 mm Y-travel accommodate workpieces too large for the HBMx55i
24,000 kg machine weight provides excellent vibration damping for heavy interrupted cuts on castings

Limitations

Major floor space requirement and 24,000 kg weight need reinforced foundation and heavy crane access
2,500 RPM spindle speed is lower than the HBMx55i — optimized for torque over speed on larger boring bars
Higher price point requires consistent large-part workloads to justify investment over smaller boring mills
18 m/min rapid traverse is slower than VMCs, adding non-cutting time on complex programs
BT50 tooling and large boring bars represent significant tooling investment beyond the machine cost

Best For

Heavy equipment manufacturers machining large gear housings, frames, and structural castings Energy sector shops processing turbine casings, generator housings, and large valve bodies Mining equipment manufacturers finishing large castings and weldments with precision bored features Shops machining workpieces in the 3,000-6,000 kg range that exceed smaller boring mill capacity Large job shops replacing aging boring mills and wanting WinMax programming for faster setups Marine and shipbuilding shops machining engine mounts, propeller housings, and hull structural components

Frequently Asked Questions

01 What does a Hurco HBMx80i cost?

A new Hurco HBMx80i typically sells between $475,000 and $625,000 depending on options. Key options affecting price include probing systems, through-spindle coolant, enhanced chip management, and right-angle milling heads.

02 What is the difference between the HBMx80i and HBMx55i?

The HBMx80i steps up with a larger table (1,800 x 1,500 mm vs 1,400 x 1,200 mm), more axis travel across all axes, 84 hp spindle (vs 74 hp), 600 mm quill travel (vs 500 mm), and 6,000 kg table load (vs 4,000 kg). Choose the HBMx80i when your workpieces exceed the HBMx55i's table and weight capacity.

03 Can the HBMx80i handle right-angle milling?

With an optional right-angle milling head, the HBMx80i can machine features at 90 degrees to the main spindle axis. This extends the machine's reach into workpiece surfaces that the horizontal spindle alone cannot access. Check with your Hurco distributor for available right-angle head options.

04 What foundation requirements does the HBMx80i have?

At 24,000 kg, the HBMx80i requires a reinforced concrete foundation designed for the machine weight plus workpiece loads. Hurco provides foundation drawings and specifications. Installation typically requires a 10-ton or larger overhead crane for positioning. Consult with Hurco for specific site preparation requirements.

05 How does the HBMx80i compare to a floor-type boring mill?

The HBMx80i is a table-type boring mill where the workpiece sits on a moving table. Floor-type boring mills have a stationary floor plate and a traveling column. Table-type machines like the HBMx80i are better for parts within the table load capacity. Floor-type mills handle even larger workpieces that exceed table-type load limits.
