Vision Wide SV-1480

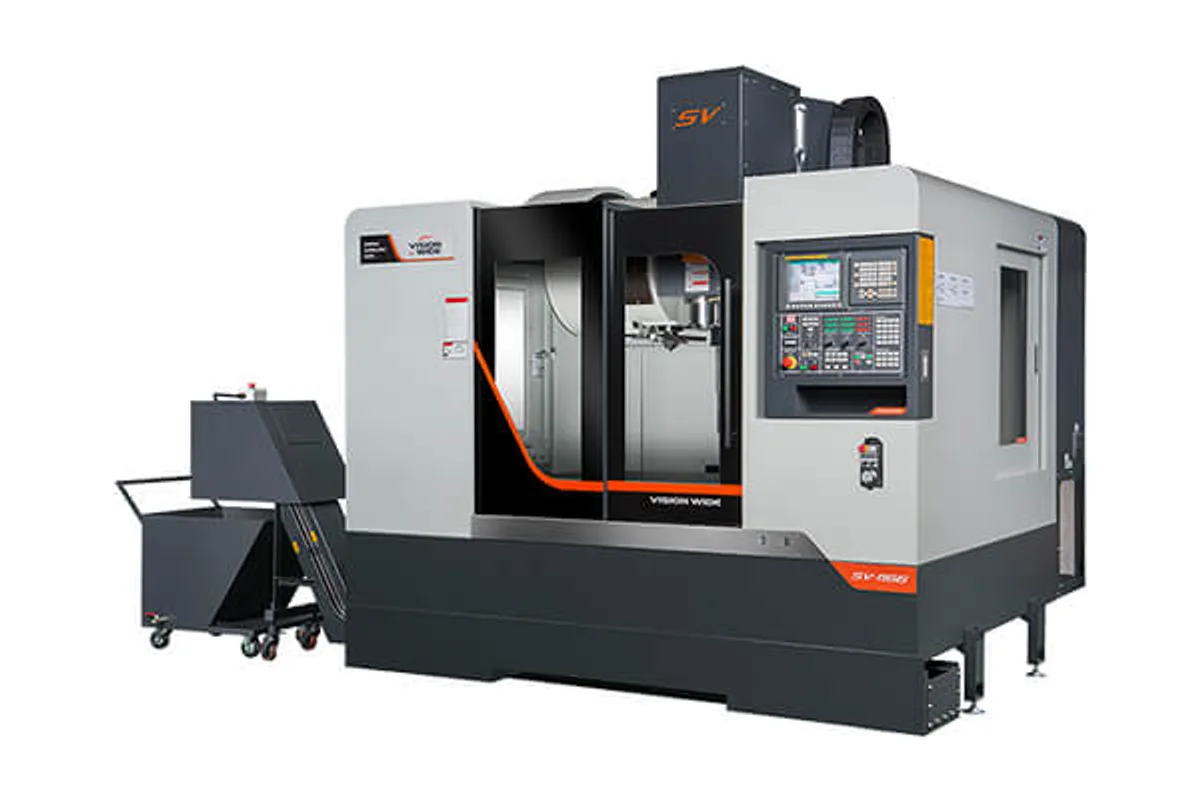

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SV-1480 cost?
Price estimate
We do not have a price for the Vision Wide SV-1480 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SV-1480 is where the SV series gets a bigger spindle motor as its base rating. The power row reads 11 / 15 kW (14.8 / 20.1 hp), with 15 / 18 kW (20.1 / 24.1 hp) in brackets after it. On the SV-1470 below, 11 / 15 kW (14.8 / 20.1 hp) is itself the bracketed figure.
The frame is larger to match: 1,400 mm (55.1 in) of X, 800 mm (31.5 in) of Y and 700 mm (27.6 in) of Z, over a 1,600×750 mm (63.0×29.5 in) table that carries 1,500 kg (3,307 lb). Rapids are 30 / 30 / 24 m/min.
Two more rows change at this size. Tool capacity is listed as 24 / 32 / 40 pcs, adding a third magazine size that the smaller SV models do not show. And the spindle speed row gains an entry, "G:6,000 rpm", beside the 10,000 rpm standard and the 12,000 / 15,000 rpm versions. The page does not spell out what G stands for, so treat it as a question for the sales contact, not as a confirmed gear spindle.
Note the table length. At 1,600 mm (63.0 in) it is longer than the X travel, and it is the same table the SV-1680 uses with 1,600 mm (63.0 in) of travel. A shop that will machine the full length of that table should look at the SV-1680.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,600×750 mm (63.0×29.5 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Max Spindle Speed | 10,000 rpm (STD) / 12,000 / 15,000 rpm; G:6,000 rpm |
| Spindle Power Cont 30 Min | 11 / 15 kW (14.8 / 20.1 hp) (15 / 18 kW (20.1 / 24.1 hp)) |
| Cutting Feed Rate | 1-10 m/min |
| Rapid Traverse Xyz | 30 / 30 / 24 m/min |
| Tool Capacity | 24 / 32 / 40 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Base spindle power of 11 / 15 kW (14.8 / 20.1 hp), with a 15 / 18 kW (20.1 / 24.1 hp) pair also printed
- 800 mm (31.5 in) of Y and 700 mm (27.6 in) of Z travel
- Tool capacity listed as 24 / 32 / 40 pcs
- 1,600×750 mm (63.0×29.5 in) table rated for 1,500 kg (3,307 lb)
- A 6,000 rpm entry is listed next to the 10,000 rpm standard speed
Limitations
- X travel of 1,400 mm (55.1 in) does not cover the 1,600 mm (63.0 in) table length
- The G:6,000 rpm entry and the bracketed power pair are not explained in the table
- Rapids are 30 / 30 / 24 m/min, below the 36 / 36 / 30 m/min of the SV-1270
Best For
Frequently Asked Questions
01
The table lists 11 / 15 kW (14.8 / 20.1 hp) as the continuous and short-time rating, and 15 / 18 kW (20.1 / 24.1 hp) in brackets. That is one step above the SV-1470, whose base rating is 7.5 / 11 kW (10.1 / 14.8 hp).
02
Vision Wide's table prints "G:6,000 rpm" in the spindle speed row after 10,000 rpm (STD) and 12,000 / 15,000 rpm, without a legend. The accessory lists for the SV series name only #40 direct driven spindles, so ask the maker what the G entry refers to.
03
The specification row lists 24 / 32 / 40 pcs. The series accessory lists name a 24 tools magazine with arm type ATC as standard and a 32 tools magazine as an option; the 40 tool size appears only in the table for this model and the SV-1680.
04
X travel is 1,400 mm (55.1 in), Y is 800 mm (31.5 in) and Z is 700 mm (27.6 in). The table measures 1,600×750 mm (63.0×29.5 in) and takes 1,500 kg (3,307 lb).
