Litz MV-1000

Q: How much does the Litz MV-1000 cost?

The price estimate for the Litz MV-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-mv-1000#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

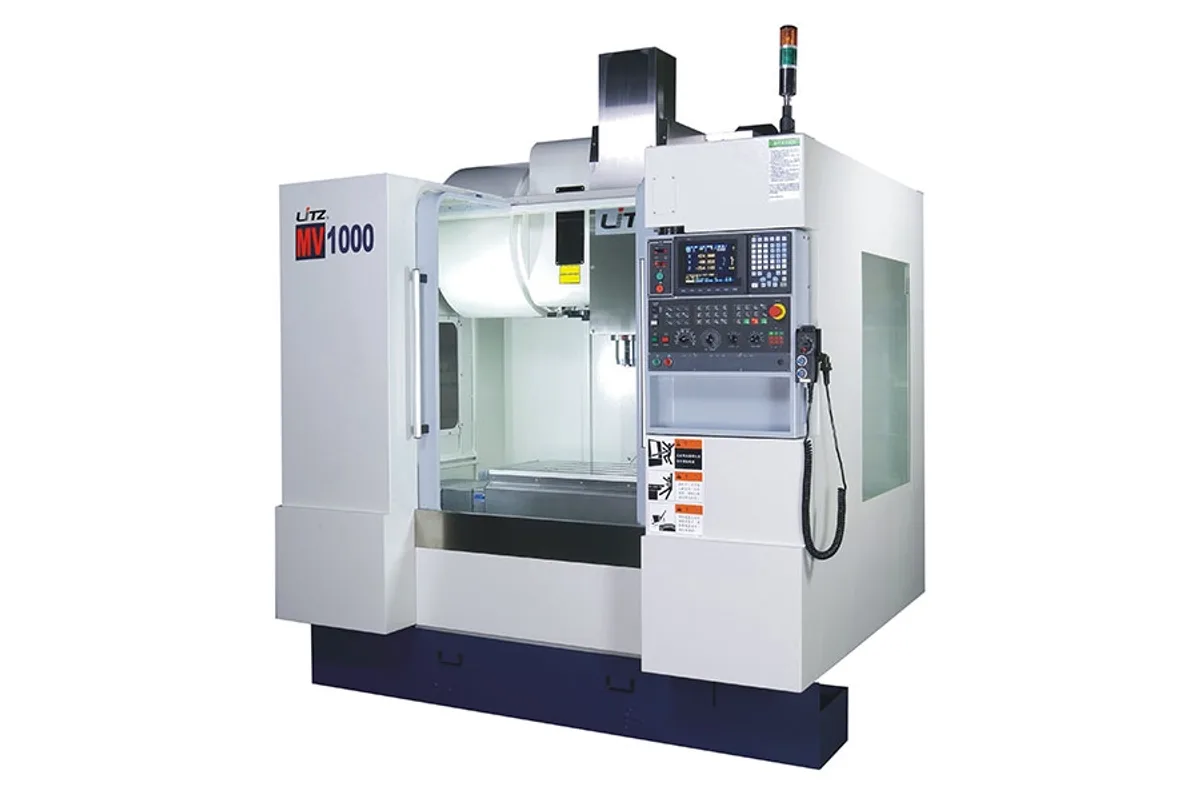

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

8,000 rpm

Tool Capacity

Table Size

1,000 x 500 mm (39.4 x 19.7 in)

x axis travel

1,000 mm (39.4 in)

y axis travel

500 mm (19.7 in)

z axis travel

540 mm (21.3 in)

How much does the Litz MV-1000 cost?

Price estimate

Uncertain

We do not have a price for the Litz MV-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz MV-1000 is a 40-taper vertical machining center with travels of 1,000 mm (39.4 in), 500 mm (19.7 in) and 540 mm (21.3 in) in X, Y and Z and a standard spindle speed of 8,000 rpm. It is aimed at general steel and cast-iron work more than at high-speed finishing.

The option list makes that plain. Litz offers a ZF gearbox with cooling system on this model, which is how a 40-taper spindle gets low-speed torque for large drills, taps and face mills. A 10,000 rpm spindle, a spindle oil cooler and coolant through the spindle are the other spindle options. As delivered, the spindle has an air seal system and BT-40 tooling.

The table matches the travel exactly in X: 1,000 x 500 mm (39.4 x 19.7 in). Load capacity is 500 kg (1,102 lb), modest for a metre-long table, so it suits long light parts or several small vises better than one dense block. Between spindle nose and table there is 100 to 640 mm (3.9 to 25.2 in).

The axes are quick for this class at 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm). Tools up to 300 mm (11.8 in) long and 8 kg (18 lb) go into the 24-tool arm changer. The machine weighs 5,800 kg (12,787 lb), needs 20 kVA and holds 240 L of coolant. Control is the Mitsubishi M80, with FANUC and Siemens 828D as options.

Full Specifications

Parameter	Value
X Axis Travel	1,000 mm (39.4 in)
Y Axis Travel	500 mm (19.7 in)
Z Axis Travel	540 mm (21.3 in)
Distance Spindle Nose to Table	100 to 640 mm (3.9 to 25.2 in)
Max Spindle Speed	8,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Method	Arm
Tool Shank	BT-40
Axis Motors Xyz	2.0 / 2.0 / 3.5 kW
Table Size	1,000 x 500 mm (39.4 x 19.7 in)
Max Table Load	500 kg (1,102 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	5,800 kg (12,787 lb)
Power Requirement	20 kVA
Coolant Tank Capacity	240 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,000 x 500 x 540 mm travels on a 5,800 kg (12,787 lb) machine
ZF gearbox with cooling system available as an option for low-speed torque
36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids and feed to 20,000 mm/min
Tools up to 300 mm (11.8 in) long in a 24-tool arm changer

Limitations

Standard spindle speed is 8,000 rpm; 10,000 rpm is an option
Table load of 500 kg (1,102 lb) is low for a 1,000 mm table
Spindle oil cooler and coolant through the spindle are options
Y travel is 500 mm (19.7 in), less than the 560 mm of the MV-1200A

Best For

Long, light parts up to 1,000 mm (39.4 in) Drilling, tapping and milling in steel at up to 8,000 rpm Multi-vise setups within a 500 kg (1,102 lb) table load

Frequently Asked Questions

01 What is the spindle speed of the Litz MV-1000?

The specification table and the standard accessory list both give 8,000 rpm. A 10,000 rpm spindle is listed as an option, as are a spindle oil cooler, coolant through the spindle and a ZF gearbox with cooling system. Tooling is BT-40.

02 How large is the MV-1000 table?

The table measures 1,000 x 500 mm (39.4 x 19.7 in) and carries up to 500 kg (1,102 lb). It has five 18 mm T-slots. X travel equals the table length, so the spindle covers the whole table.

03 What control is fitted to the MV-1000?

The Mitsubishi M80 is the standard control. The accessory list shows FANUC and Siemens 828D as options. Linear scales on the three axes and a 4th axis rotating table are also offered as options.

04 What are the installation requirements of the MV-1000?

Litz lists a machine weight of 5,800 kg (12,787 lb), a 20 kVA power requirement, a compressed air source of 6 kg/cm² and a 240 L coolant tank. A chip auger and chip cart are standard and a chip conveyor is optional.
