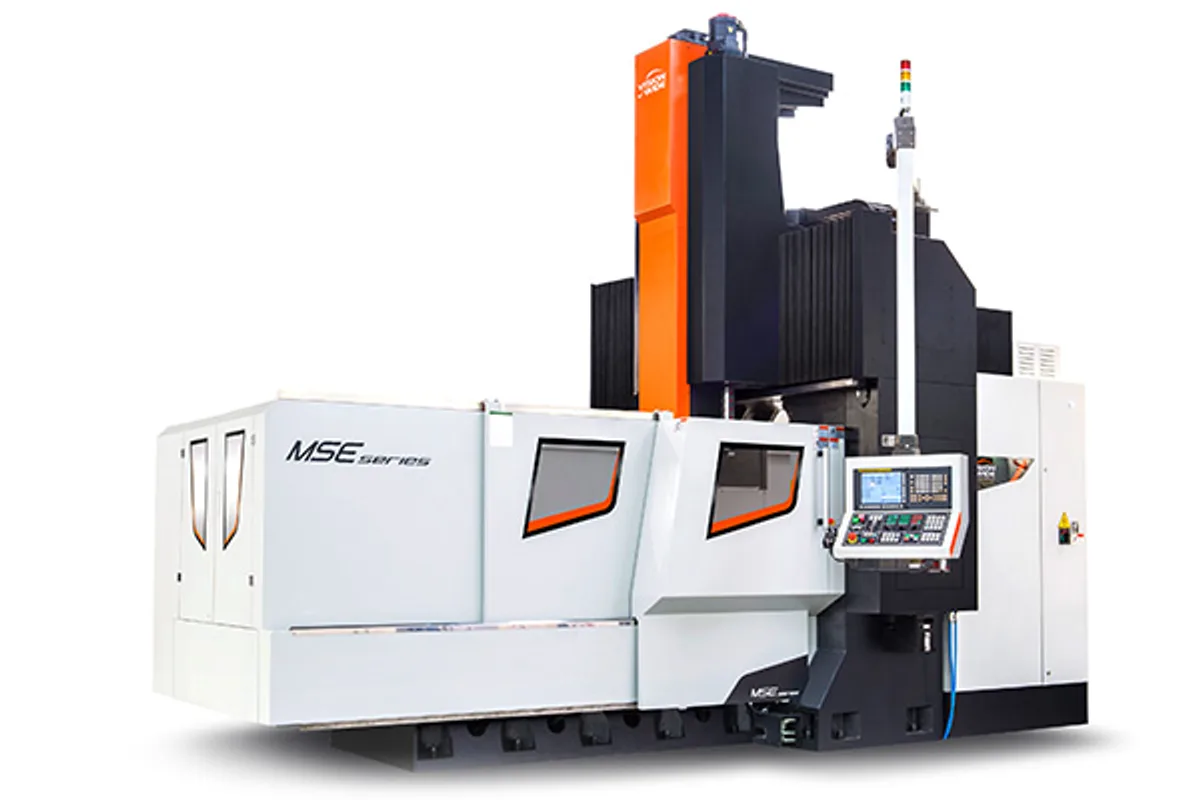

Vision Wide MSE-2618
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MSE-2618 cost?
Price estimate
We do not have a price for the Vision Wide MSE-2618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MSE-2618 runs its axes fast for a machine of its size. Cutting feed is 1-24,000 mm/min, rapid traverse is 24 m/min, and a 30 m/min rapid is offered as an option, over 2,600 mm (102.4 in) of X travel and 1,800 mm (70.9 in) of Y.

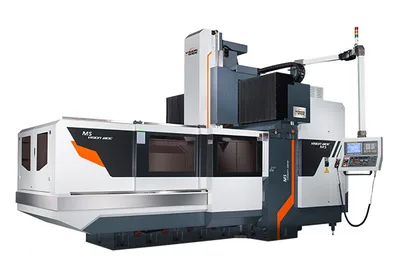

Compare the gear-driven MS milling machines. The MS-2620 has the same X travel, a geared 6,000 rpm spindle and a cutting feed limit of 10,000 mm/min. The MSE-2618 has a 15,000 rpm direct driven spindle and more than twice the feed. They are both sold as portal mills, for opposite ends of the job: one to take metal off, the other to finish.
The maker's claim for the series is a 50% improvement in productivity, credited to mechanism and structure; no baseline is given. What the specification does show is that the top cutting feed equals the standard rapid, so the machine can hold its highest feed through long contouring passes.
The table is 2,800x1,600 mm (110.2x63.0 in), rated for 12,000 kg (26,455 lb). Spindle power is 15/ 18.5 kW (20.1/ 24.8 hp). Z travel is 800 mm, or 1,000 mm as an option. The MSE lists no tool magazine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,800x1,600 mm (110.2x63.0 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cutting feed up to 24,000 mm/min, equal to the standard rapid
- Optional 30 m/min rapid traverse
- 2,800x1,600 mm (110.2x63.0 in) table for 12,000 kg (26,455 lb)
- 15,000 rpm direct driven spindle
Limitations
- 15/ 18.5 kW (20.1/ 24.8 hp) limits roughing in steel
- The stated 50% productivity gain has no baseline
- No tool magazine is listed
Best For
Frequently Asked Questions
01
Both have 2,600 mm (102.4 in) of X travel. The MSE-2618 has a 15,000 rpm spindle and cutting feed of 1-24,000 mm/min. The MS-2620 has a 6,000 rpm geared spindle, 18.5/22 kW (24.8/29.5 hp), and cutting feed of 1-10,000 mm/min.
02
Cutting feed is 1-24,000 mm/min and rapid traverse is 24/30 m/min (Opt.), meaning 24 m/min standard with 30 m/min as an option.
03
2,800x1,600 mm (110.2x63.0 in) and 12,000 kg (26,455 lb). Travels are 2,600 mm (102.4 in) in X and 1,800 mm (70.9 in) in Y.
04
The feature text says the MSE high-speed machining center had a 50% improvement in productivity, crediting mechanism and structural performance. It does not say what it is compared with.
More from Vision Wide
Other Vertical Machining Centers (VMC)
YCM TV116B

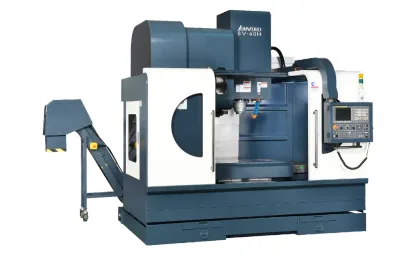

Johnford SV-33
