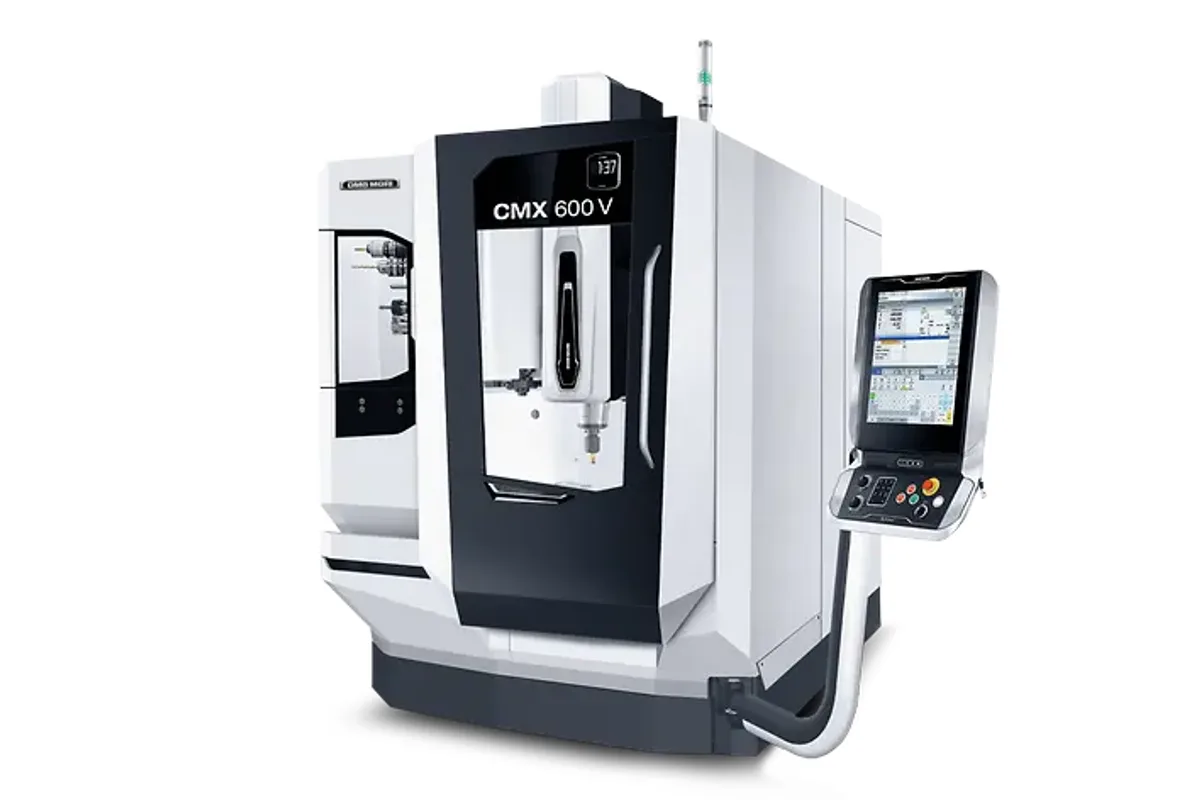

DMG Mori CMX 600 V

$100,000 - $150,000 Updated 2026-03-10

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

560 mm (22.0 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (15,000 RPM optional)

Spindle Taper

SK 40 / BIG PLUS (CAT 40 / BT 40)

Tool Capacity

30 tools (double gripper)

Overview

The DMG Mori CMX 600 V is the entry point into DMG Mori's vertical machining center lineup. Built in Pfronten, Germany, it shares the same C-frame architecture as the larger CMX 800 V and CMX 1100 V but packs it into a more compact footprint. It's the machine you buy when you want German engineering without German-flagship pricing.

You get 600 x 560 x 510 mm (23.6 x 22.0 x 20.1 in) of travel, which works out to roughly 6.2 cubic feet of work envelope. That's tighter than a Haas VF-2's 9.9 cu ft, but the CMX 600 V makes up for it with build quality. The FEM-optimized C-frame casting and direct measuring scales on all axes deliver 6 micron positioning accuracy per ISO 230-2. Current production models now include IoTconnector and direct measuring system as standard equipment, plus BIG PLUS spindle interface for improved tool rigidity.

The standard spindle runs at 12,000 RPM with 13 kW (17.4 hp) and 82 Nm (60.5 ft-lb) of torque on an SK 40 taper. It handles steel and cast iron fine but falls short for aggressive aluminum hogging. The optional inlineMASTER upgrade bumps output to 15,000 RPM, 20 kW (26.8 hp), and 121 Nm (89.3 ft-lb) at 40% ED. That's 53% more power and 45% more torque than the base spindle, with a 36-month unlimited-hours warranty. For production work, the upgrade is close to mandatory.

DMG Mori's table design stands out. The table moves only in X, with the spindle handling Y and Z. Combined with 45-degree way covers, chip evacuation on the CMX V series is among the best of any vertical mill. Machinists on Practical Machinist consistently call out chip handling as the machine's biggest advantage. One forum user described it as having the best chip handling design of any vertical they'd seen.

The 30-tool double-gripper ATC delivers 2.4-second tool-to-tool changes, though chip-to-chip time runs 6.7 seconds. Table load tops out at 600 kg (1,323 lb) with max workpiece height of 630 mm (24.8 in). Your choice of Siemens 840D sl, Heidenhain TNC, or FANUC control comes on a 19-inch SLIMline multi-touch panel.

Direct competitors include the Haas VF-2 (cheaper, larger envelope), Doosan DNM 4500 (similar price, proven reliability), Okuma GENOS M560-V (heavier casting, more spindle torque), and Hurco VMX30i (conversational programming strength). The CMX 600 V wins on positioning accuracy and chip management, but the Okuma M560-V carries nearly twice the spindle torque and weighs about 2,000 lb more. Forum comparisons note the CMX is an excellent design for its weight class, though it can show measurable Y-axis droop over extended use compared to dual-column designs. New machines run $100K-$150K; used units from 2017-2023 trade for $65K-$98K. Over 290 standard options cover 4th axis, probing, high-pressure coolant, and automation including Robo2Go. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	560 mm (22.0 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	12,000 RPM (15,000 RPM optional)
Spindle Taper	SK 40 / BIG PLUS (CAT 40 / BT 40)
Spindle Motor Power	13 kW (17.4 hp) (20 kW / 26.8 hp optional)
Spindle Torque	82 Nm (60.5 ft-lb) @ 40% ED / 54 Nm @ 100% ED (121 Nm / 89.3 ft-lb @ 40% ED optional)
Tool Capacity	30 tools (double gripper)
Tool Change Time	2.4 sec tool-to-tool / 6.7 sec chip-to-chip
Table Size	900 x 560 mm (35.4 x 22.0 in)
Max Table Load	600 kg (1,323 lb)
Max Workpiece Height	630 mm (24.8 in)
Rapid Traverse Rate	30 m/min (1,181 ipm)
Positioning Accuracy	6 μm (ISO 230-2)
Machine Weight	5,000 kg (11,023 lb)
CNC Control	Siemens 840D sl / Heidenhain TNC / FANUC (configurable)
Coolant Capacity	200 L (53 gal)
Maximum Product Weight	600 kg
Workbench Size	900 × 560 mm
Maximum Working Height	510 mm
600 Mm	23.6 in.
560 Mm	22 in.
510 Mm	20.1 in.
630 Mm	24.8 in.
600 Kg	1322.8 lbs.
900 Mm	35.4 in.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

6 micron positioning accuracy with direct measuring scales on all axes puts it ahead of most VMCs in this price range
FEM-optimized C-frame casting built in Pfronten, Germany delivers rigidity that punches above its 5,000 kg (11,023 lb) weight class
45-degree way covers and X-only table movement provide the best chip evacuation of any vertical mill, per machinist consensus on Practical Machinist
BIG PLUS spindle interface improves tool rigidity and face contact at the spindle nose, reducing vibration during heavy cuts
inlineMASTER spindle option delivers 121 Nm (89.3 ft-lb) torque at 15,000 RPM with a 36-month unlimited-hours warranty
IoTconnector and direct measuring system now included as standard, no longer an upcharge on current production models
Choice of Siemens 840D sl, Heidenhain TNC, or FANUC on 19-inch SLIMline multi-touch panel lets shops match their existing programming ecosystem

Limitations

Standard 13 kW (17.4 hp) spindle with 82 Nm torque is underpowered for production roughing; the inlineMASTER upgrade adds significant cost but is practically mandatory for serious work
600 mm (23.6 in) X-travel is compact, limiting part size compared to 30-inch-class competitors like the Haas VF-2 or Doosan DNM 5700
New price of $100K+ is nearly double a base Haas VF-2 for a smaller work envelope
6.7-second chip-to-chip time is slow by modern standards, adding up on jobs with frequent tool changes
Forum users report measurable Y-axis droop over extended travel compared to heavier dual-column designs like the Okuma GENOS M560-V

Best For

Precision shops holding single-digit micron tolerances on small-to-medium steel and cast iron parts Mold and die shops running detailed finish work where surface quality matters more than material removal rate European-equipped shops already running Siemens or Heidenhain controls who want platform consistency Medical device manufacturers machining small implants and instruments in stainless and titanium Shops that prioritize build quality and long-term accuracy retention over initial purchase price Production environments where chip evacuation problems on other VMCs cause quality issues or downtime

Frequently Asked Questions

01 What does a new DMG Mori CMX 600 V cost?

DMG Mori doesn't publish prices, but expect $100,000-$150,000 for a new base configuration depending on control choice and options. The inlineMASTER spindle upgrade and 4th axis add $15K-$30K. Used CMX 600V units from 2017-2023 sell for $65,000-$98,000.

02 How does the CMX 600 V compare to the Haas VF-2?

The VF-2 has a larger work envelope (30 vs 23.6 in X-travel), more spindle power (30 vs 17.4 hp), and costs about half as much at $55K base. The CMX 600 V wins on build quality, positioning accuracy (6 micron vs ~12 micron), and chip evacuation. If precision is your priority, go CMX. If you need more envelope and power per dollar, go Haas.

03 Which control should I pick: Siemens, Heidenhain, or Fanuc?

Match your shop. If you're already running Fanuc controls on other machines, stick with Fanuc for programmer compatibility. Siemens 840D sl is the most common choice in Europe and offers deep customization. Heidenhain is preferred by mold shops for its contouring performance and features like Cycle832 for surface finish optimization. All three work well on this machine.

04 Is the standard spindle good enough?

For light-to-medium milling in steel, yes. For production work or aluminum, the 13 kW standard spindle with 82 Nm torque will feel limited. The inlineMASTER upgrade to 20 kW / 15,000 RPM / 121 Nm is worth the extra cost if you're running the machine 8+ hours per day. The 36-month unlimited-hours spindle warranty sweetens the deal.

05 How does the CMX 600 V compare to the Okuma GENOS M560-V?

The M560-V weighs about 6,800 kg (15,000 lb) vs the CMX's 5,000 kg (11,023 lb), carries nearly double the spindle torque, and uses a stiffer dual-column design. It costs $10K-$20K more. The CMX counters with better chip evacuation, control flexibility, and 6 micron accuracy. If you're cutting heavy and need rigidity, go Okuma. If you need precision on lighter cuts with good chip management, go CMX.

06 How is DMG Mori service and support?

DMG Mori has a global service network with regional tech centers. Response times are generally 24-48 hours for non-critical issues. Service contracts run $5K-$10K/year. Parts costs are higher than Haas but availability is good. Forum users report reliable machines with minimal unplanned downtime across 8+ year ownership spans.
