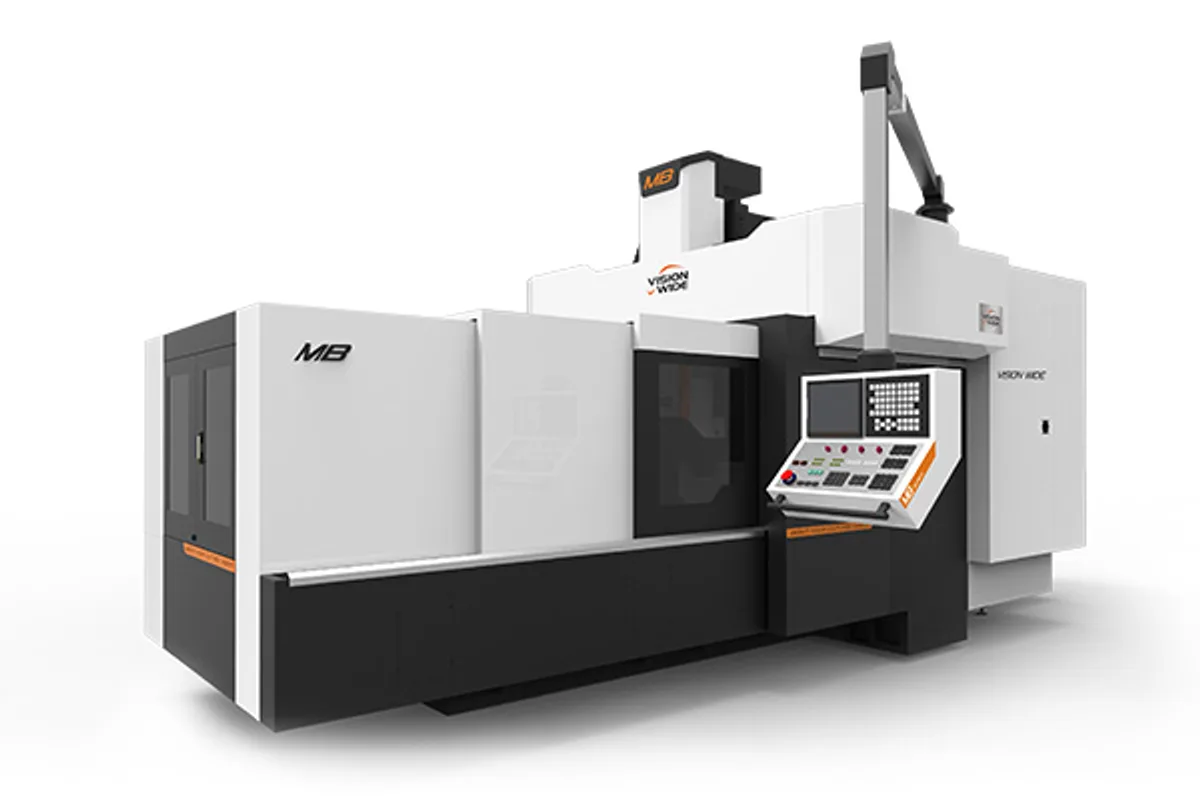

Vision Wide MB-4020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-4020 cost?
Price estimate
We do not have a price for the Vision Wide MB-4020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest MB is the Vision Wide MB-4020. It has 4,100 mm (161.4 in) of X travel, 2,000 mm (78.7 in) of Y, and a 4,100×1,700 mm (161.4×66.9 in) table for 12,000 kg (26,455 lb), on box ways throughout.
Four metres is where the series adds an X-axis ball screw supporter, standard for X travels above 4m. Together with the ball screw cooling system fitted to every MB, it keeps the long screw straight and at a steady temperature. On a sliding-way axis the screw works harder than on rolling guides, because friction is higher, so both measures count for more here.
The series description gathers the rest: hand-scraped box ways, gibs lubricated directly, a one-piece gear head with JIS0 gears, a head balanced by twin hydraulic cylinders, and a side-mounted magazine with a cam-type ATC.
It is a slow, strong machine by intent. Rapid traverse is 12 m/min in X and Y and 15 m/min in Z, with cutting feed of 1-7,000 mm/min. The motor is 18.5/22 kW (24.8/29.5 hp), and for a table of this size the 30/37 kW (40.2/49.6 hp) option should be looked at. Above this length the maker's box way line continues as the MF series; the MF-4000 has a 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 4,100×1,700 mm (161.4×66.9 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y：12 m/min，Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,100 mm (161.4 in) of X travel on box ways
- 12,000 kg (26,455 lb) table load
- X-axis ball screw supporter and ball screw cooling system
- Motor options up to 30/37 kW (40.2/49.6 hp)
Limitations
- X and Y rapids of 12 m/min
- Y travel is limited to 2,000 mm (78.7 in)
- Standard Z travel of 800 mm
Best For
Frequently Asked Questions
01
The MB-4020, with 4,100 mm (161.4 in) of X travel, 2,000 mm (78.7 in) of Y and a 4,100×1,700 mm (161.4×66.9 in) table rated for 12,000 kg (26,455 lb).
02
An X-axis ball screw supporter is standard for X travels above 4m, and a ball screw cooling system is standard on the whole series.
03
The MF series. The MF-4000 has 4,200 mm (165.4 in) of X travel and a 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb), also on box ways.
04
Cutting feed is 1-7,000 mm/min; rapids are 12 m/min in X and Y and 15 m/min in Z. Spindle power is 18.5/22 kW (24.8/29.5 hp), with larger motors optional.
