Vision Wide Vertical Machining Centers (VMC)

Vision Wide MS-2616

Q: How much does the Vision Wide MS-2616 cost?

The price estimate for the Vision Wide MS-2616 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-2616#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

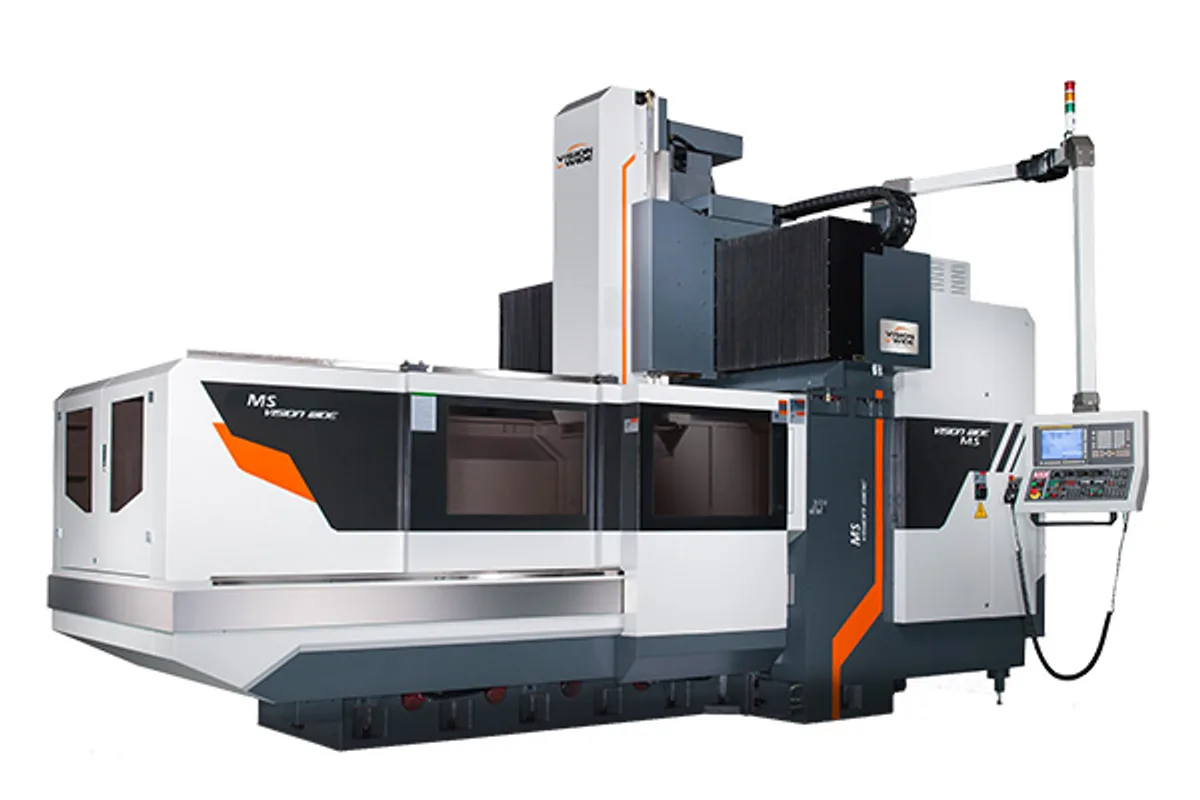

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,500x1,500 mm (98.4x59.1 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

1,600 mm (63.0 in)

z axis travel box way

800 / 1,020 mm (31.5 / 40.2 in) (Opt.)

z axis travel linear way

800 / 1,000 mm (31.5 / 39.4 in) (Opt.)

max table load

9,000 kg (19,841 lb)

How much does the Vision Wide MS-2616 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-2616 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Vision Wide describes the drive of the MS-2616 before anything else. The MS portal mills, it says, are designed with a direct-driven X-Y transmission device, which increases X-Y moving accuracy and combines speed with precision.

Direct drive here means the servo motor is coupled straight to the ball screw, with no belt or reduction between them. A belt stretches and a gear train has lash; taking both out removes two sources of error when the axis reverses, which is when a milled contour shows its flaws. The rapid figures are the same as on the linear-way machining centers of this size, 24 m/min in X and Y, with 15 m/min in Z.

The MS-2616 has 2,600 mm (102.4 in) of X travel and 1,600 mm (63.0 in) of Y. The table is 2,500x1,500 mm (98.4x59.1 in) and carries 9,000 kg (19,841 lb). Both travels are longer than the table, so the cutter can run off every edge.

Spindle power is 18.5/22 kW (24.8/29.5 hp) through a 6,000rpm 2-step gear type spindle on a box way Z axis. The cutting feed range is 1-10,000 mm/min. As on the whole MS line, a tool magazine is an option; the standard accessory list does not include one.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	1,600 mm (63.0 in)
Z Axis Travel Box Way	800 / 1,020 mm (31.5 / 40.2 in) (Opt.)
Z Axis Travel Linear Way	800 / 1,000 mm (31.5 / 39.4 in) (Opt.)
Table Size	2,500x1,500 mm (98.4x59.1 in)
Max Table Load	9,000 kg (19,841 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Spindle Speed Linear Way Direct Driven	10,000 rpm(Opt.)/ 12,000 rpm(Opt.)
Spindle Speed Linear Way Built in	10,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	XY：24 m/min Z：15 m/min
Tool Capacity Vertical Tool Change	32/40 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Direct-driven X-Y transmission, per the maker's description
2,500x1,500 mm (98.4x59.1 in) table for 9,000 kg (19,841 lb)
Travels longer than the table in both X and Y
24 m/min rapids in X and Y

Limitations

Tool magazine is optional
Y travel of 1,600 mm (63.0 in)
No accuracy figure is given to back the drive description

Best For

Contour milling where axis reversal quality shows Plates and die shoes up to 9,000 kg (19,841 lb) Edge-to-edge facing of a 2,500x1,500 mm (98.4x59.1 in) plate

Frequently Asked Questions

01 How are the X and Y axes driven on the Vision Wide MS-2616?

By a direct-driven X-Y transmission device, with a torque enlarger unit on the X axis, according to the maker's description of the MS series. Vision Wide says this increases X-Y moving accuracy.

02 What are the MS-2616 table size and load?

2,500x1,500 mm (98.4x59.1 in) and 9,000 kg (19,841 lb). X travel is 2,600 mm (102.4 in) and Y travel 1,600 mm (63.0 in).

03 How fast is the MS-2616?

Rapid traverse is 24 m/min in X and Y and 15 m/min in Z. The cutting feed range is 1-10,000 mm/min, and the X and Y axes run on roller ways.

04 Is the MS-2616 the same as the SF-2616?

The two specification tables agree row for row. The MS-2616 is listed as a double column milling machine and its tool magazine is an option; the SF-2616 is a machining center with a 32 tools magazine as standard.
