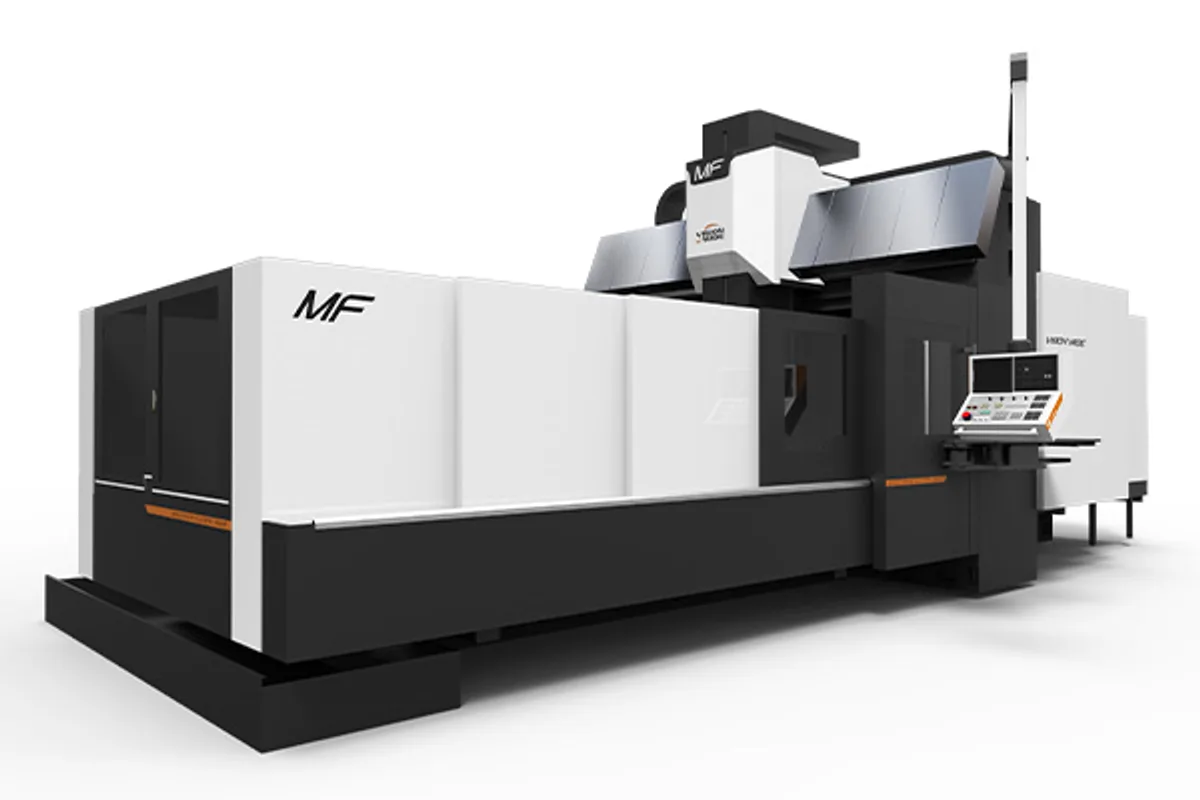

Vision Wide MF-5000
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide MF-5000 cost?
Price estimate
We do not have a price for the Vision Wide MF-5000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Temperature control is built into the Vision Wide MF-5000 to a degree unusual for a heavy milling machine. Vision Wide lists separated oil coolers for the spindle and for the three axes' ball screws, with the temperature set -2 °C lower than room temperature, to control heat deformation while machining.
The arrangement has two parts. The spindle and its gearbox have their own cooler, so the heat of a long roughing cut is carried off before it lengthens the spindle. The three ball screws have a separate, independent cooling device, which the maker says restrains their axial heat extension. Holding the oil just below ambient keeps those parts from drifting upward with the shop through the day.
On this model the benefit is largest, because the X screw is the longest in the series. X travel is 5,200 mm (204.7 in). The table is 5,200x2,050 mm (204.7x80.7 in) and carries 15,000 kg (33,069 lb). Y travel is 2,300 mm (90.6 in).
A box way axis makes more heat than a rolling one, so cooling the screws is not a luxury here. Rapids are 10 m/min in X and 12 m/min in Y and Z. The spindle is a 4,000 rpm two-step gear type with 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,200 mm (204.7 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 5,200x2,050 mm (204.7x80.7 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Max Spindle Speed | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Separated oil coolers for the spindle and the ball screws
- Independent cooling of all three ball screws
- 5,200x2,050 mm (204.7x80.7 in) table for 15,000 kg (33,069 lb)
- 5,200 mm (204.7 in) of X travel on box ways
Limitations
- X rapid of 10 m/min over a long stroke
- No thermal drift figure is published
- Linear scale feedback is an option
Best For
Frequently Asked Questions
01
With separated oil coolers for the spindle and the 3-axes ball screws, set -2 °C lower than room temperature, and an independent cooling device for the ball screws that restrains their axial heat extension.
02
X 5,200 mm (204.7 in), Y 2,300 mm (90.6 in), Z 920 mm or optionally 1,020 mm. The table is 5,200x2,050 mm (204.7x80.7 in).
03
04
Rapid traverse is 10 m/min in X and 12 m/min in Y and Z. Cutting feed is 1-7,000 mm/min. XYZ-axis linear scale feedback is optional.
