Haas Automation Vertical Machining Centers

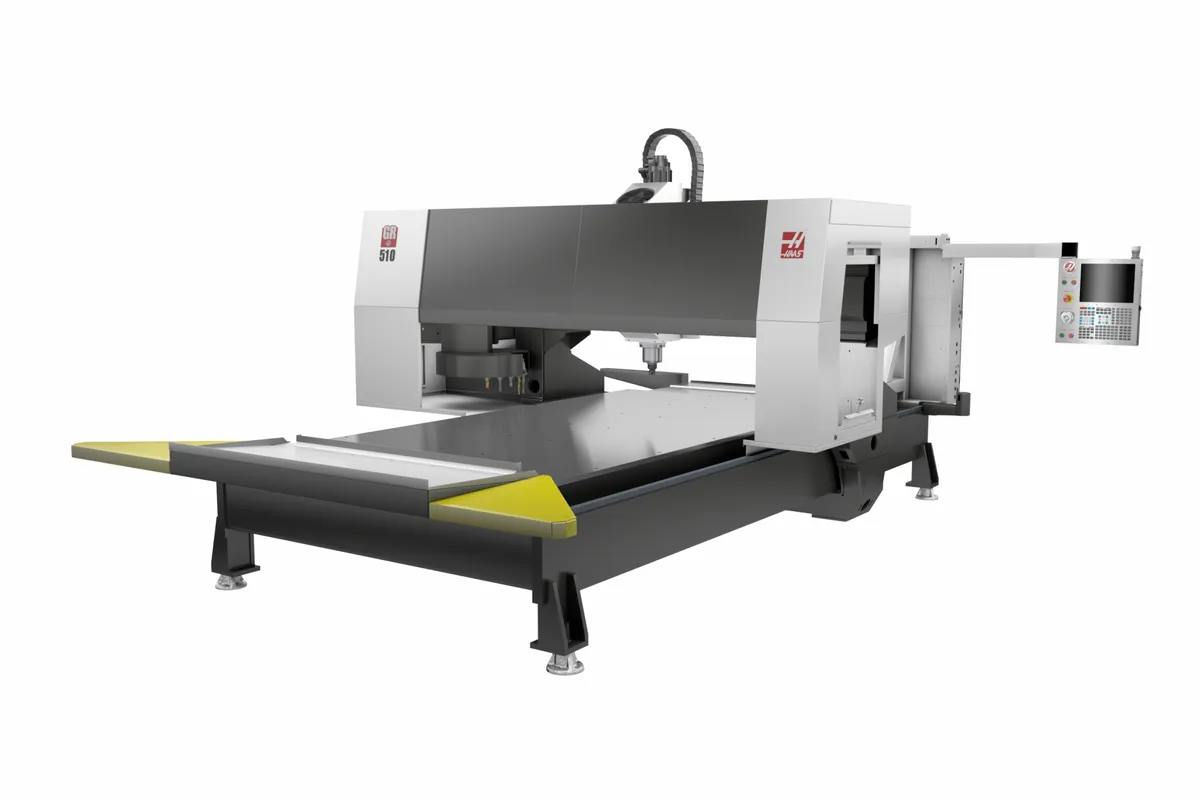

Haas GR-510

$60,000 - $80,000 Updated 2026-03-11

Key Specifications

X Travel

3,073 mm (121 in)

Y Travel

1,549 mm (61 in)

Z Travel

279 mm (11 in)

Max Spindle

8,100 RPM (standard); 15,000 / 30,000 RPM optional

Spindle Taper

CT40

Tool Capacity

10-pocket carousel

Overview

The Haas GR-510 is a large-format gantry router built for shops that need to machine big, flat parts — think aerospace panels, composite layups, sign blanks, large plastic components, and architectural metalwork. With a massive 3,073 x 1,549 x 279 mm (121 x 61 x 11 in) work envelope on a 5-by-10-foot table platform, this machine swallows full-sheet material that would require multiple setups on a conventional VMC. Haas designed it as an affordable entry point into large-format CNC routing, and at roughly $60,000-$80,000 new, it undercuts dedicated router manufacturers by a wide margin.

The standard spindle is an 11.2 kW (15 hp) unit running at 8,100 RPM with a CT40 taper, though Haas offers optional 15,000 RPM and 30,000 RPM spindle upgrades for high-speed routing in aluminum and composites. The gantry design means the spindle travels over a stationary table, which is critical for handling large, heavy workpieces that can't be moved during machining. Rapids are fast — 20.3 m/min (800 ipm) on X, 53.3 m/min (2,100 ipm) on Y, and 27.9 m/min (1,100 ipm) on Z — reflecting the need to cover large distances quickly on a 10-foot platform.

The 10-pocket tool changer is modest by VMC standards, but gantry router work typically uses fewer tools than 3D milling operations. The 1-inch thick aluminum table supports up to 2,722 kg (6,000 lb) of evenly distributed load, and the 62-inch distance between columns provides generous clearance. At 8,800 kg (19,400 lb), the machine has enough mass to maintain rigidity across the full travel range, though the 11-inch Z-travel limits it to relatively thin workpieces.

The GR-510 runs on the Haas Next Generation Control (NGC), the same platform used across all Haas machines. This means operators familiar with any Haas mill can run the GR-510 immediately, and the same HFO service network backs it. For shops doing sign work, aerospace panel trimming, composite machining, or large-format aluminum profiling, the GR-510 offers CNC routing capability at VMC pricing. Used GR-510 machines trade in the $17,000-$40,000 range depending on year and spindle option.

Full Specifications

Parameter	Value
X-Axis Travel	3,073 mm (121 in)
Y-Axis Travel	1,549 mm (61 in)
Z-Axis Travel	279 mm (11 in)
Max Spindle Speed	8,100 RPM (standard); 15,000 / 30,000 RPM optional
Spindle Taper	CT40
Spindle Motor Power	11.2 kW (15 hp)
Spindle Nose To Table Max	343 mm (13.5 in)
Spindle Nose To Table Min	64 mm (2.5 in)
Tool Capacity	10-pocket carousel
Table Size	3,073 x 1,346 mm (121 x 53 in)
Table Load Max	2,722 kg (6,000 lb)
Distance Between Columns	1,575 mm (62 in)
Rapid Traverse X	20.3 m/min (800 ipm)
Rapid Traverse Y	53.3 m/min (2,100 ipm)
Rapid Traverse Z	27.9 m/min (1,100 ipm)
Machine Weight	8,800 kg (19,400 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	359 L (95 gal)

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

5x10-foot work envelope handles full-sheet material that requires multiple setups on conventional VMCs
Base price around $60K makes it one of the most affordable large-format CNC routers from a major manufacturer
Haas NGC control means zero learning curve for shops already running Haas mills or lathes
Optional 15K and 30K RPM spindle upgrades allow high-speed routing in aluminum, plastics, and composites
Gantry design keeps the workpiece stationary — critical for large, heavy parts that can't be accelerated on a moving table
2,722 kg (6,000 lb) table load capacity handles heavy materials and elaborate fixturing

Limitations

11-inch Z-travel limits the machine to relatively thin workpieces — no deep cavity milling
10-pocket tool changer is small; complex jobs requiring many tools need manual tool swaps
Standard 8,100 RPM spindle is slow for high-speed aluminum routing; the 15K or 30K spindle upgrade adds significant cost
15 HP spindle power limits metal removal rates compared to dedicated VMCs used for aluminum plate profiling
No enclosure on the standard configuration — coolant containment and chip management require aftermarket solutions for metal cutting

Best For

Sign shops and architectural fabricators machining large aluminum, plastic, and composite panels Aerospace subcontractors trimming composite layups and profiling aluminum sheet on a 5x10 platform Furniture and fixture manufacturers routing large wood, MDF, and solid surface materials Shops needing affordable large-format CNC capability without investing in a dedicated industrial router Pattern shops and foundries machining large foam, plastic, and wood patterns for casting

Frequently Asked Questions

01 What does a new Haas GR-510 cost?

Base price is approximately $60,000-$65,000. Adding the 15,000 RPM spindle, extended Z option, and other accessories can push it to $75,000-$80,000. Used GR-510 machines from 2010-2020 sell for $17,000-$40,000 depending on year, hours, and spindle configuration.

02 Can the GR-510 cut aluminum?

Yes, but for serious aluminum routing, upgrade to the 15,000 or 30,000 RPM spindle option. The standard 8,100 RPM spindle works for basic aluminum profiling but is too slow for efficient high-speed routing of aluminum panels and plates.

03 What's the difference between the GR-510 and a regular Haas VMC?

The GR-510 is a gantry router — the spindle moves over a stationary table, giving it a 5x10-foot work area. Regular VMCs have moving tables and much smaller envelopes. The trade-off is the GR-510's limited 11-inch Z-travel, which makes it ideal for flat and shallow parts rather than deep 3D machining.

04 Is the GR-510 suitable for production work?

It can handle production runs of flat parts, but the 10-pocket tool changer and moderate spindle power limit throughput compared to dedicated production routers from manufacturers like Thermwood or C.R. Onsrud. The GR-510 excels in low-to-medium volume work and prototype runs.
