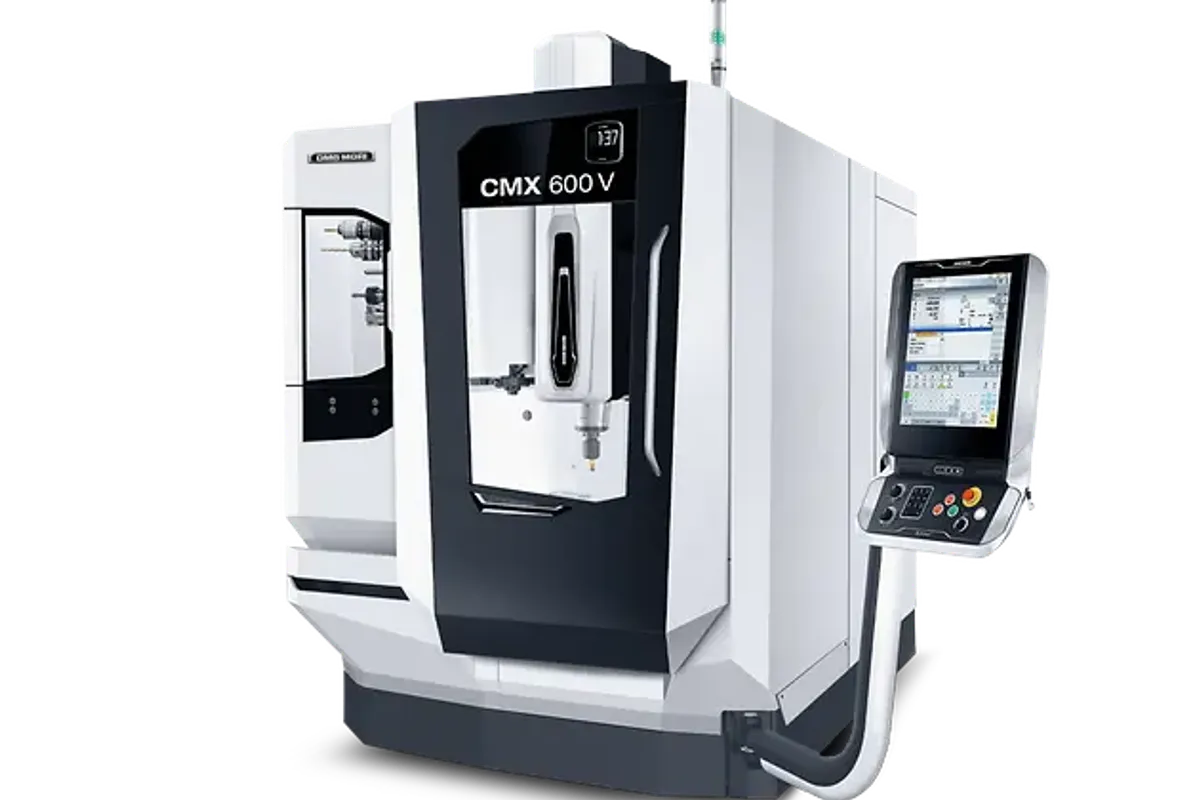

DMG Mori CMX 600 v

$100,000 - $150,000 Updated 2026-03-19

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

560 mm (22.0 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (15,000 RPM optional)

Spindle Taper

SK 40 / BIG PLUS (CAT 40 / BT 40)

Tool Capacity

30 tools (double gripper)

Overview

The DMG Mori CMX 600 v is the current-production designation for DMG Mori's entry-level vertical machining center, sharing the same C-frame architecture and core specifications as the CMX 600 V but with updated branding and minor refinements. Built in Pfronten, Germany, it delivers the FEM-optimized casting, direct measuring scales, and precision engineering that characterize the CMX V series in a compact footprint.

Travel measures 600 x 560 x 510 mm (23.6 x 22.0 x 20.1 in) with a 900 x 560 mm (35.4 x 22.0 in) table supporting maximum workpiece dimensions of 900 mm length, 560 mm width, and 630 mm height at 600 kg (1,323 lb) table load. The table moves only in X, with the spindle handling Y and Z, which combined with 45-degree way covers delivers chip evacuation that machinists consistently rate as the best of any vertical mill.

The improved C-frame design with FEM-optimized rigid construction uses ball screws manufactured to IT 1 tolerance class. Accuracy of positioning reaches 6 µm across all axes without linear scales, and the thermal compensation system maintains precision through temperature variations. The standard spindle runs at 12,000 RPM on an SK 40 (BIG PLUS) taper with optional inlineMASTER upgrade to 15,000 RPM and 20 kW.

Control options include SIEMENS 840D sl, HEIDENHAIN TNC, or MAPPS Fanuc on a 19-inch SLIMline multi-touch panel, giving shops maximum flexibility to match existing programming ecosystems. The CMX 600 v competes with the Haas VF-2, Doosan DNM 4500, and Okuma GENOS M560-V. New machines price between $100,000 and $150,000. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	560 mm (22.0 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	12,000 RPM (15,000 RPM optional)
Spindle Taper	SK 40 / BIG PLUS (CAT 40 / BT 40)
Spindle Motor Power	13 kW (17.4 hp) (20 kW / 26.8 hp optional)
Spindle Torque	82 Nm (60.5 ft-lb) (121 Nm / 89.3 ft-lb optional)
Tool Capacity	30 tools (double gripper)
Table Size	900 x 560 mm (35.4 x 22.0 in)
Max Table Load	600 kg (1,323 lb)
Max Workpiece Length	900 mm (35.4 in)
Max Workpiece Width	560 mm (22.0 in)
Max Workpiece Height	630 mm (24.8 in)
Rapid Traverse Rate	30 m/min (1,181 ipm)
Positioning Accuracy	6 µm (ISO 230-2)
Machine Weight	5,000 kg (11,023 lb)
CNC Control	Siemens 840D sl / Heidenhain TNC / MAPPS Fanuc
600 Mm	23.6 in.
560 Mm	22 in.
510 Mm	20.1 in.
630 Mm	24.8 in.
600 Kg	1322.8 lbs.
900 Mm	35.4 in.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

6 µm positioning accuracy with FEM-optimized C-frame delivers precision that punches above its price class
45-degree way covers and X-only table movement provide industry-leading chip evacuation for a vertical mill
BIG PLUS spindle interface improves tool rigidity at the spindle nose, reducing vibration during heavy cuts
Three control options (Siemens, Heidenhain, Fanuc) let shops match existing programming ecosystems
IT 1 tolerance class ball screws and thermal compensation maintain accuracy through production shifts
inlineMASTER spindle option delivers 121 Nm torque at 15,000 RPM with a 36-month warranty

Limitations

Standard 13 kW spindle with 82 Nm torque is underpowered for production roughing -- inlineMASTER upgrade is practically mandatory
600 mm X-travel is compact, limiting part size compared to 30-inch-class competitors
30 m/min rapids are slow compared to machines with 42-60 m/min capability
At $100K+, it costs nearly double a base Haas VF-2 for a smaller work envelope

Best For

Precision shops holding single-digit micron tolerances on small-to-medium steel and cast iron parts Mold and die shops running detailed finish work where surface quality matters more than material removal rate European-equipped shops already running Siemens or Heidenhain controls who want platform consistency Medical device manufacturers machining small implants and instruments in stainless and titanium Production environments where chip evacuation problems on other VMCs cause quality issues or downtime

Frequently Asked Questions

01 What does a new CMX 600 v cost?

Expect $100,000-$150,000 depending on control choice and options. The inlineMASTER spindle upgrade and 4th axis add $15K-$30K. Used units from 2017-2023 sell for $65,000-$98,000.

02 CMX 600 v vs CMX 600 V -- is there a difference?

The lowercase v is the current-production naming convention. Core specifications are identical. The CMX 600 v may include minor updates to standard features like IoTconnector and direct measuring system included as standard.

03 How does the CMX 600 v compare to the Haas VF-2?

The VF-2 has a larger work envelope (30 vs 23.6 in X-travel), more spindle power (30 vs 17.4 hp), and costs about half. The CMX wins on build quality, positioning accuracy (6 vs ~12 µm), and chip evacuation. Precision vs value.

04 Which control should I pick?

Match your shop. Fanuc for compatibility with existing programs. Siemens 840D sl is most common in Europe with deep customization. Heidenhain is preferred by mold shops for contouring performance. All three work well.
