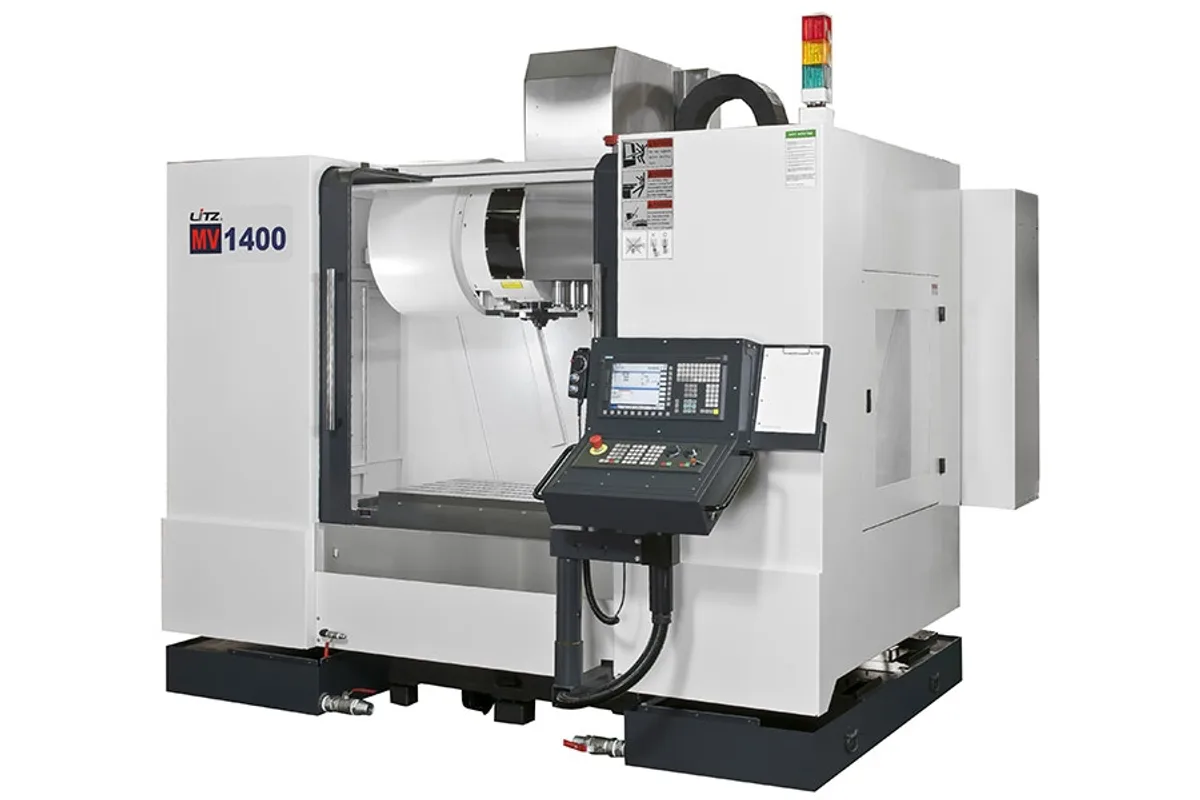

Litz MV-1400A
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz MV-1400A cost?
Price estimate
We do not have a price for the Litz MV-1400A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz MV-1400A is a large-table vertical machining center with BT-40 tooling: 1,400 mm (55.1 in) of X travel, 650 mm (25.6 in) of Y and 675 mm (26.6 in) of Z, an 8,000 rpm spindle and a 1,000 kg (2,205 lb) table rating. The machine weighs 11,000 kg (24,250 lb).
From this size up the MV series changes character. Rapids fall to 24 / 24 / 20 m/min (945 / 945 / 787 ipm) and maximum cutting feed to 10,000 mm/min, half the figure of the MV-1200A. Litz lists a front door safety system as standard, and a ZF gearbox among the options. These are the marks of a machine for heavy plates and long cycle times, where rigidity counts for more than traverse speed.
The spindle motor is 11 / 15 kW (15 / 20 HP), continuous and 30 min. Standard speed is 8,000 rpm with 10,000 rpm and 12,000 rpm as options. One oddity in the table: the standard magazine is given as 20 tools, while the accessory list names a 24T arm type magazine as standard and a 32T one as optional. Confirm the magazine size in the quotation.
The 1,400 x 620 mm (55.1 x 24.4 in) table has five 18 mm T-slots. Spindle nose to table distance is 85 to 760 mm (3.3 to 29.9 in). Tools are limited to 7 kg (15 lb), 300 mm (11.8 in) long, and 80 mm (3.1 in) in diameter with adjacent tools or 125 mm (4.9 in) without. Supply is 35 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 675 mm (26.6 in) |
| Distance Spindle Nose to Table | 85 to 760 mm (3.3 to 29.9 in) |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 20 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in) with adjacent tool / 125 mm (4.9 in) without adjacent tool |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Method | ARM |
| Tool Shank | BT-40 |
| Spindle Motor Power | 11 / 15 kW (15 / 20 HP) (continuous / 30 min rated) |
| Axis Motors Xyz | 2.0 / 2.0 / 3.5 kW |
| Table Size | 1,400 x 620 mm (55.1 x 24.4 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| T-Slots | 5 x 18 mm x 100 mm (number x width x distance from the center) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| CNC Control | Mitsubishi M80 |
| Machine Weight | 11,000 kg (24,250 lb) |
| Power Requirement | 35 kVA |
| Coolant Tank Capacity | 360 L |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 24 / 24 / 20 m/min (945 / 945 / 787 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,400 x 650 x 675 mm travels with a 1,000 kg (2,205 lb) table load
- 11 / 15 kW (15 / 20 HP) motor on an 8,000 rpm BT-40 spindle
- 10,000 rpm and 12,000 rpm spindles and a ZF gearbox are available as options
- Up to 760 mm (29.9 in) from spindle nose to table for tall parts
Limitations
- Rapids of 24 / 24 / 20 m/min (945 / 945 / 787 ipm) are slower than the 36 / 36 / 24 m/min of the MV-1200A
- Cutting feed tops out at 10,000 mm/min
- Tool weight is limited to 7 kg (15 lb)
- Table and accessory list disagree on the standard magazine size
Best For
Frequently Asked Questions
01
The MV-1400A travels 1,400 mm (55.1 in) in X, 650 mm (25.6 in) in Y and 675 mm (26.6 in) in Z. The table measures 1,400 x 620 mm (55.1 x 24.4 in), carries 1,000 kg (2,205 lb), and sits 85 to 760 mm (3.3 to 29.9 in) below the spindle nose.
02
The MV-1400A is the BT-40 machine: 8,000 rpm, 11 / 15 kW, tools up to 7 kg (15 lb). The MV-1400B is BT-50 at 6,000 rpm with a 15 / 18.5 kW motor and tools up to 15 kg (33 lb). Travels, table and the 11,000 kg (24,250 lb) weight are the same.
03
Rapid traverse is 24 m/min (945 ipm) in X and Y and 20 m/min (787 ipm) in Z. Cutting feed is programmable from 1 to 10,000 mm/min. Axis motors are 2.0 / 2.0 / 3.5 kW.
04
The specification table gives 20 tools. The accessory list, however, marks a 24T arm type magazine as standard and a 32T arm type magazine as an option, so the count should be confirmed with Litz when ordering.
