Vision Wide MSE-2118

Q: How much does the Vision Wide MSE-2118 cost?

The price estimate for the Vision Wide MSE-2118 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-mse-2118#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

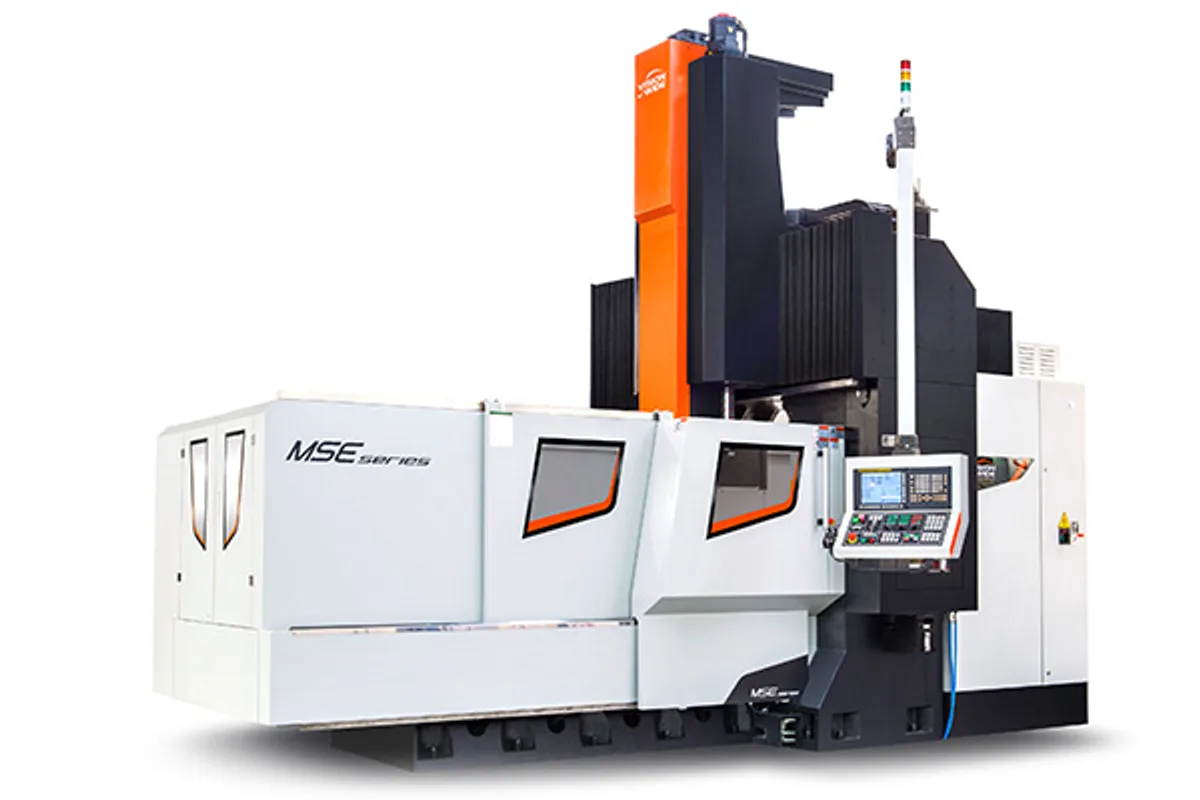

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Table Size

2,300x1,600 mm (90.6x63.0 in)

x axis travel

2,100 mm (82.7 in)

y axis travel

1,800 mm (70.9 in)

z axis travel

800/1,000 mm (31.5/39.4 in) (Opt.)

max table load

10,000 kg (22,046 lb)

How much does the Vision Wide MSE-2118 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MSE-2118 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

On a machine where tools are changed by hand, tool measurement does the job a magazine's stored offsets would do. The Vision Wide MSE-2118 offers auto tool length measurement and auto workpiece coordinate measurement as options, and for this model they are close to essential.

Consider a mold finished with four cutters. Each time the operator loads one, its length has to be known accurately or the new tool path will sit above or below the last. An automatic tool setter measures it in the machine in seconds and writes the offset. Workpiece measurement does the same for the part: after the mold is clamped, a probe finds its datum faces and sets the work coordinates. With both, a manual-change machine loses little to a machining center on jobs of a few tools.

The MSE-2118 has 2,100 mm (82.7 in) of X travel, 1,800 mm (70.9 in) of Y and a 2,300x1,600 mm (90.6x63.0 in) table that carries 10,000 kg (22,046 lb).

Position feedback is by linear scale on all three axes as standard. The spindle is a 15,000 rpm direct driven BBT-40 unit, 15/ 18.5 kW (20.1/ 24.8 hp). Feed is 1-24,000 mm/min and rapid traverse 24 m/min, or 30 m/min.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	1,800 mm (70.9 in)
Z Axis Travel	800/1,000 mm (31.5/39.4 in) (Opt.)
Table Size	2,300x1,600 mm (90.6x63.0 in)
Max Table Load	10,000 kg (22,046 lb)
Spindle Power Cont 30 Min	15/ 18.5 kW (20.1/ 24.8 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-24,000 mm/min
Rapid Traverse Xyz	24/30 m/min (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Auto tool length measurement and auto workpiece coordinate measurement available
2,300x1,600 mm (90.6x63.0 in) table for 10,000 kg (22,046 lb)
Linear scale feedback on X, Y and Z as standard
15,000 rpm spindle with 24,000 mm/min cutting feed

Limitations

Both measurement systems are options
No tool magazine is listed
Standard Z travel is 800 mm

Best For

Mid-size molds finished with a handful of tools Shops that probe parts and tools in the machine Parts up to 10,000 kg (22,046 lb)

Frequently Asked Questions

01 Does the Vision Wide MSE-2118 have tool measurement?

As an option. Auto tool length measurement and auto workpiece coordinate measurement are both on the optional accessory list. XYZ axis linear scale feedback is standard.

02 What are the MSE-2118 travels?

2,100 mm (82.7 in) in X, 1,800 mm (70.9 in) in Y and 800/1,000 mm (31.5/39.4 in) (Opt.) in Z, with the longer stroke as an option.

03 How much does the MSE-2118 table carry?

10,000 kg (22,046 lb) on a 2,300x1,600 mm (90.6x63.0 in) table. The MSE-1618 carries 8,000 kg (17,637 lb) and the MSE-2618 carries 12,000 kg (26,455 lb).

04 What are the feeds of the MSE-2118?

Cutting feed is 1-24,000 mm/min. Rapid traverse is 24 m/min as standard and 30 m/min as an option, as shown by the row 24/30 m/min (Opt.).
