Vision Wide MB-3020

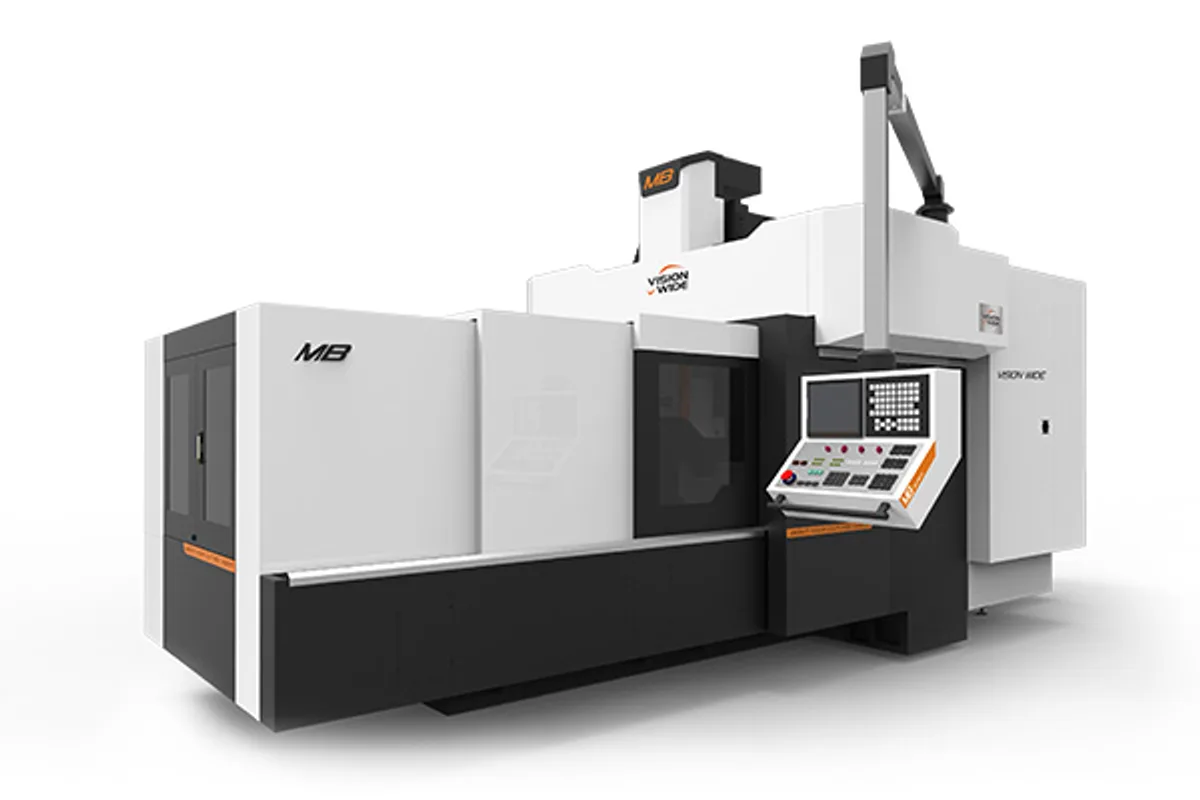

Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-3020 cost?
Price estimate
We do not have a price for the Vision Wide MB-3020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MB-3020 is built on what the maker calls a wide base with solid columns and beam, for the structural stiffness that keeps three-axis geometry true. X travel is 3,100 mm (122.0 in), Y travel 2,000 mm (78.7 in), and the 3,100×1,700 mm (122.0×66.9 in) table carries 11,000 kg (24,250 lb).
Geometry is the right word for a box way machine. Its accuracy is made at assembly, by scraping each way until the axes are straight and square to one another, and it is kept by a structure that does not move under load or with time. A wide base resists the twisting a heavy part causes as the table carries it from one end of the bed to the other. Solid columns and a solid beam keep the Y axis parallel to the table through a heavy cut.
For the operator, Vision Wide points to a hanging, swivelling operation panel and a multilayer front door, described as a friendly and safe operating interface.
Rapids are 12 m/min in X and Y and 15 m/min in Z. The standard spindle is a 4,000 rpm two-step gear type with 18.5/22 kW (24.8/29.5 hp). A ball screw cooling system and a cutting fluid cooling system are standard, and chips leave by screw and caterpillar conveyors.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 3,100×1,700 mm (122.0×66.9 in) |
| Max Table Load | 11,000 kg (24,250 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y：12 m/min，Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Wide base with solid columns and beam
- 3,100×1,700 mm (122.0×66.9 in) table for 11,000 kg (24,250 lb)
- Hanging, swivelling operation panel and multilayer front door
- Ball screw cooling system is standard
Limitations
- X and Y rapids of 12 m/min
- No geometric accuracy figures are published
- Y travel of 2,000 mm (78.7 in) is the series maximum
Best For
Frequently Asked Questions
01
That a wide base with solid columns and beam provides the best structure stiffness to ensure the best geometric accuracy of 3-axis travel. No accuracy figures are given on the page.
02
3,100×1,700 mm (122.0×66.9 in) and 11,000 kg (24,250 lb). X travel is 3,100 mm (122.0 in) and Y travel 2,000 mm (78.7 in).
03
A Fanuc 0iMF PLUS Controller, a 4,000 rpm two-step gear spindle, a ball screw cooling system, a cutting fluid cooling system, a screw type chip conveyor on the table sides and a caterpillar type chip conveyor with water tank.
04
Rapid traverse is 12 m/min in X and Y and 15 m/min in Z. The cutting feed range is 1-7,000 mm/min, as on every MB model.
