Vision Wide MSE-1618

Q: How much does the Vision Wide MSE-1618 cost?

The price estimate for the Vision Wide MSE-1618 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-mse-1618#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

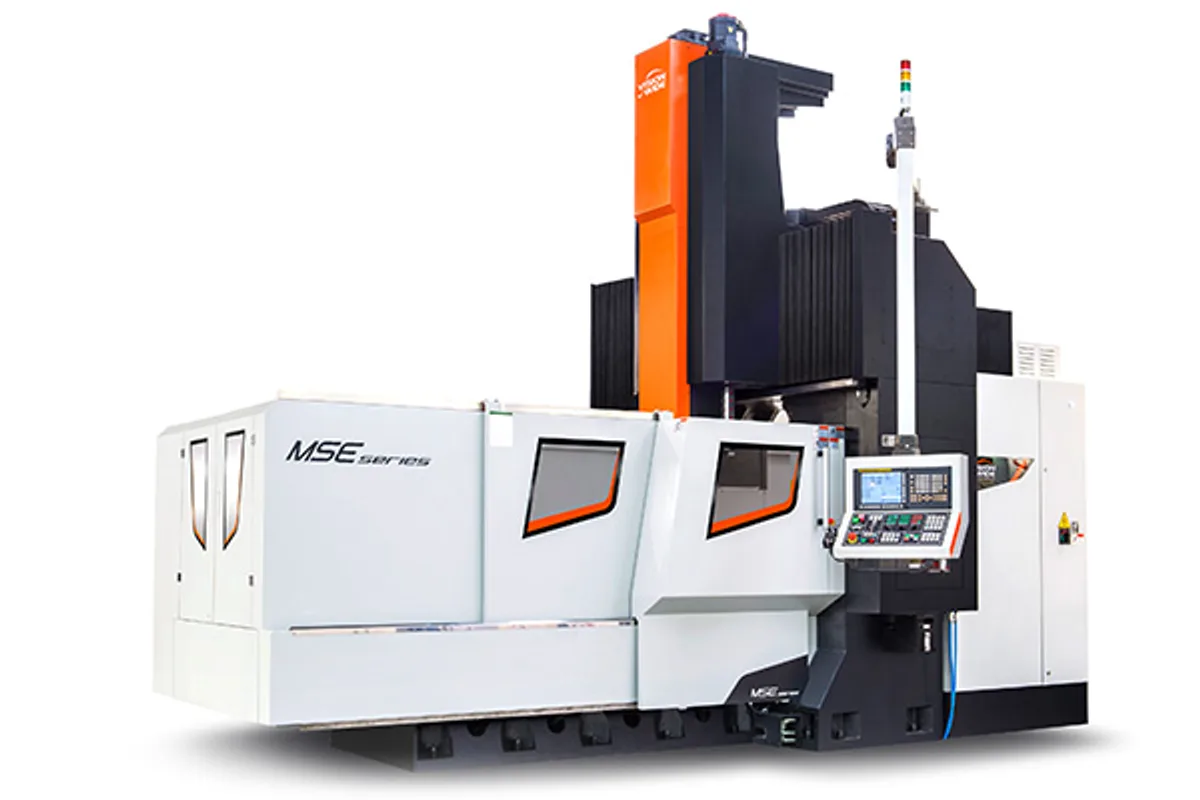

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Table Size

1,800x1,600 mm (70.9x63.0 in)

x axis travel

1,600 mm (63.0 in)

y axis travel

1,800 mm (70.9 in)

z axis travel

800/1,000 mm (31.5/39.4 in) (Opt.)

max table load

8,000 kg (17,637 lb)

How much does the Vision Wide MSE-1618 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MSE-1618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide MSE-1618 has a table close to square, 1,800x1,600 mm (70.9x63.0 in), under 1,600 mm (63.0 in) of X and 1,800 mm (70.9 in) of Y travel. It carries 8,000 kg (17,637 lb).

Spindle options on this series are sorted by control, and the built-in spindles show the split most clearly. With the FANUC control: 12,000 rpm on #50 / HSK-A100, or 20,000 / 24,000 / 28,000 rpm on #40 / HSK-A63. With the HEIDENHAIN control: 15,000 rpm on #50 / HSK-A100, or 18,000 / 20,000 / 24,000 / 28,000 rpm on #40 / HSK-A63. So a HEIDENHAIN machine gains a faster large-taper spindle and an extra step in the small-taper range.

A built-in spindle has its motor inside the spindle cartridge, with no coupling or belt. It runs smoother at high speed than a direct driven unit, which is the reason to choose one for fine surface work, and it is why this choice comes up on a machine sold for mold finishing.

The standard build is simpler: a Fanuc 0iMF PLUS controller and a direct driven 15,000 rpm BBT-40 spindle with 15/ 18.5 kW (20.1/ 24.8 hp). Feed is 1-24,000 mm/min. No magazine is listed.

Full Specifications

Parameter	Value
X Axis Travel	1,600 mm (63.0 in)
Y Axis Travel	1,800 mm (70.9 in)
Z Axis Travel	800/1,000 mm (31.5/39.4 in) (Opt.)
Table Size	1,800x1,600 mm (70.9x63.0 in)
Max Table Load	8,000 kg (17,637 lb)
Spindle Power Cont 30 Min	15/ 18.5 kW (20.1/ 24.8 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-24,000 mm/min
Rapid Traverse Xyz	24/30 m/min (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Built-in spindle options from 12,000 rpm (#50) to 28,000 rpm (#40)
Near-square 1,800x1,600 mm (70.9x63.0 in) table
1,800 mm (70.9 in) of Y travel
Fanuc standard, FANUC 31iB or HEIDENHAIN TNC 620/640 optional

Limitations

Available spindles depend on the control chosen
X travel of 1,600 mm (63.0 in) is shorter than Y
No tool magazine is listed for the series

Best For

Fine surface finishing with a built-in spindle Square molds such as wheel tools Parts up to 8,000 kg (17,637 lb)

Frequently Asked Questions

01 Which built-in spindles are offered on the Vision Wide MSE-1618?

For FANUC: 12,000 rpm (#50 / HSK-A100) and 20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63). For HEIDENHAIN: 15,000 rpm (#50 / HSK-A100) and 18,000 / 20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63).

02 What is the standard spindle on the MSE-1618?

A direct driven spindle at 15,000 rpm with a BBT-40 taper. The table lists 15/ 18.5 kW (20.1/ 24.8 hp) of spindle power.

03 What are the MSE-1618 travels and table?

X 1,600 mm (63.0 in), Y 1,800 mm (70.9 in), Z 800 mm or optionally 1,000 mm. The table is 1,800x1,600 mm (70.9x63.0 in) for 8,000 kg (17,637 lb).

04 Which controls can the MSE-1618 have?

Fanuc 0iMF PLUS is standard. The FANUC 31iB Controller and the HEIDENHAIN TNC 620/640 Controller are options, and each has its own list of spindle options.
