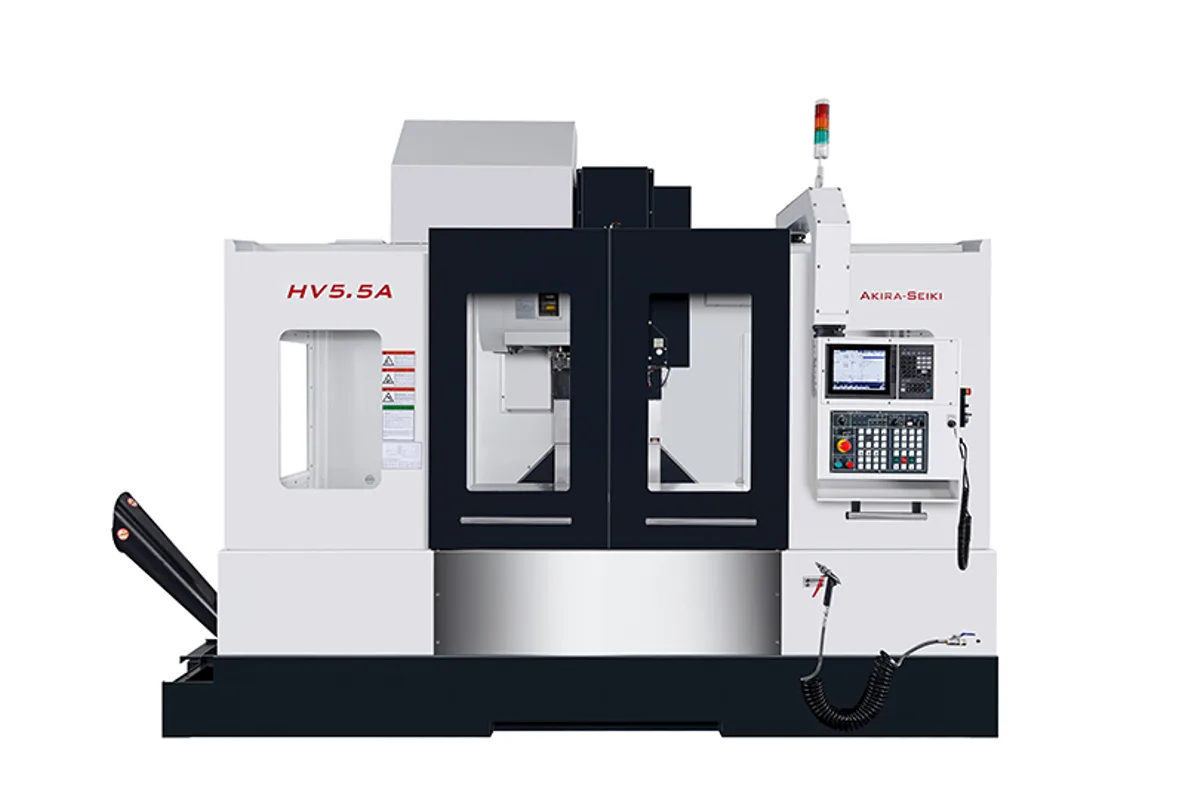

Akira Seiki HV5.5A
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki HV5.5A cost?
Price estimate
We do not have a price for the Akira Seiki HV5.5A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 1,500 x 600 mm (59 x 23.6 in) table under a 50-taper spindle: that is the Akira Seiki HV5.5A. X travel is 1,350 mm (53 in), Y is 640 mm (25 in), Z is 660 mm (26 in), and the table is rated for 1,500 kg (3,307 lb) standard and 1,800 kg (3,968 lb) maximum.
It shares its column and saddle with the HV4.5A. The longer X adds little to the machine: weight goes from 8,033 kg (17,710 lb) on the HV4.5A to 8,290 kg (18,276 lb) here, and the footprint to 3,800 x 2,495 mm (150 x 98 in). The coolant tank grows to 400 L (105.7 gal).
The spindle is BT50 / CAT50, 42 HP (31.3 kW) peak with 35 HP (26.1 kW) available for 30 minutes, at 8,000 rpm or an optional 6,000 rpm. Is 8,000 rpm enough? For the face mills, shell mills and indexable drills a 50-taper machine exists to drive, yes. For small end mills in aluminium, no, and the V5.5XP on the same travels is the better fit.
Listed accuracy is 0.01 mm (0.00039 in) positioning and ±0.003 mm (±0.00012 in) repeatability, the tighter of the two accuracy classes in the HV series. Power requirement is 35 kVA. Chips go to a drawer.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 1,350 mm (53 in) |
| Y Axis Travel | 640 mm (25 in) |
| Z Axis Travel | 660 mm (26 in) |
| Distance Spindle Nose to Table | 100~760 mm (4~30 in) |
| Spindle Center to Column Cover | 640 mm (25 in) |
| Table Size | 1,500 x 600 mm (59 x 23.6 in) |
| T-Slots | 18 mm x 100 mm pitch x 5 slots |
| Max Table Load | 1,800 kg (3,968 lb) |
| Standard Table Load | 1,500 kg (3,307 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Spindle Power 30 Min | 35 HP (26.1 kW) (30 min) |
| Max Spindle Speed | 8,000 rpm / 6,000 rpm (OPT) |
| Spindle Taper | BT50 / CAT50 |
| Spindle Cooling | Oil chilling |
| Cutting Feed Rate | 8 / 8 / 8 m/min (315 / 315 / 315 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 100 mm (3.9 in) |
| Max Tool Diameter Without Adjacent Tools | 200 mm (7.9 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Change Time | 3.5 s |
| Coolant Tank Capacity | 400 L (105.7 gal) |
| Chip Disposal | Drawer |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 3,800 x 2,495 mm (150 x 98 in) |
| Machine Weight | 8,290 kg (18,276 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,350 mm (53 in) of X travel with a 42 HP (31.3 kW) peak 50-taper spindle
- Table rated to 1,800 kg (3,968 lb) maximum
- Positioning 0.01 mm (0.00039 in), repeatability ±0.003 mm (±0.00012 in)
- Magazine takes tools to 200 mm (7.9 in) in diameter with empty neighbours
Limitations
- Spindle speed stops at 8,000 rpm
- Y travel of 640 mm (25 in) is narrow next to the 850 mm (33.5 in) of the HV6A
- Tool change takes 3.5 s, tool to tool
- A drawer is the only chip disposal listed
Best For
Frequently Asked Questions
01
X 1,350 mm (53 in), Y 640 mm (25 in), Z 660 mm (26 in). The table is 1,500 x 600 mm (59 x 23.6 in) with five 18 mm T-slots at 100 mm pitch, and the spindle nose is 100~760 mm (4~30 in) above it.
02
Not much. The HV5.5A weighs 8,290 kg (18,276 lb) and the HV4.5A 8,033 kg (17,710 lb). The two share Y and Z travels and the same spindle; the HV5.5A has the longer X and the larger table rating.
03
42 HP (31.3 kW) peak and 35 HP (26.1 kW) on the 30-minute rating, through a BT50 / CAT50 taper. Maximum speed is 8,000 rpm, or 6,000 rpm as an option. The spindle is oil chilled.
04
A power requirement of 35 kVA and compressed air at 0.5 MPa (72.5 psi). The machine measures 3,800 x 2,495 mm (150 x 98 in) and the coolant tank holds 400 L (105.7 gal).
