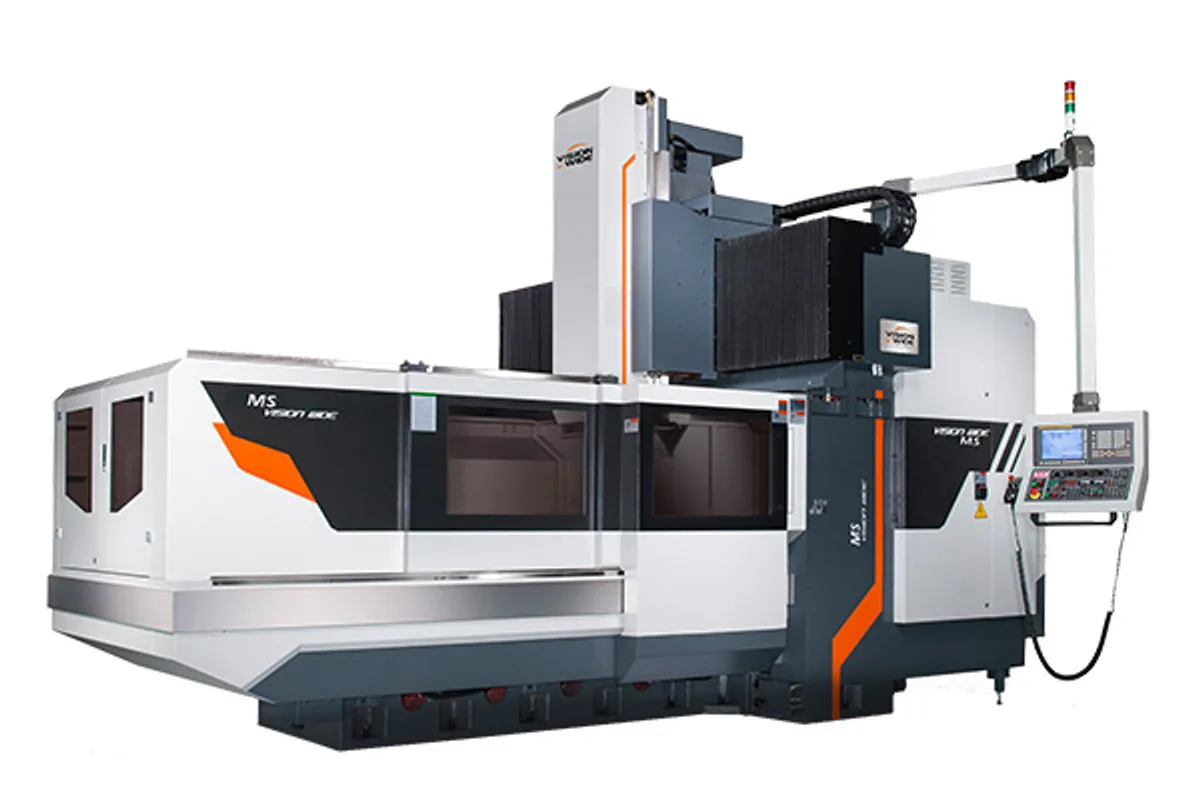

Vision Wide MS-4127
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-4127 cost?
Price estimate
We do not have a price for the Vision Wide MS-4127 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest MS is the Vision Wide MS-4127, with 4,100 mm (161.4 in) of X travel, 2,700 mm (106.3 in) of Y and a 4,000x1,800 mm (157.5x70.9 in) table rated for 12,000 kg (26,455 lb).
It collects the features Vision Wide lists for the series at their most demanding. The X axis moves the heaviest table through a torque enlarger unit, at 18 m/min. The Y axis spans the longest beam on roller ways, with the upper way on top of the beam, at 20 m/min. The head, on box ways, is balanced by twin hydraulic cylinders and a nitrogen accumulator, and rapids at 15 m/min.
Beyond this size the maker's milling machines change family. The MN series starts at 3,100 mm of X with five-face heads, and its first model, the MN-3023 / MN-3030, carries 13,000 kg (28,660 lb) on a 3,000×2,050 mm (118.1×80.7 in) table. A buyer whose parts press against the MS-4127's limits in weight or width should look there.
Spindle power is 18.5/22 kW (24.8/29.5 hp), optionally 22/26 kW (29.5/34.9 hp), through a 6,000 rpm 2-step gear spindle. Cutting feed is 1-10,000 mm/min. The control is a FANUC 0iMF PLUS, and XYZ axis linear scale feedback is an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 4,000x1,800 mm (157.5x70.9 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：18/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest MS envelope: 4,100 mm (161.4 in) by 2,700 mm (106.3 in)
- 4,000x1,800 mm (157.5x70.9 in) table for 12,000 kg (26,455 lb)
- Torque enlarger X drive, roller way Y axis and counterbalanced box way Z
- Optional 22/26 kW (29.5/34.9 hp) motor and linear scale feedback
Limitations
- Rapids of 18 m/min in X and 20 m/min in Y
- Linear scales are optional on a 4,100 mm (161.4 in) axis
- No standard tool magazine
Best For
Frequently Asked Questions
01
The MS-4127: 4,100 mm (161.4 in) of X travel, 2,700 mm (106.3 in) of Y, and a 4,000x1,800 mm (157.5x70.9 in) table for 12,000 kg (26,455 lb).
02
X/Y/Z：18/20/15 m/min. Cutting feed is 1-10,000 mm/min. The shorter MS-3127 lists X/Y/Z : 24/20/15 m/min, so only X slows with length.
03
A 2-step gear spindle on a box way head, 6,000 rpm standard and 4,000 rpm optional, with 18.5/22 kW (24.8/29.5 hp). A 22/26 kW (29.5/34.9 hp) motor is optional.
04
The MN series of five-face milling machines. Its smallest pair, the MN-3023 / MN-3030, has a 3,000×2,050 mm (118.1×80.7 in) table for 13,000 kg (28,660 lb), and the series continues to much longer tables.
