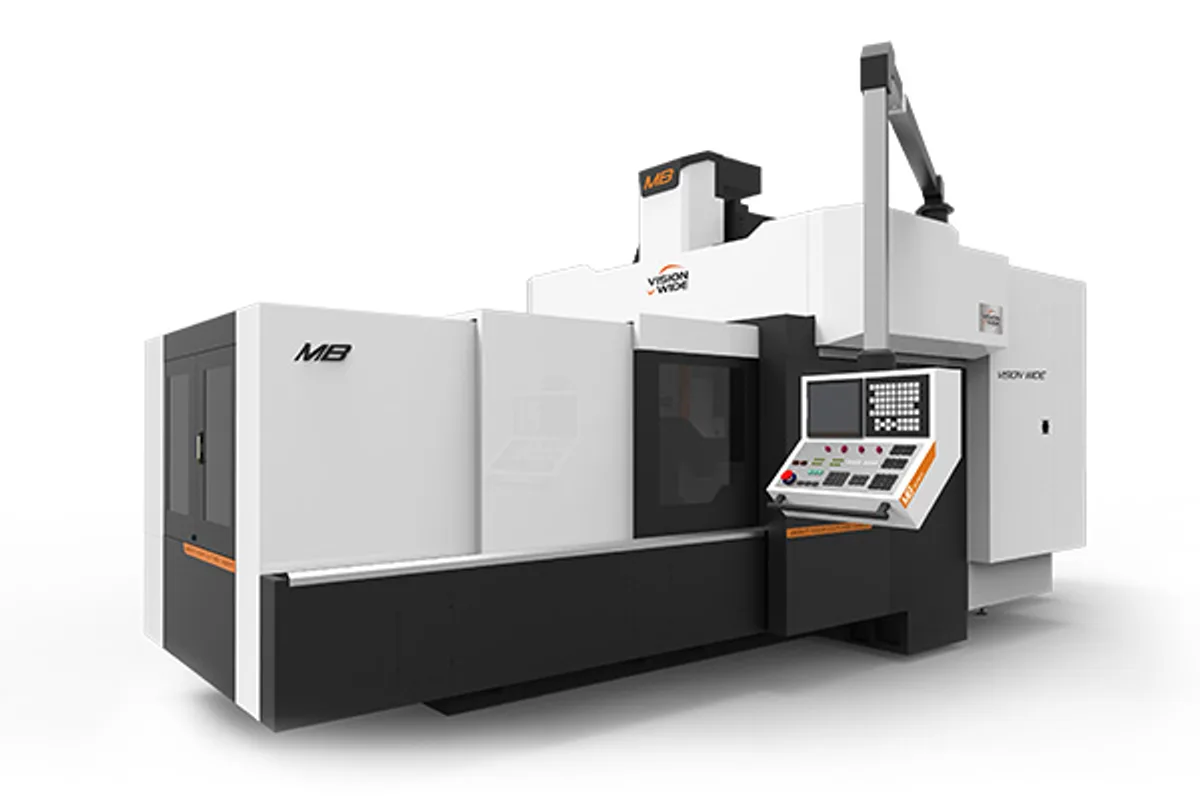

Vision Wide MB-2020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-2020 cost?
Price estimate
We do not have a price for the Vision Wide MB-2020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The head of the Vision Wide MB-2020 is carried by twin hydraulic cylinders backed by a pressured nitrogen accumulator. Vision Wide says the cylinders are self-aligning and that the balancing force is set by an adjustable pressure valve.
On a box way Z axis the counterbalance does more than save the motor. Without it, the full weight of the head and gearbox would bear on the ball screw and load one face of the ways, and fine downward feeds would be jerky. Balanced, the head moves as readily up as down, which is what the maker means by smooth and accurate feeding. Self-aligning cylinders do not side-load the slide if the mounts are a little out, and an adjustable valve lets the force be reset when a heavier head or attachment is fitted.
The MB-2020 is the square model of the series: 2,000 mm (78.7 in) in both X and Y, with a 2,000×1,700 mm (78.7×66.9 in) table for 9,000 kg (19,841 lb). Z travel is 800 mm, or 1,020 mm as an option.
Rapids are 15 m/min on all axes. The spindle is geared, 4,000 rpm as standard, and the motor 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 2,000×1,700 mm (78.7×66.9 in) |
| Max Table Load | 9,000 kg (19,841 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Twin hydraulic cylinders with nitrogen accumulator balance the head
- Self-aligning cylinders with an adjustable pressure valve
- Square 2,000 mm (78.7 in) travels in X and Y
- 2,000×1,700 mm (78.7×66.9 in) table for 9,000 kg (19,841 lb)
Limitations
- A hydraulic counterbalance adds a system to maintain
- X travel of 2,000 mm (78.7 in) is the shortest in the series
- Standard Z travel is 800 mm
Best For
Frequently Asked Questions
01
By twin hydraulic cylinders plus a pressured nitrogen accumulator. Vision Wide says the cylinders are self-aligning and the balancing force is set optimally by an adjustable pressure valve.
02
2,000 mm (78.7 in) in X, 2,000 mm (78.7 in) in Y and 800 mm in Z, with 1,020 mm optional. The table is 2,000×1,700 mm (78.7×66.9 in).
03
9,000 kg (19,841 lb) in total. The MB-2016, with a 2,000×1,300 mm (78.7×51.2 in) table, carries 8,000 kg (17,637 lb).
04
18.5/22 kW (24.8/29.5 hp) as standard. Motors of 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) are options, with a gear spindle of 4,000 rpm or 6,000 rpm.
