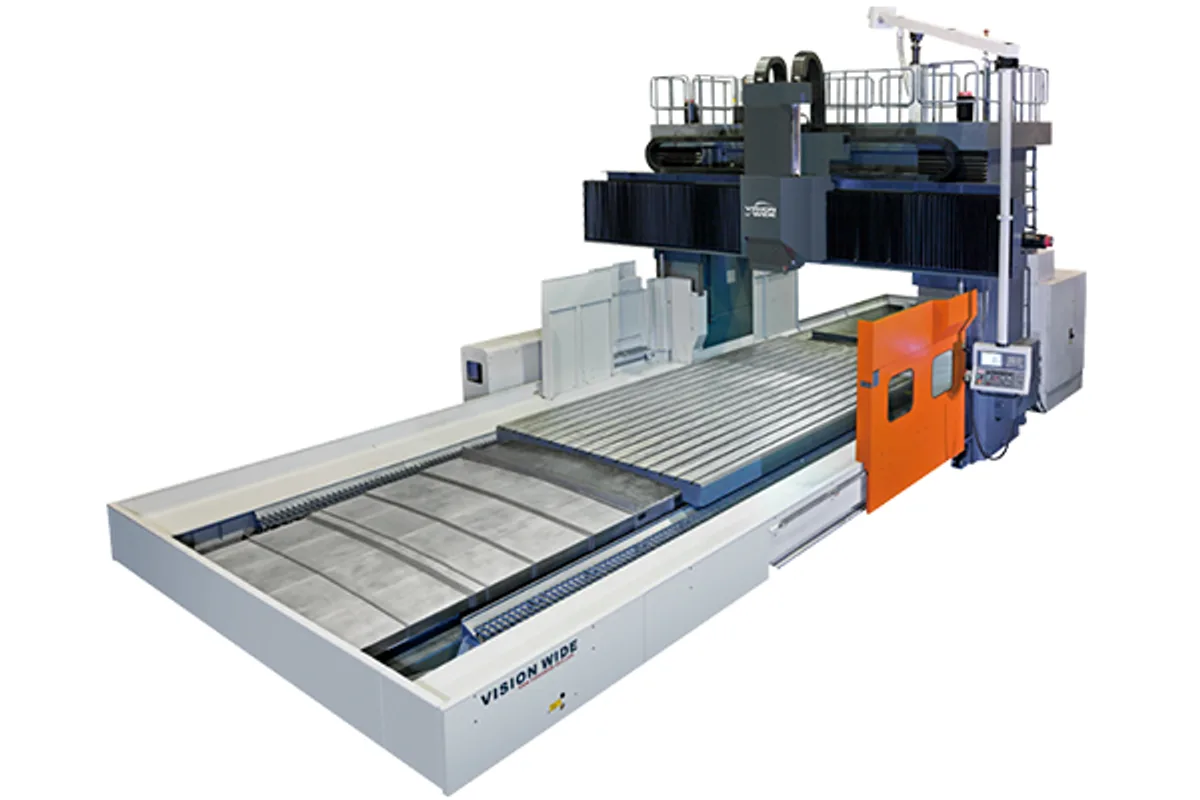

Vision Wide BM-8035 / 8042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-8035 / 8042 cost?
Price estimate
We do not have a price for the Vision Wide BM-8035 / 8042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six control families are named for the Vision Wide BM-8035 / 8042, more than for any other series on the maker's site. FANUC 0iMF Plus is the standard. The optional entry reads FANUC 31iB / HEIDENHAIN TNC 640 / SIEMENS 828D / SIEMENS ONE / MITSUBISHI M80 TypeA / MITSUBISHI M830 Controller.
On a four-linear-axis machine with an attachment head, the control does more than run programs. It synchronises the two motors of the cross rail, manages the head and its tool offsets, and handles a W axis that both positions and cuts. A shop buying a machine of this class usually has operators and post-processors committed to one control, and the breadth of the list means the machine can follow the shop.
Feedback is specified in two tiers. Dual linear scales for the W axis are standard, since the rail has two drives to keep level. X/Y/Z axis linear scale is optional.
The machine has 8,100 mm (318.9 in) of X travel and an 8,000×3,000 mm (315.0×118.1 in) table for 32,000 kg (70,547 lb). Y travel is 3,500 mm, or 4,200 mm on the longer-Y version of the pair with the five-face attachment. Rapids are 8 / 10 / 12 / 2 m/min, and spindle power is 22/26 kW (29.5/34.9 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 8,000×3,000 mm (315.0×118.1 in) |
| Max Table Load | 32,000 kg (70,547 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Wide choice of optional controls beside the standard FANUC 0iMF Plus
- Dual linear scales for the W axis are standard
- 8,000×3,000 mm (315.0×118.1 in) table for 32,000 kg (70,547 lb)
- Movable cross rail driven by dual synchronized servo motors
Limitations
- X/Y/Z axis linear scale is optional
- Rapids of 8 m/min in X and 2 m/min in W
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
Standard: FANUC 0iMF Plus Controller. Optional: FANUC 31iB, HEIDENHAIN TNC 640, SIEMENS 828D, SIEMENS ONE, MITSUBISHI M80 TypeA and MITSUBISHI M830.
02
Dual linear scales for the W axis are standard. X/Y/Z axis linear scale is on the optional accessory list, so scales on the other three axes must be ordered.
03
X travel is 8,100 mm (318.9 in). Y travel is 3,500/ 4,200 mm (137.8/ 165.4 in). Z and W are each 1,000 mm as standard, with longer strokes optional.
04
32,000 kg (70,547 lb) on an 8,000×3,000 mm (315.0×118.1 in) table. The narrower BM-8030 carries 24,000 kg (52,910 lb) on an 8,000×2,450 mm (315.0×96.5 in) table.
