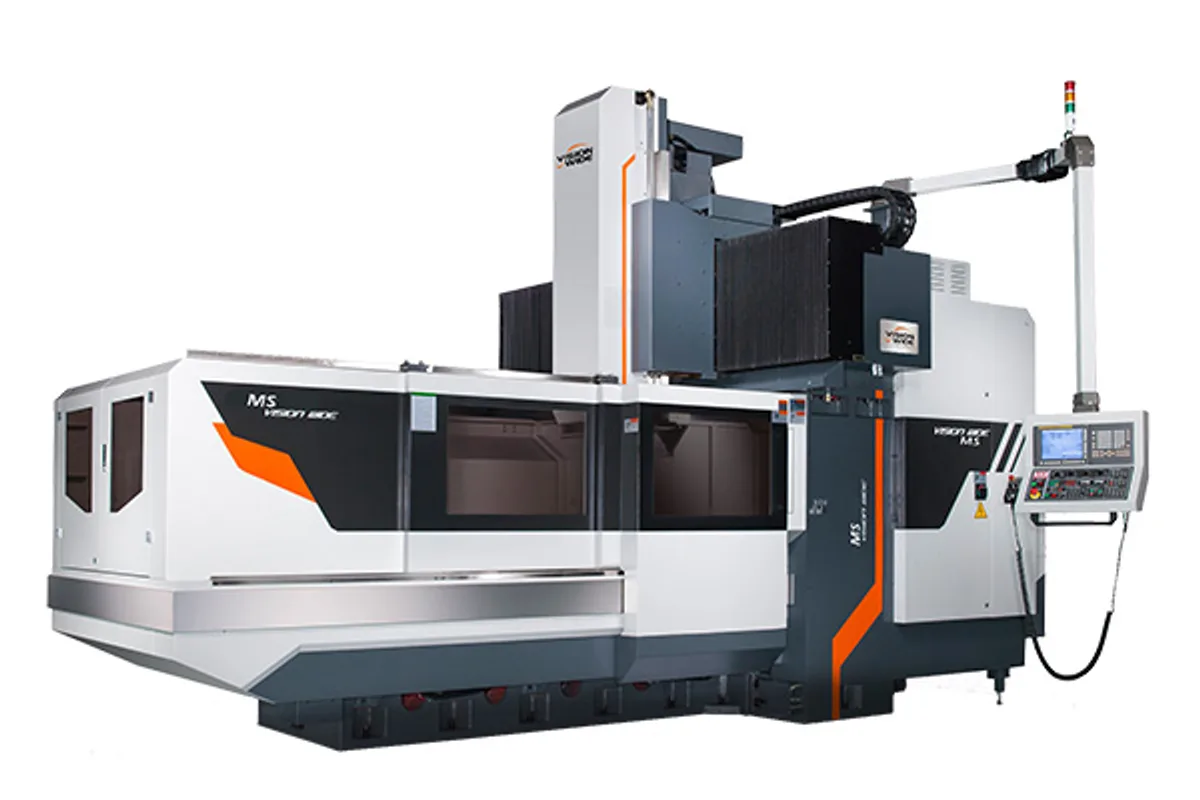

Vision Wide MS-4120
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide MS-4120 cost?
Price estimate
We do not have a price for the Vision Wide MS-4120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MS-4120 has a 4,000x1,800 mm (157.5x70.9 in) table rated for 12,000 kg (26,455 lb), with 4,100 mm (161.4 in) of X travel and 2,000 mm (78.7 in) of Y. It is the largest MS that lists the linear way spindle options in its table.
Two items on the option list go further than the equivalent machining center's. XYZ axis linear scale feedback is one: on a four-metre X axis it removes the effect of ball screw temperature on position. A rotary table is the other. Mounted on the main table, it lets a part be indexed and milled on several faces, which on a machine without a tool changer is the more useful kind of automation.
The spindle rows read as on the rest of the wide frame. The box way head carries the 2-step gear spindle, 6,000 rpm as standard and 4,000 rpm as an option. The linear way head is listed with direct-driven spindles at 10,000 rpm and 12,000 rpm and a built-in spindle at 10,000 rpm, all optional.
Rapid traverse is X/Y/Z：18/24/15 m/min. Power is 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) available. Coolant through the spindle at 20/70 bar is optional for the vertical spindle.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel Box Way | 800 /1,020 mm (31.5 /40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 /1,000 mm (31.5 /39.4 in) (Opt.) |
| Table Size | 4,000x1,800 mm (157.5x70.9 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：18/24/15 m/min |
| Tool Capacity Vertical Tool Change | 32/40 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000x1,800 mm (157.5x70.9 in) table for 12,000 kg (26,455 lb)
- Optional XYZ axis linear scale feedback and rotary table
- Linear way head with 10,000 rpm and 12,000 rpm spindle options
- Y rapid of 24 m/min on roller ways
Limitations
- X rapid of 18 m/min on the four-metre table
- Scales, rotary table and magazine are all options
- Y travel of 2,000 mm (78.7 in)
Best For
Frequently Asked Questions
01
Yes. A rotary table is on the optional accessory list for the MS series, as is XYZ axis linear scale feedback. The page gives no size or load for the rotary table.
02
Box way head: 2-step gear spindle at 6,000 rpm, or 4,000 rpm optional. Linear way head: direct-driven at 10,000 rpm or 12,000 rpm and built-in at 10,000 rpm, all optional.
03
X/Y/Z：18/24/15 m/min. Cutting feed is 1-10,000 mm/min. The three-metre MS-3120 lists 24 m/min for X and Y and 15 m/min for Z.
04
12,000 kg (26,455 lb), on a 4,000x1,800 mm (157.5x70.9 in) table. X travel is 4,100 mm (161.4 in) and Y travel 2,000 mm (78.7 in).
