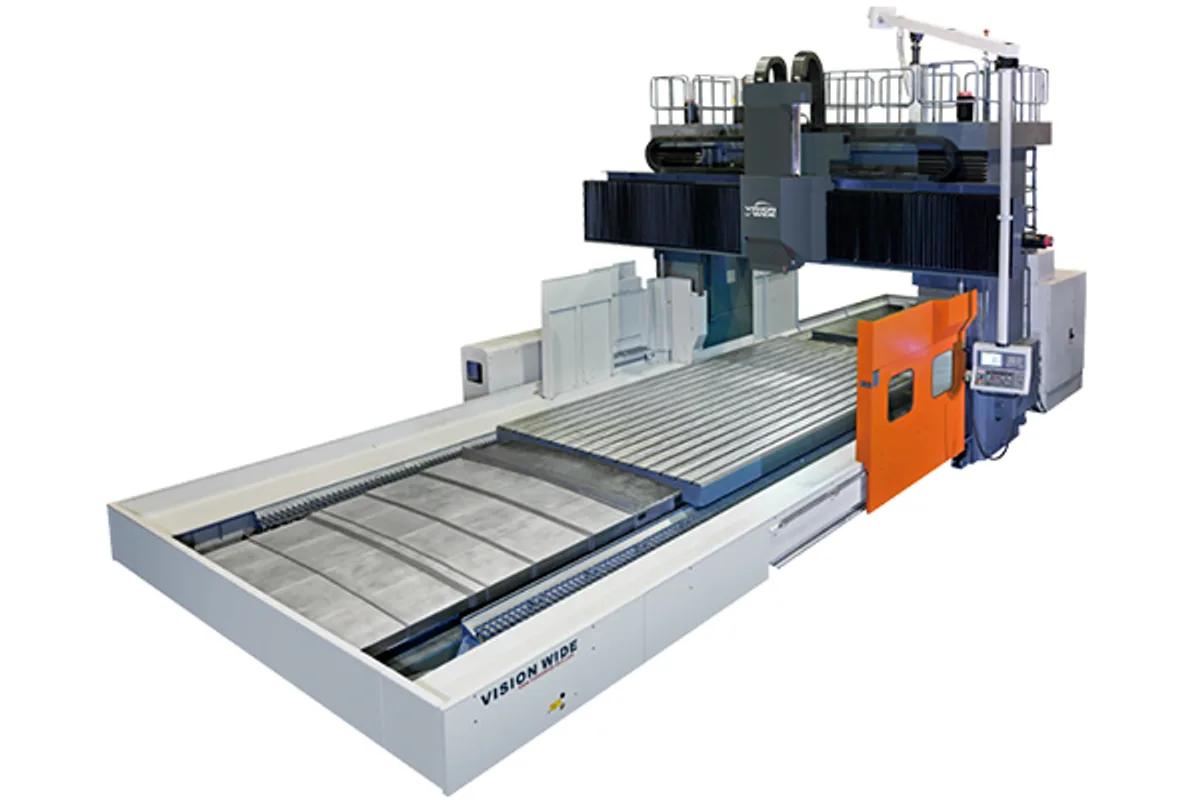

Vision Wide BM-6035 / 6042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-6035 / 6042 cost?
Price estimate
We do not have a price for the Vision Wide BM-6035 / 6042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Spindle selection on the Vision Wide BM-6035 / 6042 takes some care, because the maker's page is not tidy on the point. The standard is clear: a 4,000 rpm 2-step gear type spindle, driven by 22/26 kW (29.5/34.9 hp), or 30/37 kW (40.2/49.6 hp) as an option.
The options are less clear. The specification table lists a direct-driven spindle at 8,000 rpm or 10,000 rpm, both optional. The accessory list offers enclosed box ram spindles in three forms: 4,000 / 6,000 rpm 2-step gear, 8,000 / 12,000 rpm built-in, and a direct driven entry whose first speed is plainly misprinted. The gear spindle row of the table is not printed cleanly either. A buyer wanting anything but the standard spindle should get the speed, power and ram type confirmed in writing.
What the lists do establish is the range of roles: a geared spindle for heavy cuts, or a faster one in an enclosed box ram for finishing.
The machine has 6,100 mm (240.2 in) of X travel and a 6,000×3,000 mm (236.2×118.1 in) table for 28,000 kg (61,728 lb). Y is 3,500 mm, or 4,200 mm on the second model of the pair. The cross rail travels 1,000 mm on W as standard. Rapids are 8 / 10 / 12 / 2 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,100 mm (240.2 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 6,000×3,000 mm (236.2×118.1 in) |
| Max Table Load | 28,000 kg (61,728 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000 rpm 2-step gear type spindle as standard for heavy cutting
- Enclosed box ram options with gear or built-in spindles
- 6,000×3,000 mm (236.2×118.1 in) table for 28,000 kg (61,728 lb)
- 30/37 kW (40.2/49.6 hp) motor option
Limitations
- Spindle option data on the maker's page is inconsistent and partly misprinted
- No spindle torque figure is published
- X rapid of 8 m/min on the table axis
Best For
Frequently Asked Questions
01
A 4,000 rpm 2-step gear type spindle, per the standard accessory list. Spindle power is 22/26 kW (29.5/34.9 hp), with 30/37 kW (40.2/49.6 hp) as an option.
02
The table lists a direct-driven spindle at 8,000 rpm(Opt.)/ 10,000 rpm(Opt.). The accessory list adds enclosed box ram spindles: 4,000 / 6,000 rpm 2-step gear and 8,000 / 12,000 rpm built-in. Confirm the exact option with the maker.
03
6,000×3,000 mm (236.2×118.1 in) and 28,000 kg (61,728 lb). X travel is 6,100 mm (240.2 in); Y travel is 3,500/ 4,200 mm (137.8/ 165.4 in).
04
Z: 1,000 mm standard, with 1,200 mm and 1,400 mm as options. W, the cross rail: 1,000 mm standard, with 1,200 mm and 1,500 mm as options.
