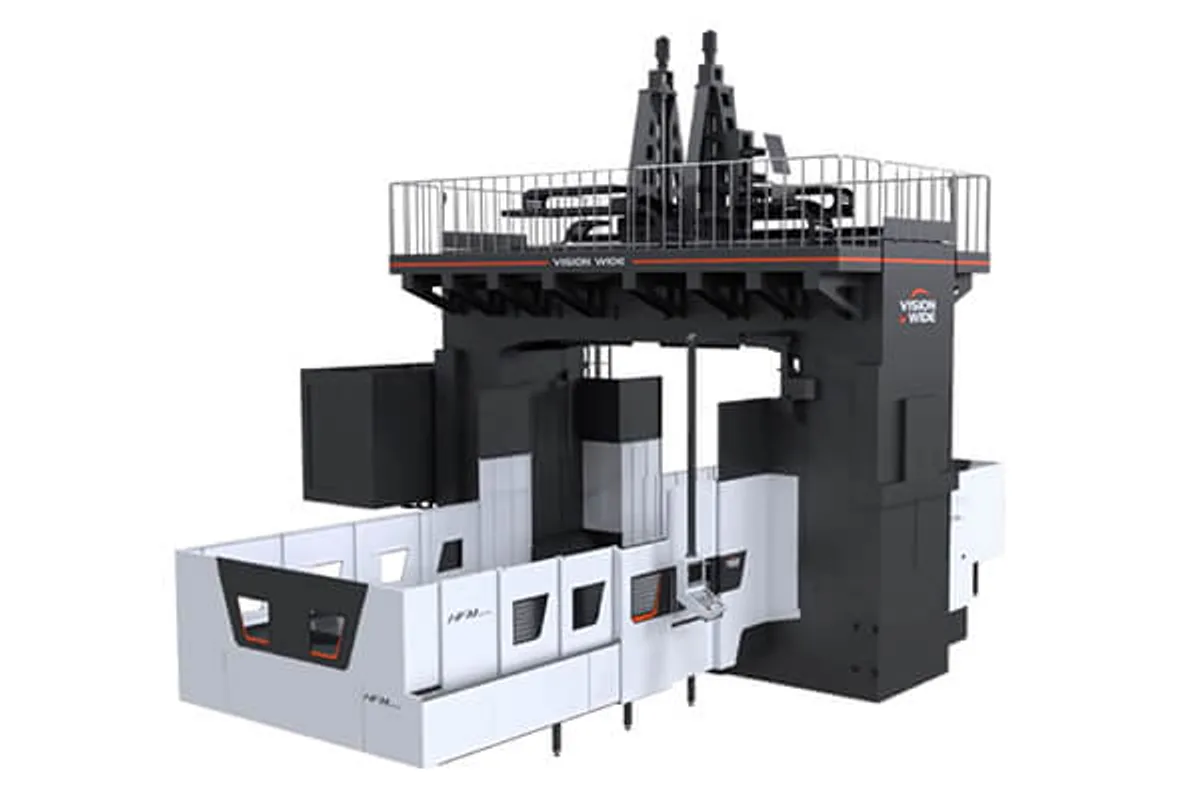

Vision Wide HF-8047M
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max table load
spindle power cont 30 min
How much does the Vision Wide HF-8047M cost?
Price estimate
We do not have a price for the Vision Wide HF-8047M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide HF-8047M pairs an 8,000×3,500 mm (315.0×137.8 in) table with 8,100 mm (318.9 in), 4,700 mm (185.0 in) and 1,500 mm (59.1 in) of X, Y and Z travel. The table takes 32,000 kg (70,547 lb).
What does a hydrostatic head change for the user? Vision Wide says the head adopts a hydrostatic transmission design providing better rigidity, low friction and stability for large Z-axis travel machines. A ram riding on a film of pressurised oil has no stick-slip when it starts to move, so small Z corrections during contouring come out as commanded, and there is no metal contact to wear. The cost is a hydraulic unit that must be kept clean and at temperature. The page says nothing about that unit, its cooling or its service needs, and those belong in the questions put to the maker.
The torque figure is given for the series, 1,500~2,000Nm, and the motor is 22/26 kW (29.5/34.9 hp) as standard.
Spindle speed options run from the standard 4,000rpm gear spindle through a 6,000rpm gear spindle to the direct-driven 10,000 rpm unit in the table. Rapids are 15/15/12 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 4,700 mm (185.0 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 8,000×3,500 mm (315.0×137.8 in) |
| Max Table Load | 32,000 kg (70,547 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000/6,000 rpm (Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1~7,000 mm/min |
| Rapid Traverse Xyz Box Way | 15/15/12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Hydrostatic head design for a long Z axis, per the maker
- 8,000×3,500 mm (315.0×137.8 in) table for 32,000 kg (70,547 lb)
- 4,700 mm (185.0 in) of Y and 1,500 mm (59.1 in) of Z travel
- Spindle options from 4,000rpm gear to 10,000 rpm direct-driven
Limitations
- No information on the hydrostatic unit, its cooling or its upkeep on the page
- Faster spindles are options
- Z rapid of 12 m/min is the slowest of the 15/15/12 m/min set
Best For
Frequently Asked Questions
01
The maker states that the head adopts a hydrostatic transmission design which provides better rigidity, low friction and stability for large Z-axis travel machines. Z travel on this model is 1,500 mm (59.1 in).
02
8,000×3,500 mm (315.0×137.8 in) and 32,000 kg (70,547 lb). The HF-8042M has an 8,000×3,000 mm (315.0×118.1 in) table with the same load rating.
03
The row reads 15/15/12 m/min for X/Y/Z. Cutting feed is 1~7,000 mm/min. Vision Wide's table for this series left a second rapid traverse row without a unit, so only this row is usable.
04
4,000rpm with the standard 2-step gear spindle and 6,000rpm with the optional one. A direct-driven spindle at 10,000 rpm is listed as an option in the specification table.
