Haas Automation Vertical Machining Centers

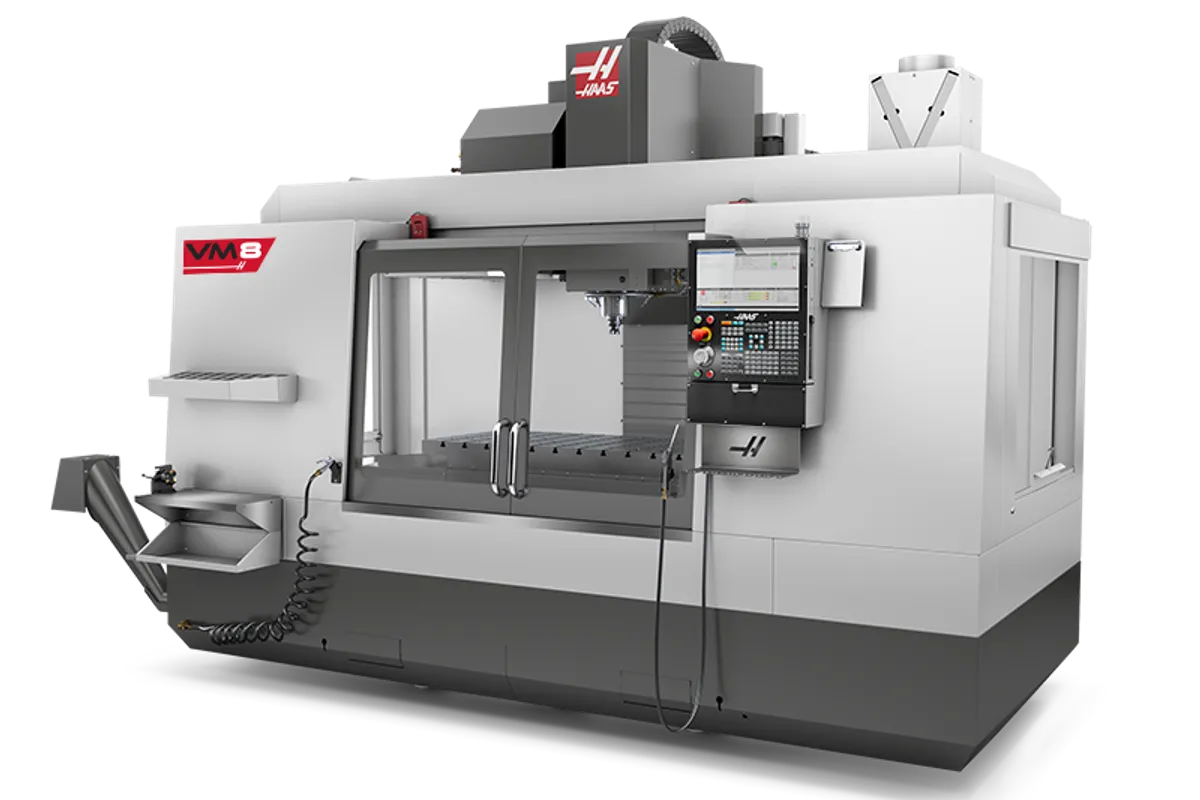

Haas VM-8

$225,000 - $290,000 Updated 2026-03-19

Key Specifications

X Travel

2,032 mm (80 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

12,000 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas VM-8 is a large-envelope mold machine that pushes beyond the VM-6's travel to 2,032 x 813 x 762 mm (80 x 32 x 30 in). That 80-inch X-travel handles the longest automotive molds, full-size structural dies, and industrial tooling that exceeds what most VMC platforms can cover. It is one of the largest vertical mold machines available from any manufacturer at this price point.

The inline direct-drive spindle runs at 12,000 RPM with 22.4 kW (30 hp) and 122 Nm (90 ft-lbf) of torque at 2,000 RPM. Taper options include CT40, BT40, and HSK-A63. The spindle is liquid-cooled for thermal stability during the long finishing cycles that large mold work demands.

The table measures 2,032 x 711 mm (80 x 28 in) and holds 2,268 kg (5,000 lb). Spindle nose to table clearance goes from 102 mm to 864 mm (4 to 34 in). The 30+1 SMTC (50+1 optional) posts 2.8-second tool-to-tool and 3.6-second chip-to-chip averages. Rapid traverse runs at 12.7 m/min (500 ipm) on all axes.

Axis thrust varies: 15,124 N (3,400 lbf) on X, 18,238 N (4,100 lbf) on Y, and 24,910 N (5,600 lbf) on Z. The machine weighs approximately 14,061 kg (31,000 lb), delivering the mass needed for chatter-free cutting across the full travel envelope.

At a base price around $225,000, the VM-8 represents extraordinary value for an 80-inch travel mold machine. Comparable envelope from Okuma, Makino, or DMG Mori starts at $500K and goes well beyond. The trade-off is positioning accuracy, thermal stability, and surface finish quality versus premium brands, but for shops that need the travel at this price, the VM-8 opens up work that would otherwise require outsourcing. Specs derived from Haas VM-6 and VF-series published data.

Full Specifications

Parameter	Value
X-Axis Travel	2,032 mm (80 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Max Tool Length	16.00 in
Table Size	2,032 x 711 mm (80 x 28 in)
Table Load Max	2,268 kg (5,000 lb)
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	12.7 m/min (500 ipm)
Rapid Traverse Y	12.7 m/min (500 ipm)
Rapid Traverse Z	12.7 m/min (500 ipm)
Max Thrust X	4100 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	5600 lbf
Machine Weight	14,061 kg (31,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 100 A
Electrical High	440 VAC 3-phase, 50 A
Travels	S.A.E
X Axis	64.00 in
Y Axis	40.00 in
Z Axis	30.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	12000 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Coolant Jacket
Table	S.A.E
Length	64.0 in
Width	36.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	7 in X and 12 in Y
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	193.0 in x 120.0 in x 130.0 in
Export Crate	193.0 in x 123.0 in x 134.0 in
Machine Weight	24800 lb
Domestic Pallet W Ec Option	193 in x 120 in x 135 in
Export Crate W Ec Option	193 in x 123 in x 139 in
Weight W Ec Option	24800 lb
Domestic Pallet W 501 Smtc	193 in x 120 in x 138 in
Export Crate W 501 Smtc	193 in x 123 in x 142 in
Weight W 501 Smtc	24800 lb
Domestic Pallet W Ec Option 501 Smtc	193 in x 120 in x 143 in
Export Crate W Ec Option 501 Smtc	193 in x 123 in x 147 in
Weight W Ec Option 501 Smtc	24800 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VM-8
Ha5c	VM-8
Ha5c T	VM-8
Ha5c2	VM-8
Ha5c2 T	VM-8
Ha5c3	VM-8
Ha5c3 T	VM-8
Ha5c4	VM-8
Ha5c4 T	VM-8
Ha5cs	VM-8
Hqda5	VM-8
Hrc160	VM-8
Hrc210	VM-8
Hrt100	VM-8
Hrt160	VM-8
Hrt160 2	VM-8
Hrt160sp	VM-8
Hrt160ss	VM-8
Hrt210	VM-8
Hrt210 2	VM-8
Hrt210ht	VM-8
Hrt210m	VM-8
Hrt210sp	VM-8
Hrt210ss	VM-8
Hrt310	VM-8
Hrt310sp	VM-8
Hrt310ss	VM-8
Hrt450	VM-8
Hrt630	VM-8
Hrta5	VM-8
Hrta6	VM-8
Lt260	VM-8
Lt350	VM-8
T5c	VM-8
T5c2	VM-8
T5c3	VM-8
T5c4	VM-8
Th240	VM-8
Th450	VM-8
Tr160	VM-8
Tr160 2	VM-8
Tr200y	VM-8
Tr210	VM-8
Tr310	VM-8
Tr500ss	VM-8
Trt100	VM-8
Trt160	VM-8
Trt210	VM-8
Trt310	VM-8
Trt70	VM-8

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

2,032 mm (80 in) X-travel handles the longest automotive and industrial molds in a single setup
Liquid-cooled 12,000 RPM spindle with HSK-A63 option provides thermal stability for extended finishing cycles
14,061 kg machine mass delivers exceptional vibration damping across the entire travel envelope
5,000 lb table load supports the heaviest large-format mold bases and die assemblies
864 mm spindle nose to table clearance accommodates the tallest molds and deepest cavities
Base price around $225K is less than half what comparable 80-inch travel machines cost from premium brands

Limitations

500 ipm rapids across 80 inches of X mean very significant non-cutting time on large mold traverses
30 hp spindle is unchanged from the smaller VM models; no power increase for the larger envelope
31,000 lb weight demands substantial floor preparation, foundation work, and heavy rigging
Thermal stability and geometric accuracy won't match premium large-envelope mold machines
500 ipm max cutting feedrate limits high-speed machining strategies on finishing passes

Best For

Full-size automotive exterior mold work including bumpers, fascias, and body panels Large industrial stamping dies and forming tools that exceed 64 inches of travel Die casting die shops working on the largest tools for automotive and appliance housings Shops that currently outsource large mold machining and want to bring it in-house affordably Pattern and prototype shops working on full-scale automotive and industrial fixtures

Frequently Asked Questions

01 What does a Haas VM-8 cost?

Base price is approximately $225,000. With through-spindle coolant, probing, high-speed machining software, and the 50+1 tool changer, expect $260,000-$290,000.

02 How does the VM-8 compare to the VM-6?

The VM-8 adds 406 mm (16 in) to X-travel (2,032 vs 1,626 mm) and a 1,000 lb increase in table load (5,000 vs 4,000 lb). The spindle and Y/Z travel are identical. The VM-8 weighs about 7,000 lb more. Price difference is roughly $40K.

03 What size molds can the VM-8 handle?

With 80 x 32 x 30 inches of travel and a 5,000 lb table load, the VM-8 handles molds up to roughly 76 x 30 inches in plan view. That covers nearly all automotive exterior mold halves and most industrial forming tools.

04 Does the VM-8 need special floor preparation?

At 31,000 lb (14,061 kg), the VM-8 requires verified floor loading capacity and likely a prepared foundation pad. The machine's footprint is substantial. Plan rigging carefully with your facilities team and an experienced rigger.
