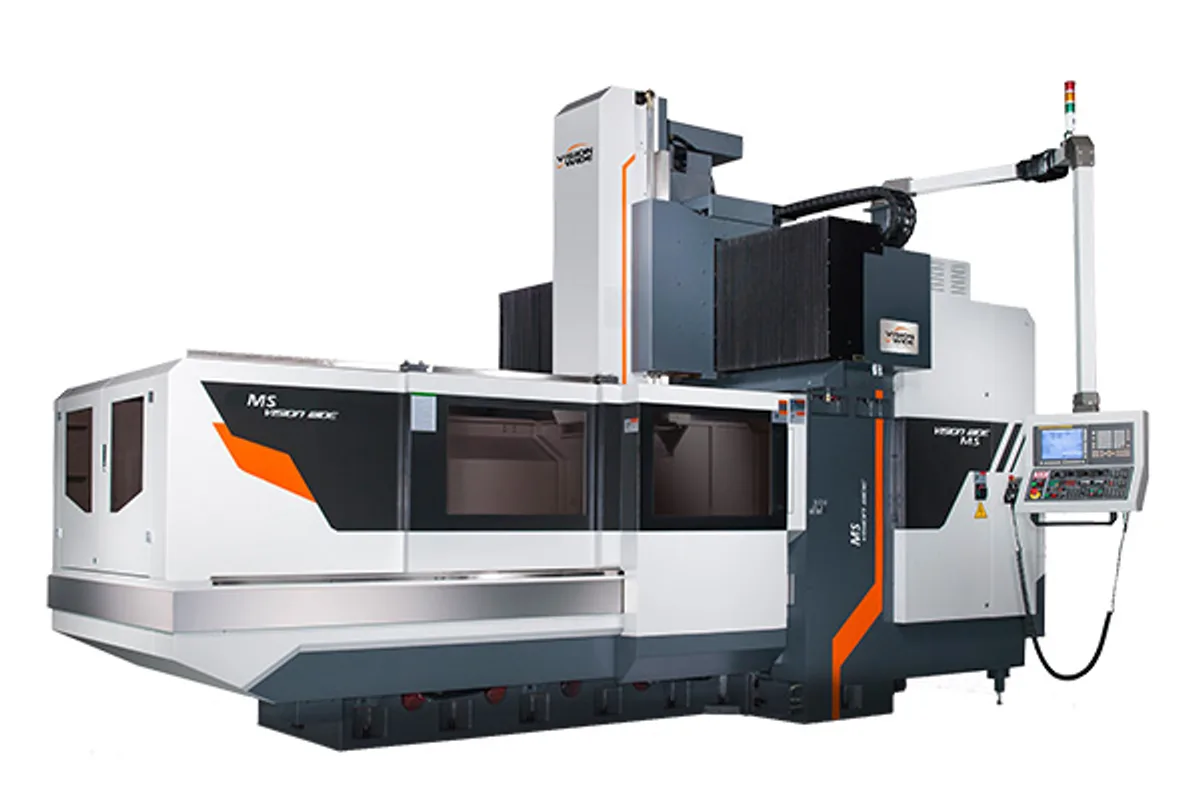

Vision Wide MS-2123
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-2123 cost?
Price estimate
We do not have a price for the Vision Wide MS-2123 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MS-2123 is where the MS milling machines turn toward five-sided work. Y travel is 2,300 mm (90.6 in) over a table only 1,500 mm (59.1 in) wide, and the tool capacity rows in its table refer to floor-standing changers, not the vertical type of the narrower models.
Two are listed. A floor-standing type vertical tool change at 32/40 pcs(Opt.), and a floor-standing type vertical-horizontal tool change at 32, 40 or 60 pcs, all optional. The second kind exists to load a horizontal head as well as the vertical spindle. Against that, the MS accessory lists treat the magazine as an option, so here again the changer has to be pinned down in the quotation.
Only the box way head appears for this model: a 2-step gear spindle at 6,000 rpm, or 4,000 rpm as an option, with 18.5/22 kW (24.8/29.5 hp). Z travel is 800 mm, or 1,020 mm, the stroke the option list ties to an AC head attachment.
X travel is 2,100 mm (82.7 in) and the table, 2,000x1,500 mm (78.7x59.1 in), carries 8,000 kg (17,637 lb). Rapid traverse is X/Y/Z : 24/20/15 m/min. The SF-2123 is the machining center with the same table of figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 2,000x1,500 mm (78.7x59.1 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z : 24/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,300 mm (90.6 in) of Y travel over a 1,500 mm (59.1 in) wide table
- Floor-standing tool changers listed, including a vertical-horizontal type
- Box way Z axis with a geared spindle
- Optional Z axis travel 1,020mm for AC head attachment
Limitations
- Tool changer status is unclear between the table and the accessory lists
- No linear way head or high-speed spindle rows for this model
- Y rapid of 20 m/min, slower than X
Best For
Frequently Asked Questions
01
A floor-standing type vertical tool change at 32/40 pcs(Opt.) and a floor-standing type vertical-horizontal tool change at 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.). The MS accessory lists show the magazine as an option.
02
X is 2,100 mm (82.7 in), Y is 2,300 mm (90.6 in) and Z is 800/1,020 mm (31.5/40.2 in)(Opt.) on the box way head.
03
Both have a 2,000x1,500 mm (78.7x59.1 in) table for 8,000 kg (17,637 lb). The MS-2116 has 1,600 mm (63.0 in) of Y; the MS-2123 has 2,300 mm (90.6 in) and lists floor-standing tool changers and only the box way head.
04
X/Y/Z : 24/20/15 m/min, with a cutting feed range of 1-10,000 mm/min. The Y axis is the slower of the two horizontal axes.
