Vision Wide MHN-8040 / MHN-8047
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MHN-8040 / MHN-8047 cost?
Price estimate
We do not have a price for the Vision Wide MHN-8040 / MHN-8047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MHN-8040 / MHN-8047 puts 22/26 kW (29.5/34.9 hp) into a table that carries 32,000 kg (70,547 lb), and offers one step beyond it: 30/37 kW (40.2/49.6 hp).
How the power is used depends on the head. The standard is a box way head on a single ballscrew, with a 2-step gear spindle at 4,000 rpm and 920 mm of Z travel, or 1,020 mm. A 6,000 rpm box way gear spindle is the first option. The second group is the linear way or enclosed box ram head on dual ballscrews, with Z travel of 1,000 mm, 1,200 mm or 1,400 mm, gear spindles of 4,000 or 6,000 rpm, or a direct driven spindle listed at 10,000 rpm.
For a milling machine of this weight the first choice is nearly always right. Low speed, two gear ranges and box ways are what a large face mill in cast steel wants. The long-stroke heads are for tall parts, at a Z rapid of 12 m/min with the enclosed ram against 15 m/min.
The table is 8,000×3,500 mm (315.0×137.8 in). X travel is 8,100 mm (318.9 in), and Y travel 4,000 mm (157.5 in) or 4,700 mm (185.0 in). X/Y rapid is 8 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 4,000/ 4,700 mm (157.5/ 185.0 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 8,000×3,500 mm (315.0×137.8 in) |
| Max Table Load | 32,000 kg (70,547 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 8 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 22/26 kW (29.5/34.9 hp) standard, 30/37 kW (40.2/49.6 hp) optional
- 8,000×3,500 mm (315.0×137.8 in) table for 32,000 kg (70,547 lb)
- Box way head with 2-step gear spindle as standard
- Z travel to 1,400 mm with the optional heads
Limitations
- No spindle torque figure is published
- Enclosed box ram Z rapid of 12 m/min
- X/Y rapid of 8 m/min and cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
Standard: box way head with a 4,000rpm 2-step gear spindle. Optional: a 6,000 rpm box way gear spindle, or linear way and enclosed box ram heads with 4,000/6,000 rpm gear spindles or a direct driven spindle.
02
22/26 kW (29.5/34.9 hp) as standard, with 30/37 kW (40.2/49.6 hp) as an option. No torque figures are given for either motor.
03
Table 8,000×3,500 mm (315.0×137.8 in), load 32,000 kg (70,547 lb). X travel 8,100 mm (318.9 in), Y travel 4,000/ 4,700 mm (157.5/ 185.0 in).
04
15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram. X/Y rapid is 8 m/min and cutting feed 1-7,000 mm/min.
More from Vision Wide
Other Vertical Machining Centers (VMC)

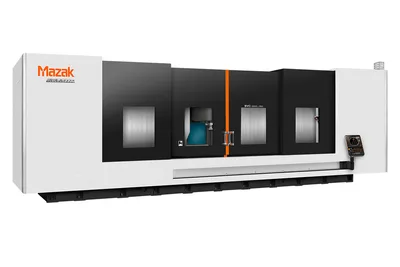

Mazak SVC
