Vision Wide MS-2116

Q: How much does the Vision Wide MS-2116 cost?

The price estimate for the Vision Wide MS-2116 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-2116#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

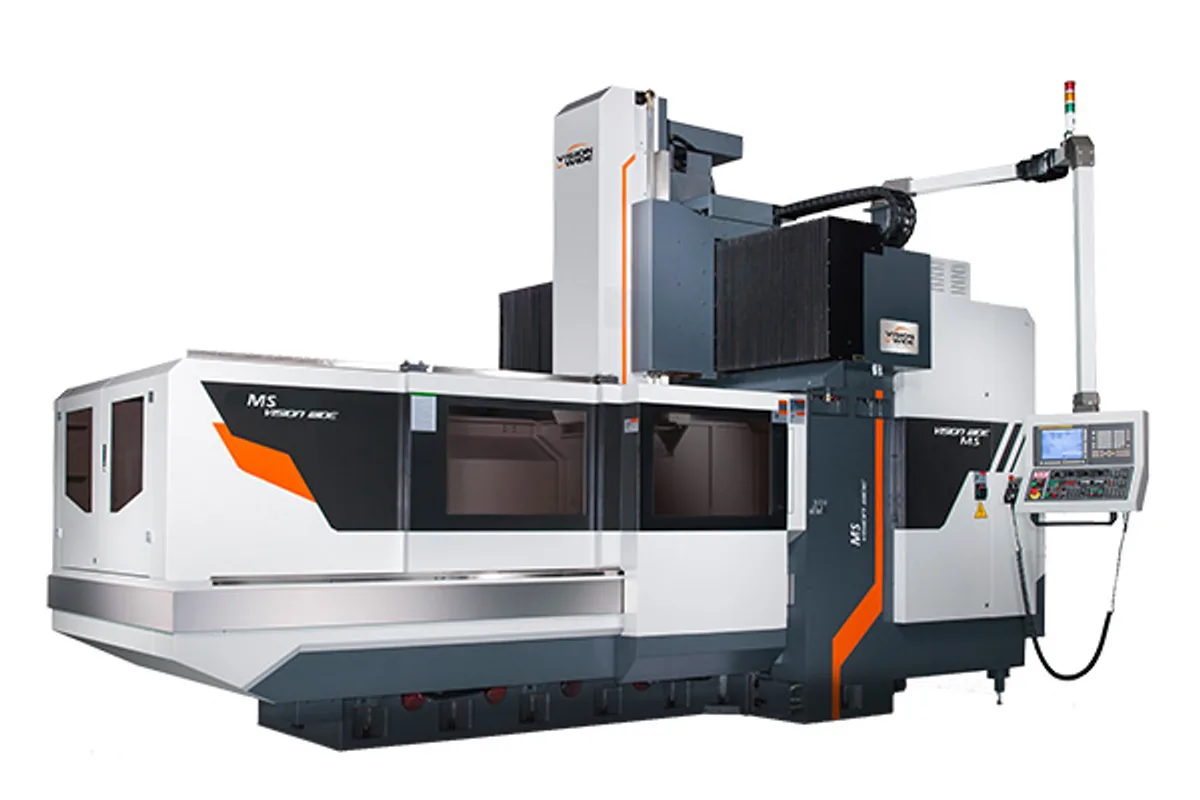

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,000x1,500 mm (78.7x59.1 in)

x axis travel

2,100 mm (82.7 in)

y axis travel

1,600 mm (63.0 in)

z axis travel box way

800 / 1,020 mm (31.5 / 40.2 in) (Opt.)

z axis travel linear way

800 / 1,000 mm (31.5 / 39.4 in) (Opt.)

max table load

8,000 kg (17,637 lb)

How much does the Vision Wide MS-2116 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-2116 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide MS-2116 is a portal milling machine, the smallest of the MS series. It shares its figures with the SF-2116 machining center, a 2,000x1,500 mm (78.7x59.1 in) table for 8,000 kg (17,637 lb) with 2,100 mm (82.7 in) of X and 1,600 mm (63.0 in) of Y, but it is sold as a milling machine.

The practical meaning of that is in the accessory lists. On the SF, a 32 tools magazine with arm type ATC is standard equipment. On the MS, the standard list has no magazine; a 32/40/60 tools magazine with arm type ATC appears among the options. The specification table still carries a tool capacity row, 32/40 pcs(Opt.), so the quotation should state plainly whether a changer is included.

A machine without a changer suits work done with one or two tools over long cycles: facing and squaring plates, milling mold bases to size, long finishing passes with a single cutter. For such jobs a magazine is unused weight.

The rest is a full-size bridge machine. The spindle is a 6,000rpm 2-step gear type on a box way Z axis with 18.5/22 kW (24.8/29.5 hp). Rapids are 24 m/min in X and Y and 15 m/min in Z, and cutting feed is 1-10,000 mm/min. The control is a FANUC 0iMF PLUS.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	1,600 mm (63.0 in)
Z Axis Travel Box Way	800 / 1,020 mm (31.5 / 40.2 in) (Opt.)
Z Axis Travel Linear Way	800 / 1,000 mm (31.5 / 39.4 in) (Opt.)
Table Size	2,000x1,500 mm (78.7x59.1 in)
Max Table Load	8,000 kg (17,637 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Spindle Speed Linear Way Direct Driven	10,000 rpm(Opt.)/ 12,000 rpm(Opt.)
Spindle Speed Linear Way Built in	10,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	XY：24 m/min Z：15 m/min
Tool Capacity Vertical Tool Change	32/40 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Bridge-type milling machine with 8,000 kg (17,637 lb) table load
6,000rpm 2-step gear type spindle with 18.5/22 kW (24.8/29.5 hp)
Rapids of 24 m/min in X and Y
Tool magazine can be added as an option

Limitations

No tool magazine on the standard accessory list
The table's tool capacity row and the accessory lists do not agree on what is standard
X travel of 2,100 mm (82.7 in) is the shortest in the series

Best For

Facing and squaring plates and mold bases Long single-tool milling cycles Parts up to 8,000 kg (17,637 lb)

Frequently Asked Questions

01 What is the difference between the Vision Wide MS-2116 and the SF-2116?

Their specification tables match. The SF-2116 is a machining center with a 32 tools magazine as standard. The MS-2116 is a portal milling machine whose standard list has no magazine; a 32/40/60 tools magazine with arm type ATC is an option.

02 Does the MS-2116 have a tool changer?

Not on the standard accessory list. A 32/40/60 tools magazine with arm type ATC is optional. The table lists 32/40 pcs(Opt.) under vertical type tool change, so ask the maker what the quoted machine includes.

03 What are the MS-2116 travels and table?

X 2,100 mm (82.7 in), Y 1,600 mm (63.0 in), Z 800 mm with longer strokes optional. The table is 2,000x1,500 mm (78.7x59.1 in) and carries 8,000 kg (17,637 lb).

04 What spindle is standard on the MS-2116?

A 6,000rpm 2-step gear type spindle with a box way Z axis. Power is 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) as an option.
