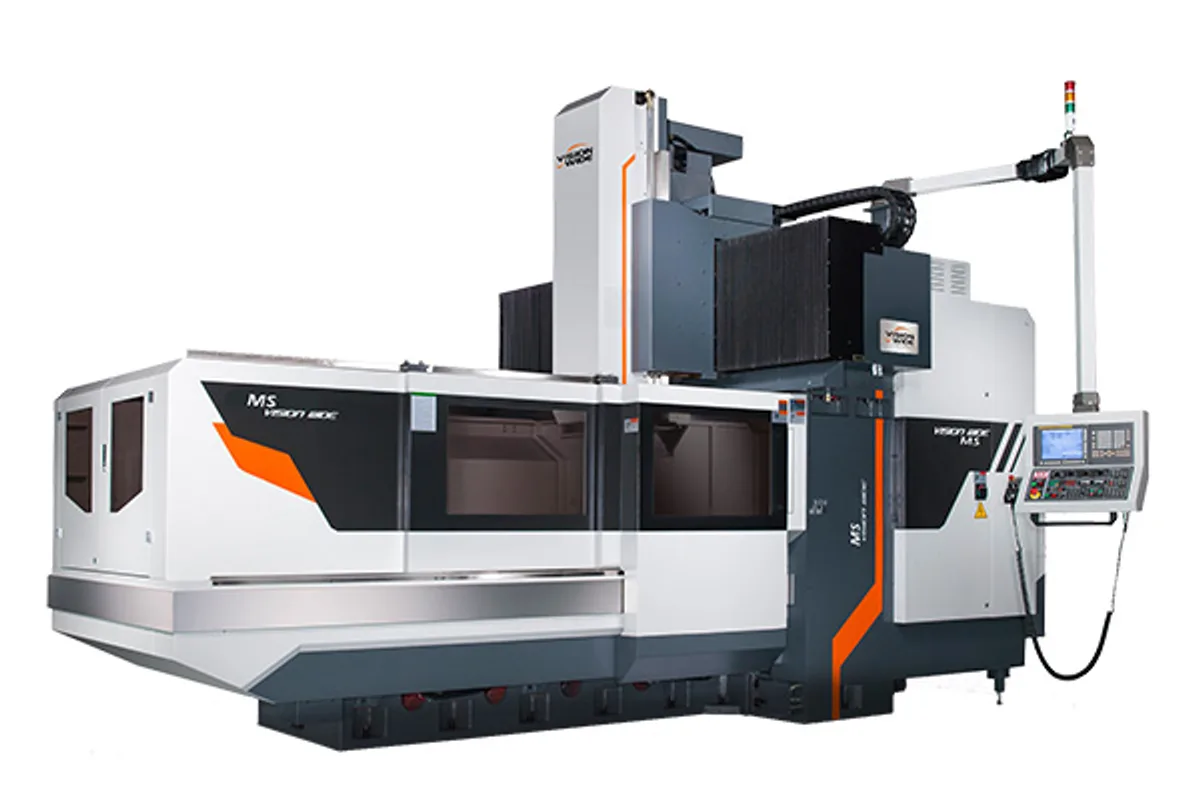

Vision Wide MS-2120
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide MS-2120 cost?
Price estimate
We do not have a price for the Vision Wide MS-2120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Roller ways carry the X and Y axes of the Vision Wide MS-2120. Vision Wide calls them heavy duty roller ways and credits them with low friction and high stiffness.
Roller guides differ from the ball type in a way that matters for milling. A roller touches its rail along a line, a ball at a point, so for the same size a roller guide deflects less under load and carries more. It keeps the low friction of a rolling guide, which is what allows 24 m/min rapids in X and Y, while moving some way toward the stiffness that heavy cuts need. The Z axis, where the cutting thrust comes back up the head, is a box way on the standard build.
The MS-2120 has a nearly square envelope: 2,100 mm (82.7 in) of X and 2,000 mm (78.7 in) of Y, over a 2,000x1,800 mm (78.7x70.9 in) table that carries 8,000 kg (17,637 lb).
The standard spindle is a 6,000rpm 2-step gear type with 18.5/22 kW (24.8/29.5 hp). Z travel is 800 mm, with 1,020 mm optional on the box way head. As a milling machine it has no magazine on the standard list; one can be added in 32, 40 or 60 tool sizes.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel Box Way | 800 /1,020 mm (31.5 /40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 /1,000 mm (31.5 /39.4 in) (Opt.) |
| Table Size | 2,000x1,800 mm (78.7x70.9 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | XY：24 m/min / Z：15 m/min |
| Tool Capacity Vertical Tool Change | 32/40 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Heavy duty roller ways on X and Y
- Near-square travels of 2,100 mm (82.7 in) and 2,000 mm (78.7 in)
- 2,000x1,800 mm (78.7x70.9 in) table for 8,000 kg (17,637 lb)
- Box way Z axis on the standard head
Limitations
- Magazine is an option, in 32, 40 or 60 tool sizes
- 8,000 kg (17,637 lb) table load is the lowest in the series
- Standard Z travel of 800 mm
Best For
Frequently Asked Questions
01
Heavy duty roller ways on the X-Y axis, which the maker says combine low friction and high stiffness. The standard spindle head runs on a box way Z axis.
02
2,100 mm (82.7 in) in X and 2,000 mm (78.7 in) in Y. Z is 800 mm, or 1,020 mm on the box way head and 1,000 mm on the linear way head as options.
03
The MS-2116 has 1,600 mm (63.0 in) of Y and a 2,000x1,500 mm (78.7x59.1 in) table. The MS-2120 has 2,000 mm (78.7 in) of Y and a 2,000x1,800 mm (78.7x70.9 in) table. Both carry 8,000 kg (17,637 lb).
04
The FANUC 0iMF PLUS controller is standard. XYZ axis linear scale feedback and a rotary table are among the options.
